7 USB 3.1 Gen1 Data Ports and 1 Dedicated Type-A Charging Port

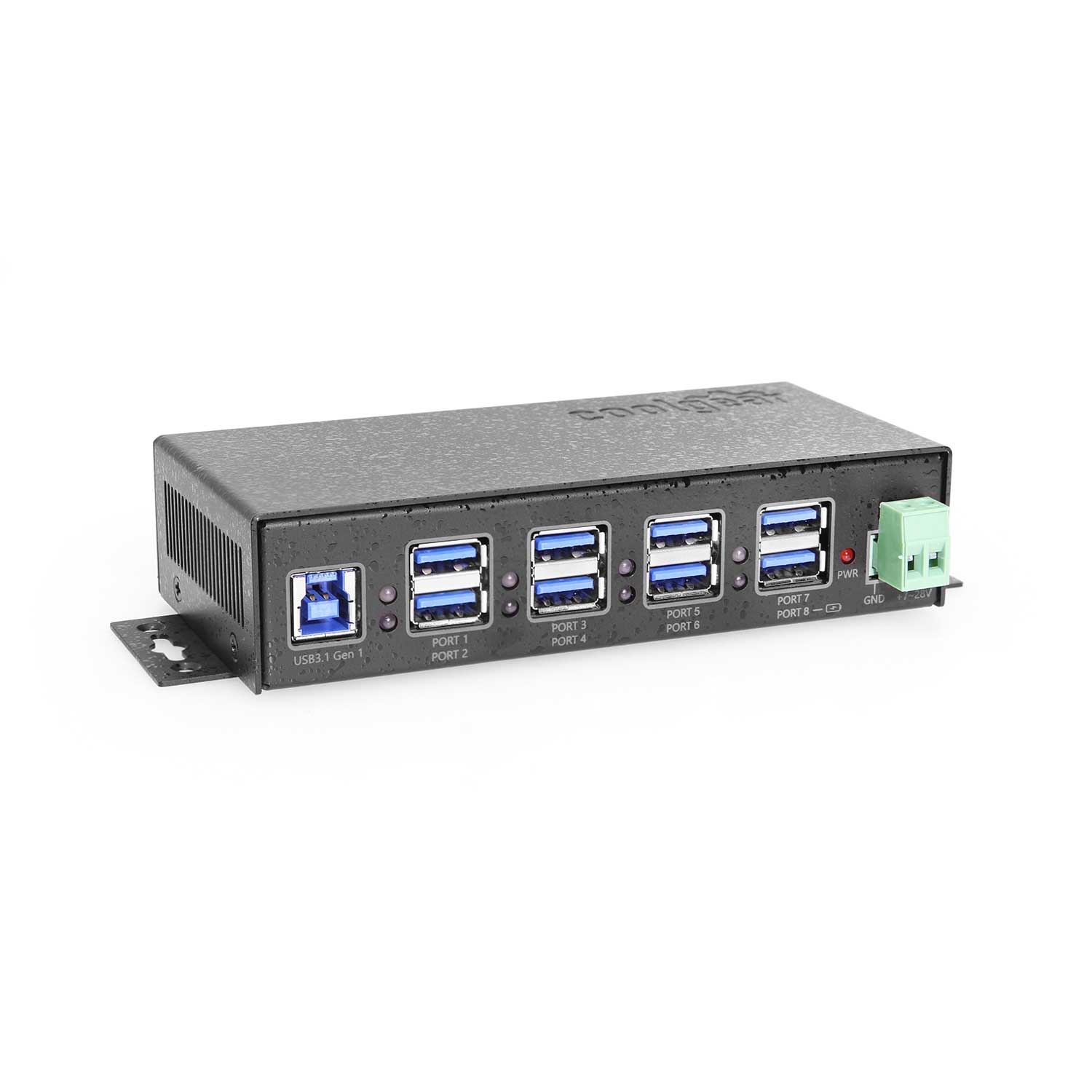

Coolgear’s new CG-8PUAU31H unique design USB 3.1 Type-A 8 Port Hub provides seven (7) Type-A data ports and one Type-A charging port. 7 ports support QC2.0/3.0 quick charging and BC1.2 battery charging standards. Port eight supports up to 25 watts charging for Apple and Samsung devices.

Each of the USB 3.1 Gen1 seven data ports supports 5Gbps data transfer and up to 1.5A of power output. Operating USB equipment such as printers, scanners, portable drives, virtual reality gear and others are not a problem. The remaining port does not transmit data, it is charge only.

The CG-8PUAU31H supports self-power through a 2-wire plug from an external 12V power supply (sold separately) which supports the single port #8 25W charging.

USB 3.1 Type-A Hub Features

• Supports systems with USB Type-A interface
• Provides (7) Type-A downstream data ports supporting 5Gbps data speeds
• Supports 15KV ESD surge protection for each port
• Supports +7 – 28V DC wide range self-power input through 2-pin terminal plug
• Is a self-powered hub with a 12V external power supply (sold Separately)
• Compliant with USB 3.1 Gen1 Specifications 5Gbps data speeds
• One 25W dedicated charging port / 7 USB-A data ports
• Compliant with QC2.0/3.0 Quick Charging specifications
• Supports AppleFast and Samsung Charging
• Compliant with battery charging specifications 1.2
• Led indicators each port
• Item Dimensions: 5.46in(L)(6.50 w/ears) x 2.589in(W) x 1.28in(H)
• Item weight: 12.1 oz (.756lbs.)
• Flat surface mountable

Product Specifications

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE

Optional Accessories

The 7 + 1 port USB 3.1 USB Hub has certain accessories that work with it. These hub accessories are what you can order if needed for this hub.

12V 6A Power Supply for 2 Pin USB Hub Power A Configuration

12V 6A External Power Supply 2 pin configuration A for Coolgear USB 2.0 and USB 3.0 commercial or industrial metal hubs. The power supply is…

Model# 12V7A2P-A

$29.95

In stock
