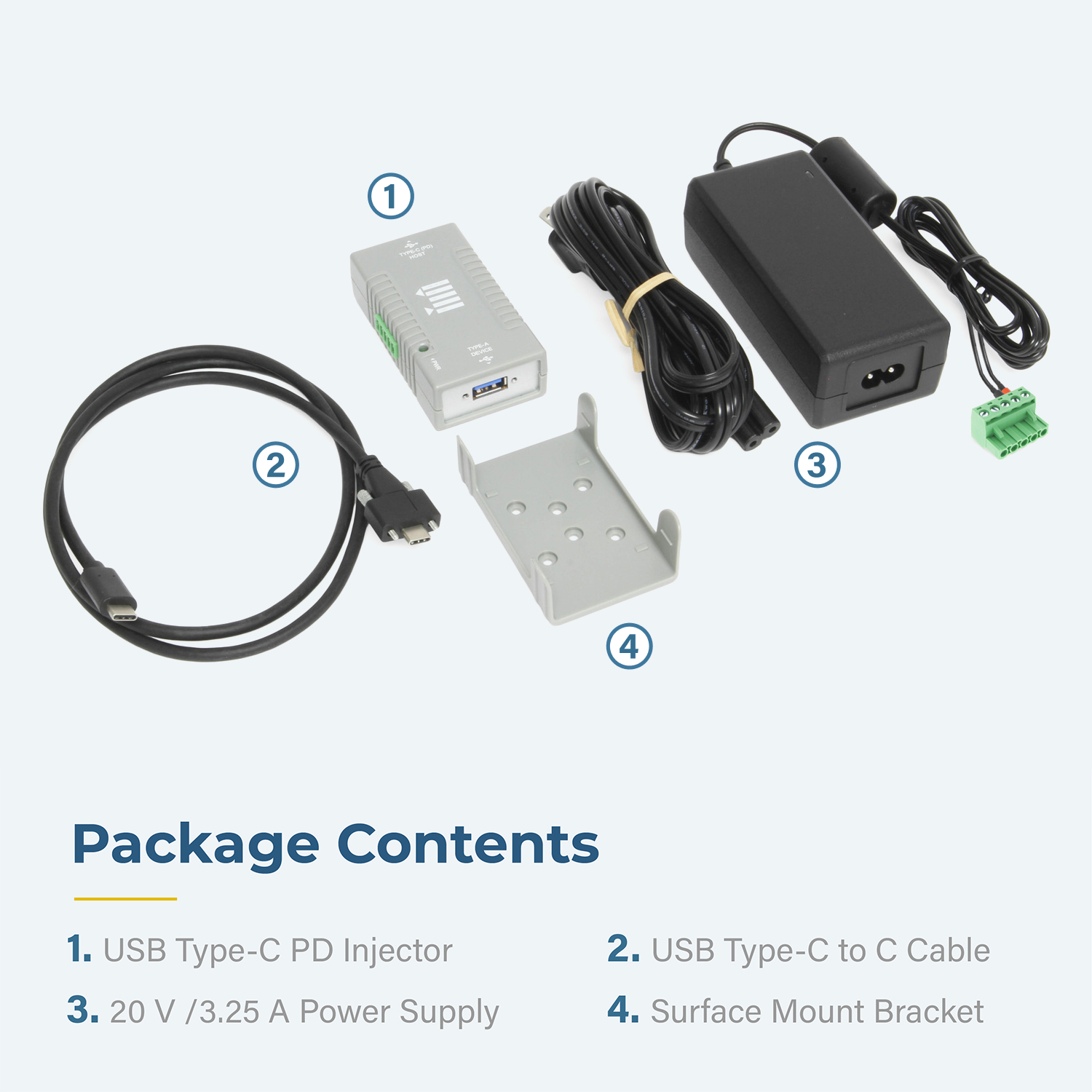

USB-C to USB-A PD Adapter Package Contents

View Product Documentation, CADs, & Downloads

USB-C to USB-A Power Delivery Adapter w/Mounting Kit

Name: USB-C to USB-A Power Delivery Adapter w/Mounting Kit
Brand: CoolGear
SKU: CG-UCUSBPD
Price: 109.95 USD
Availability: InStock

Model No. CG-UCUSBPD

Compact USB-C to A Power Delivery

Backward compatible with USB 3.0 and 1.1, the USB 3.1 Power delivery adapter is compliant with Gen1 and 2 of the USB 3.1 specification. The USB-C power delivery adapter acts as a PD source for the upstream USB-C port.

Compliant with USB 3.1 Gen1 and Gen2
Supports USB PD (power delivery), Works as a Source
DC Power Input: 20V DC, from DC Jack or Terminal Blocks
Supports Source PDO’s (Power Data Object): 20V/5A, 14.5V/2A, 12V/3A and 5V/3A

*20V/5A profile will only enumerate with an emarker cable capable of this power rating(sold separately), 65watt max Output DC adapter included. Higher output DC adapter must be purchased separately to attain higher than 65 watt output rating.

* Notice: This product does NOT support USB-C DisplayPort (DP/Video Alt Mode) and is intended for data and power functionality only.

$109.95

Bulk Pricing

Model No. CG-UCUSBPD

In stock

Need some help? Contact us.

Product Documents

Product Documentation

Quick Links:

Description

USB-C Power Delivery is Here!

USB-C to USB-A Power Delivery Adapter is USB 3.1 Gen1/2 compliant and is backward compatible with USB 2.0/1.1. It acts as a PD source (power delivery source) for its upstream connector that works with USB 3.1 or USB 2.0 devices. The USB-C upstream port is fully compliant with a USB 3.1 and USB PD capable host.

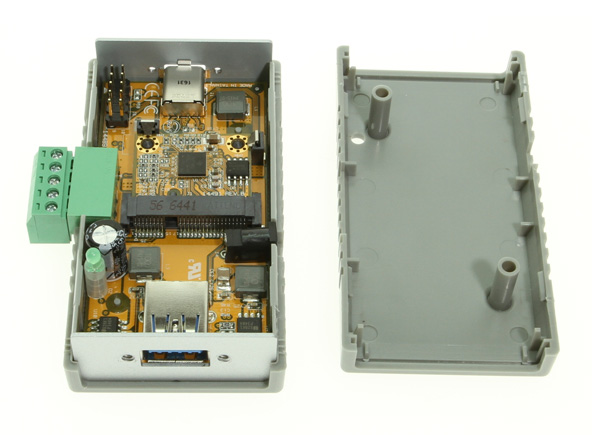

USB-C Power Delivery Adapter Features

Compliant with USB 3.1 Gen1 and Gen2

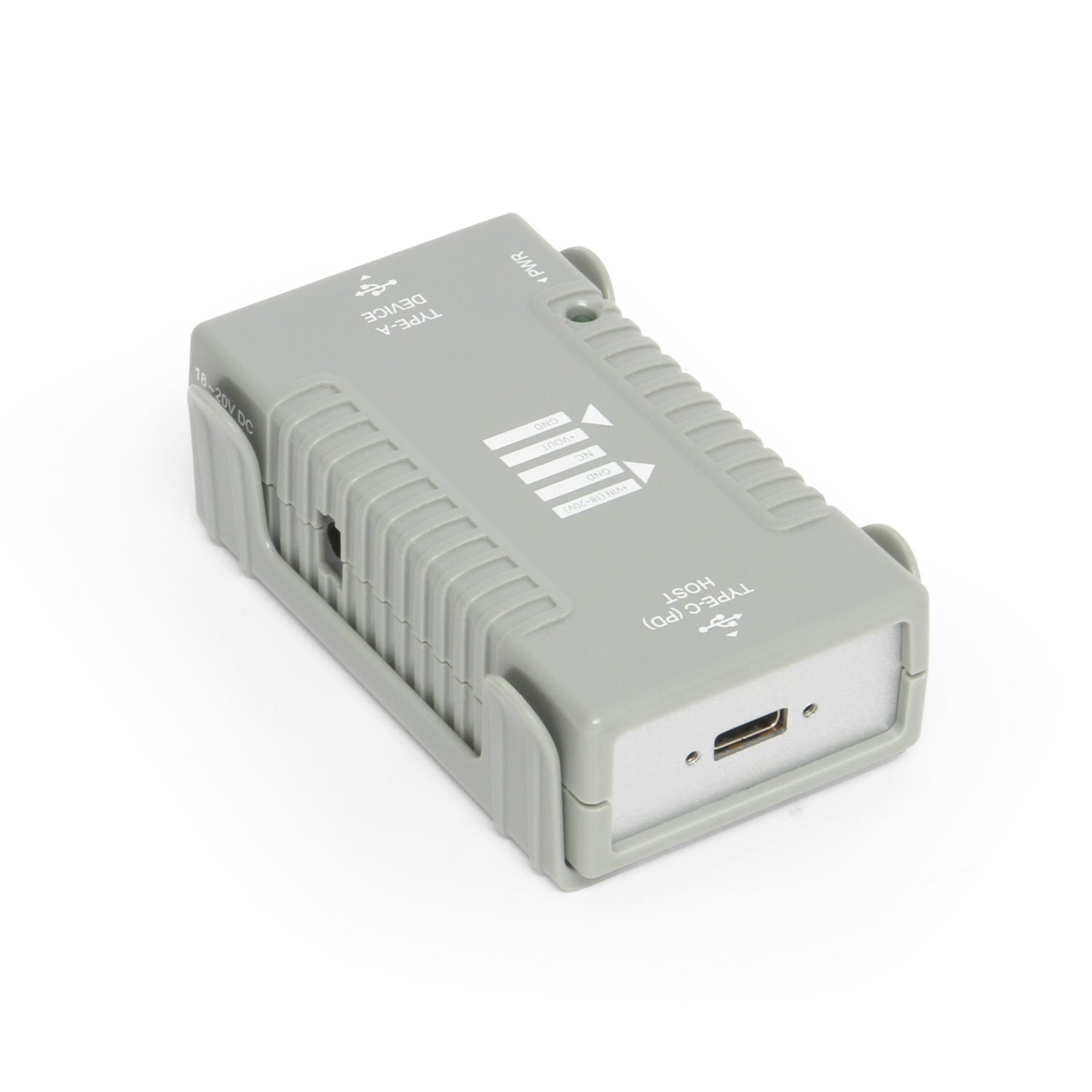

One upstream Type-C Connector Supports PD Capable Host

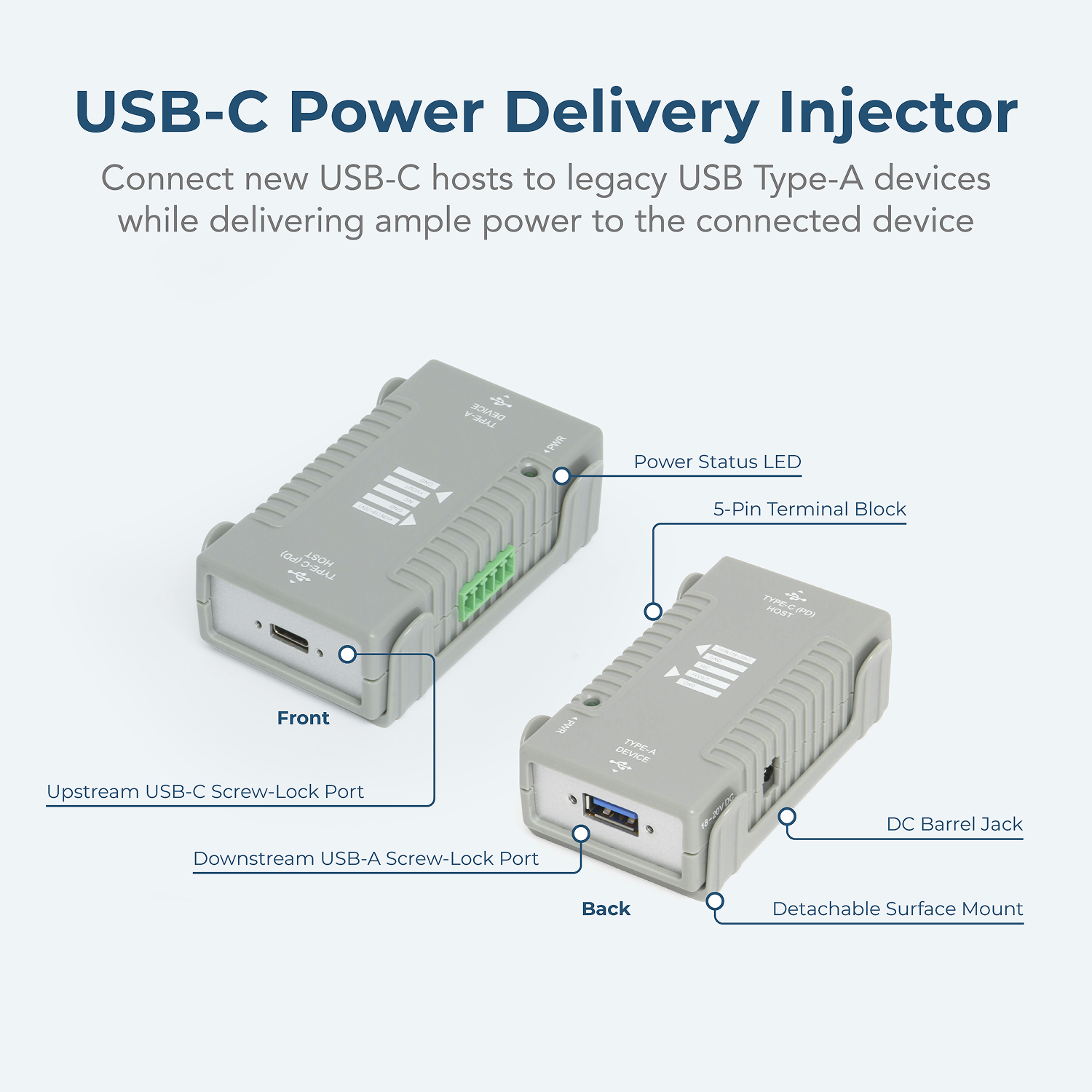

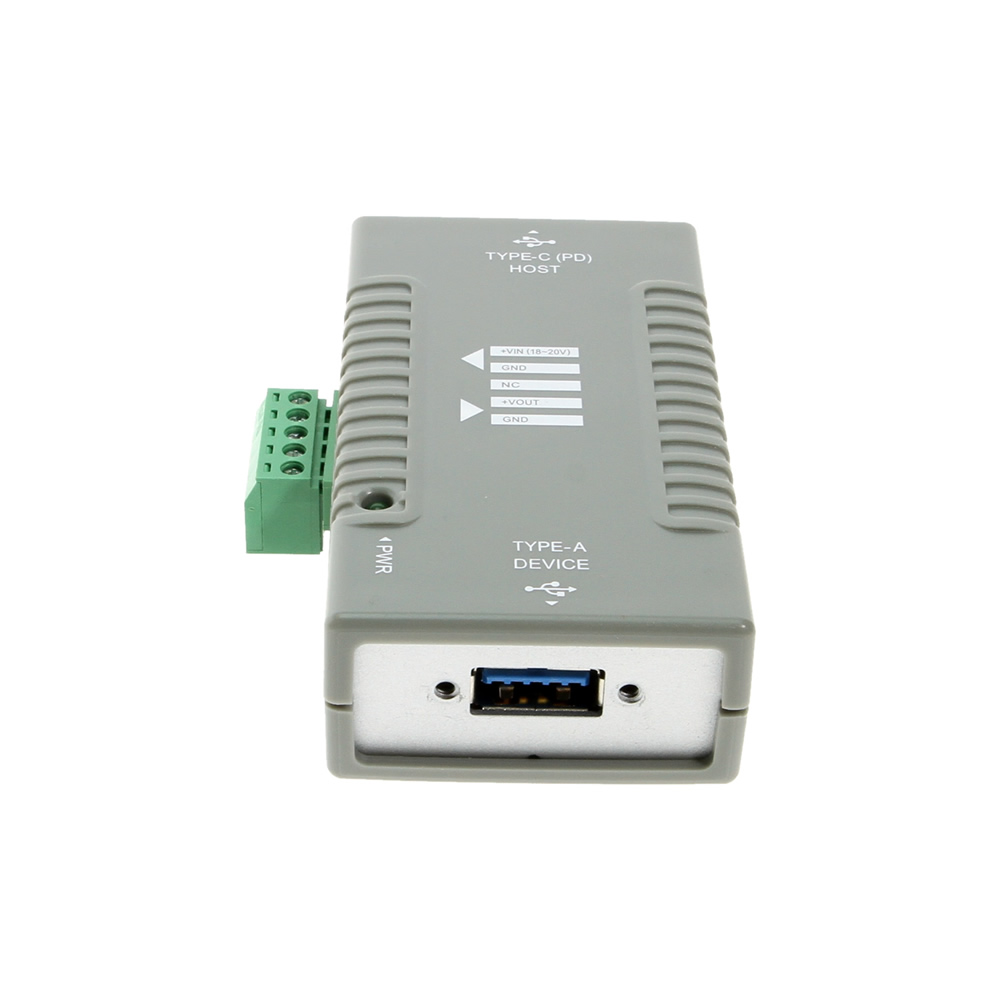

One Downstream Type-A USB 3.1 Gen1/Gen2 Connector for Devices
Supports USB PD (power delivery), Works as a Source

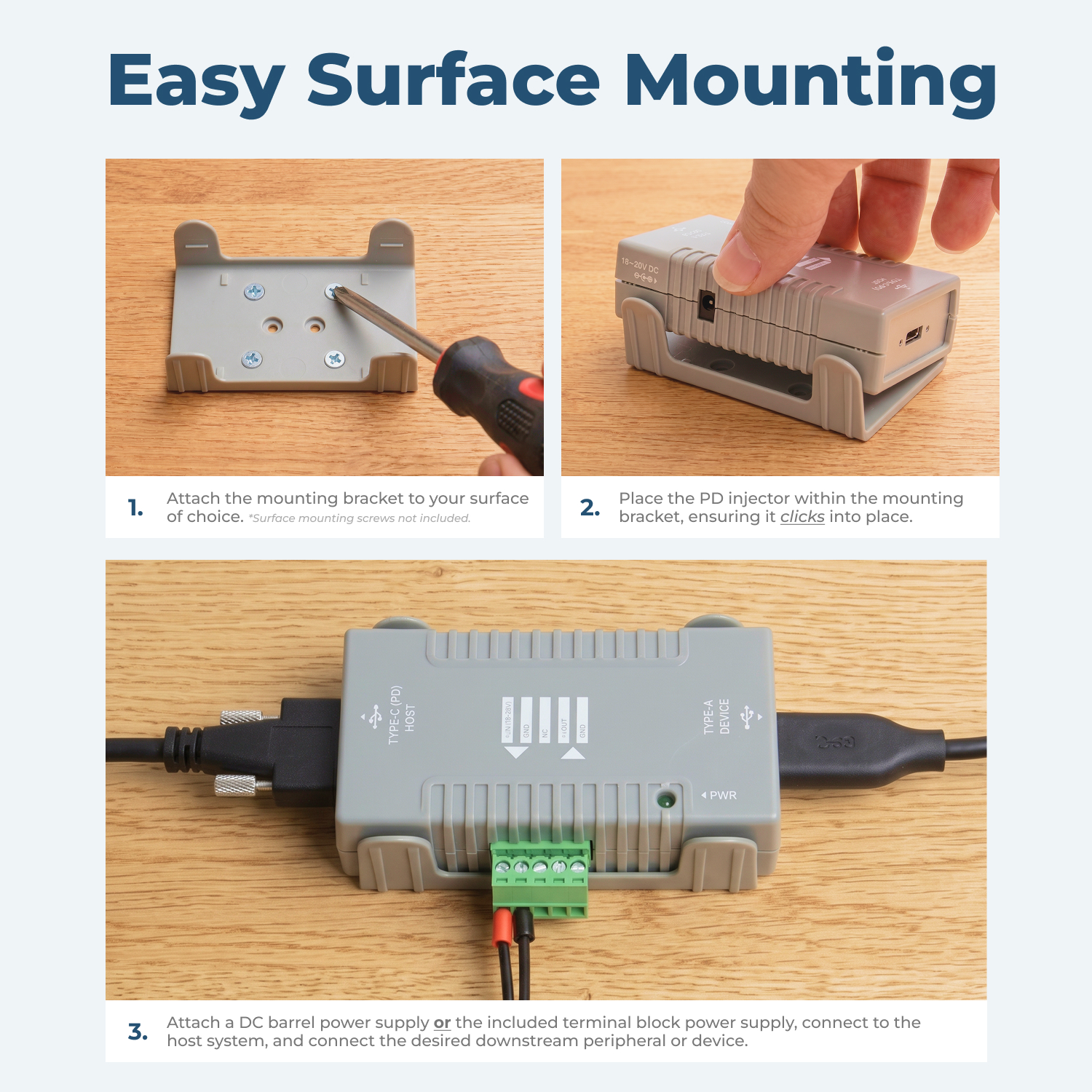

Detachable Mounting Kit for Wall or DIN Rail Mounting Options (DIN Rail clip not included)
Supports Type-C and Type-A Screw Lock USB Cables
DC Power Input: 20V DC, from DC Jack or Terminal Blocks
Provides Negotiated Power Output to Terminal Blocks
Detection of USB Cable connector Attached, Orientation and Role Detection
Assign CC and VCONN Pins
Supports Source PDO’s (Power Data Object): 20V/5A, 14.5V/2A, 12V/3A and 5V/3A

Input and Output Power

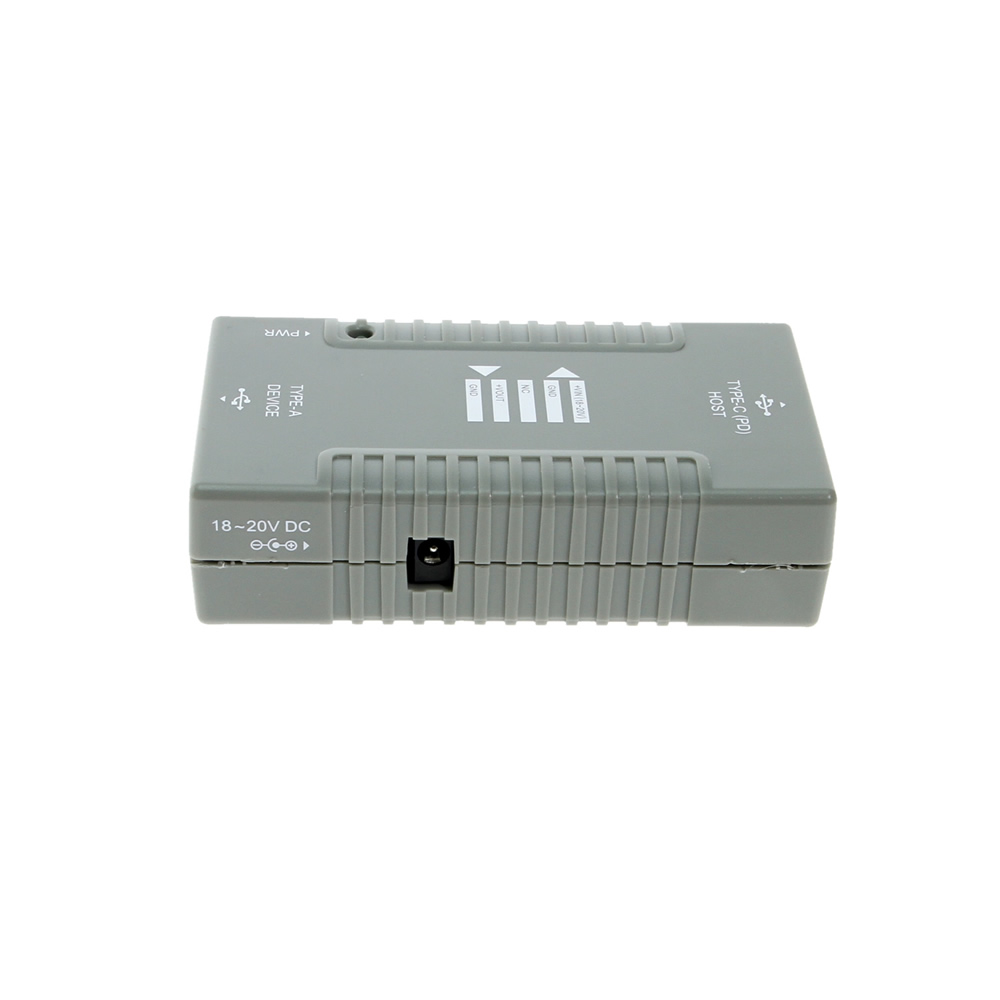

The USB-C to USB-A PD Adapter requires 20V DC for operation. It can be connected to either the DC Jack or Terminal Blocks (but not simultaneously). The included 20V/3.25A (65W) standard power supply must be connected to the DC Jack.

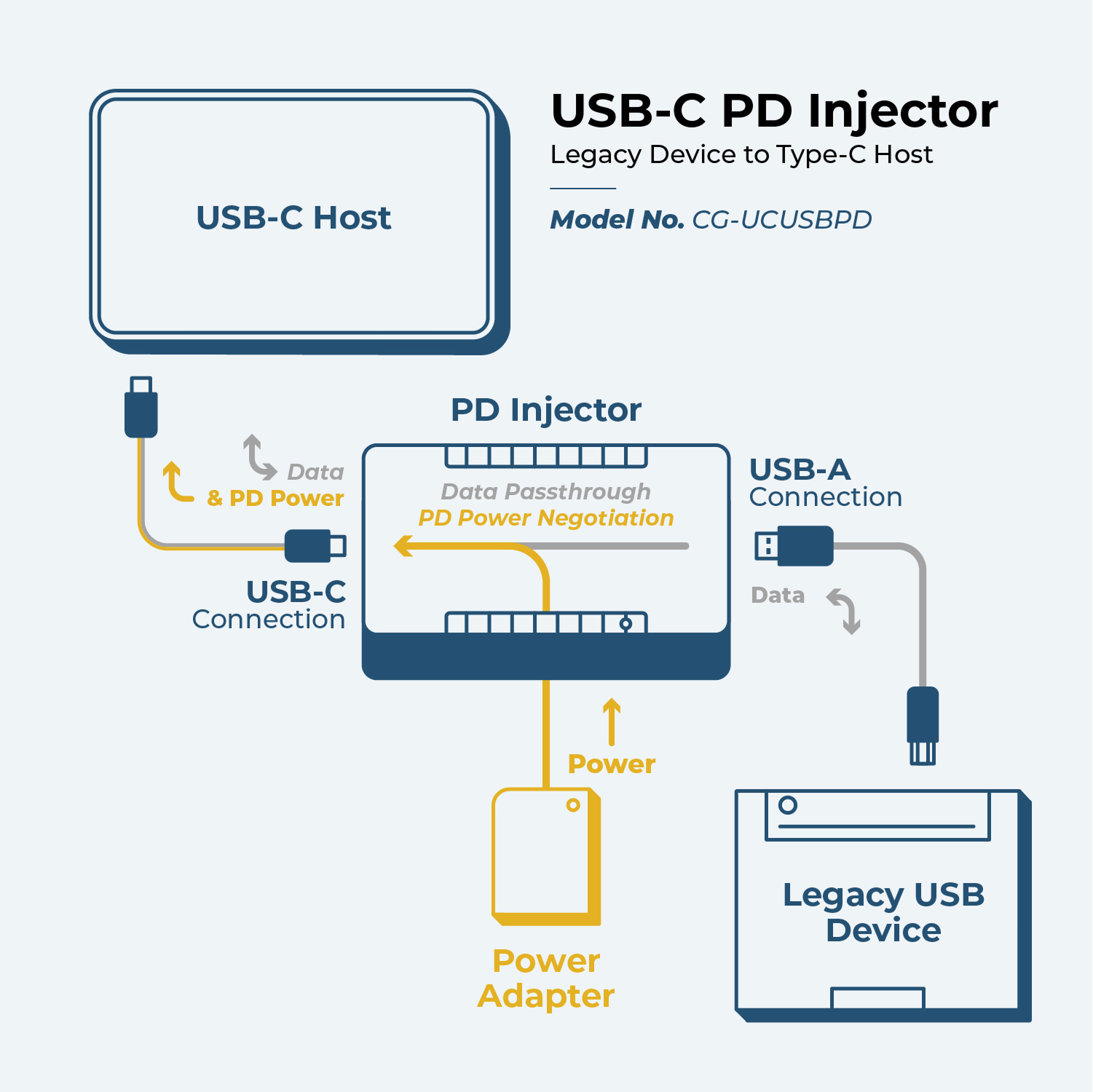

The USB-C to USB-A PD Adapter produces the required power for the USB-A device (5V fixed) and the PD source power (20V, 14.5V, 12V, or 5V). This depends on which PDO is requested and granted by the PD sink for the USB-C upstream port.

Specifications

Connectors: Upstream: Type-C USB 3.1/2.0/1.1 – Downstream: Type-A USB 3.1/2.0/1.1
Speed: USB 3.1 Gen 1/2 with 5/10Gbps
USB Signals: SSRX +/-, SSTX +/-, D+/-
Input Power: 20V DC
Supported Power PDOs: 20V/5A, 14.5V/2A, 12V/3A and 5V/3A
Operating Temperature: 0 to 55°C (32 to 131°F)
Operating Humidity: 5 to 95% RH
Storage Humidity: -20 to 85°C (-4 to 185°F)
