4-Port USB 3.2 Gen 1 Mountable Hub or Charger with 2A Per Port and ESD Protection

Replaced with item CG-4XUH

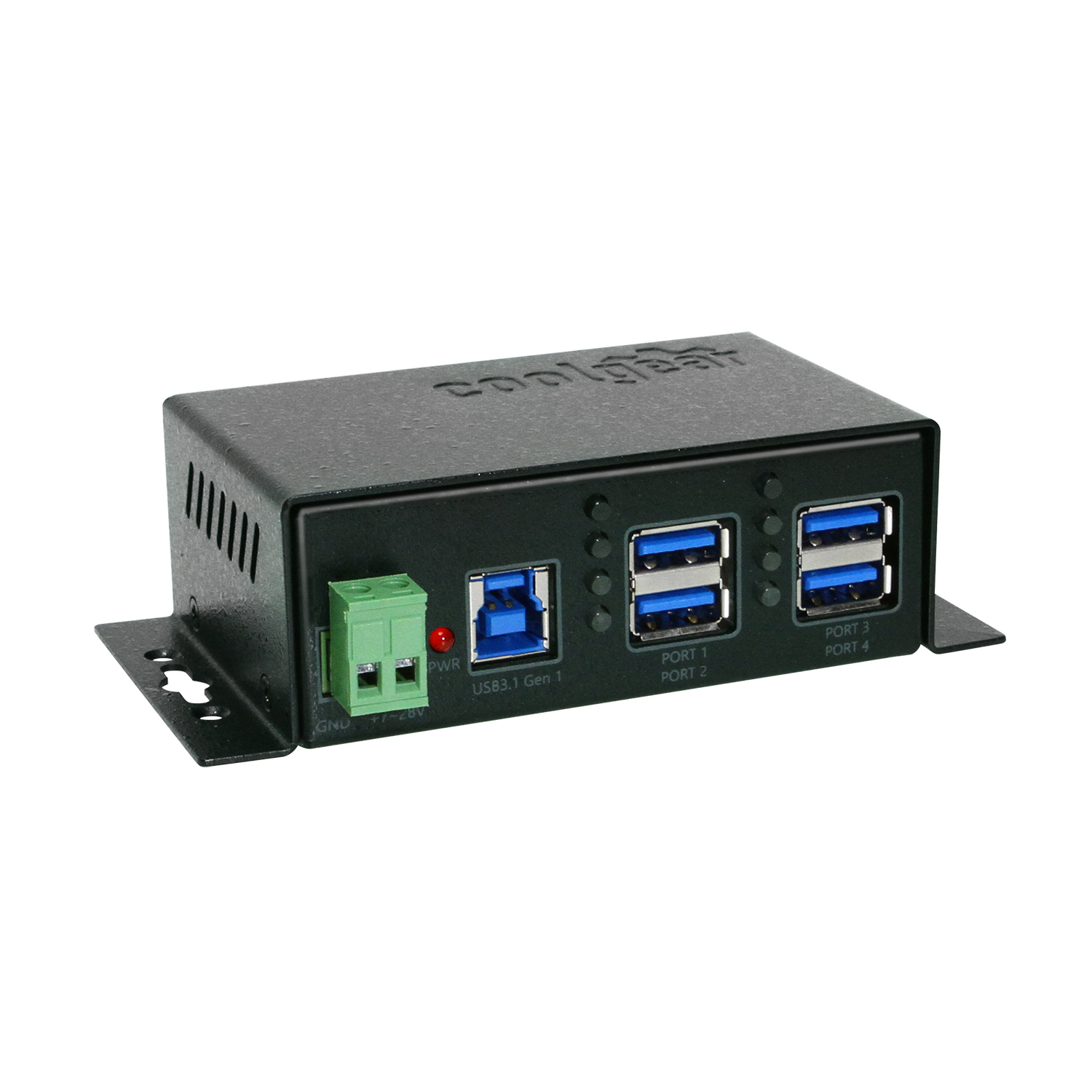

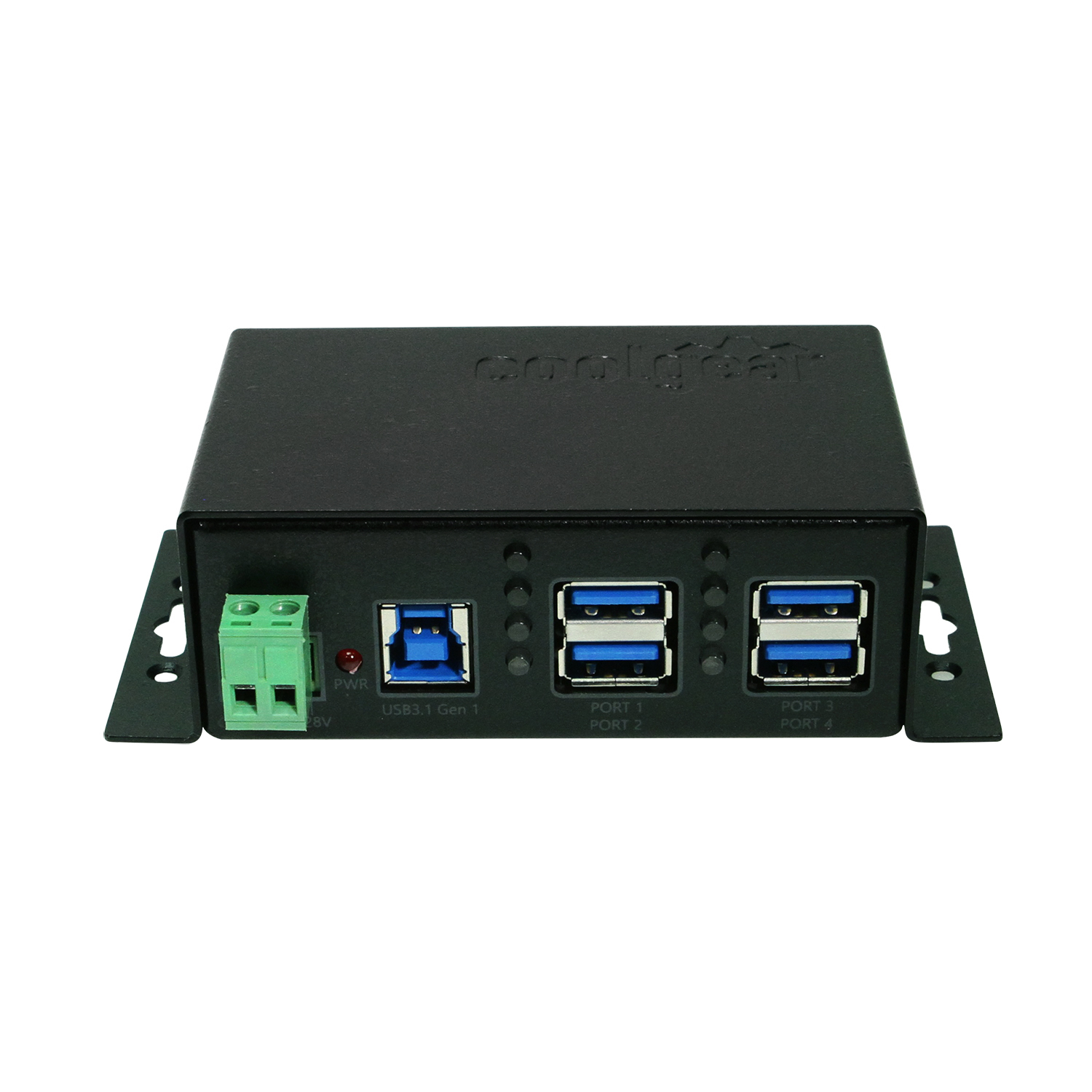

The Coolgear USB 3.1 hub is a 4 port industrial metal hub with a very small form factor accommodating up to 5Gbps of data transmission. It’s surface mountable using its attached mounting flange. It supports Windows 7, 8, 8.1, 10, Linux, and Mac OS10.X operating systems and supports 5 hops to cascade with other hubs.

The USB 3.1 4 port hub is Coolgear (Coolgear Labs) designed and is small enough to fit in the palm of your hand. Supporting USB 3.1 specifications compliant, this hub transfers large amounts of super-speed data from its downstream ports. Each of the USB 3.1 ports supports up to 2A of power output. Operating USB equipment such as printers, scanners, portable drives, virtual reality gear and others are not a problem with this USB 3.1 4 port hub hub.

The CGL-4PU31H can also act as a stand-alone charger without a connection to a host to charge devices needing up to 2A power.

USB 3.1 4 Port Hub Features

• Supports systems with USB 3.0, 2.0, 1.1 ports
• Can Charge without the need for a host computer.
• Uses Pipe LED’s for port status
• Provides 4 downstream ports supporting 5Gbps data speeds
• Compliant with USB 3.1 specifications
• Provides 1 upstream Type-B port to the host computer
• Backward compatible with data speeds of up to 5Gbps Super-Speed, 480Mbps High-Speed, and 12Mbps Full-Speed, and 1.5Mbps Low-Speed
• Supports 15KV ESD surge protection for each port
• Form Factor Dimensions: 4.50in(L) x 2.26in(W) x 1.03in(H) (11.45 x 5.73 x 2.63 cm)
• Multi transaction translators (TT) per hub
• Supports +7 – 24V DC wide range self-power input (power adapter sold separately)
• Supports a 2-pin Phoenix Connector for External power input from AC adapter
• Item Dimensions: 3.69 in(L 4.64 w/ears) x 2.29 in(W) x 1.36 in(H)
• Item Weight: .512 lbs.

Environmental Information

• Operating Temp.: 0 – 70 C (32 to 150 F)
• Storage Temp.: -20 to 85 C (-4 to 185 F)
• Operating Humidity: 5 to 95% RH

Package Contents

• USB 3.1 4 Port Mountable Hub
• 2-Pin Phoenix Connector
• USB 3.0 A to B 6ft Cable

• *Power Supply not included; available as an optional accessory: Model# 12V7A2P-A

Product Specifications

Optional Accessories

The 4 port USB 3.1 USB Hub or Charger has certain accessories that work with it. These accessories are what you can order if needed.

12V 6A Power Supply for 2 Pin USB Hub Power A Configuration

12V 6A External Power Supply 2 pin configuration A for Coolgear USB 2.0 and USB 3.0 commercial or industrial metal hubs. The power supply is…

Model# 12V7A2P-A

$29.95

In stock

Replacement Parts

Did you misplace or break a part that came with your hub? Purchase it here!

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
