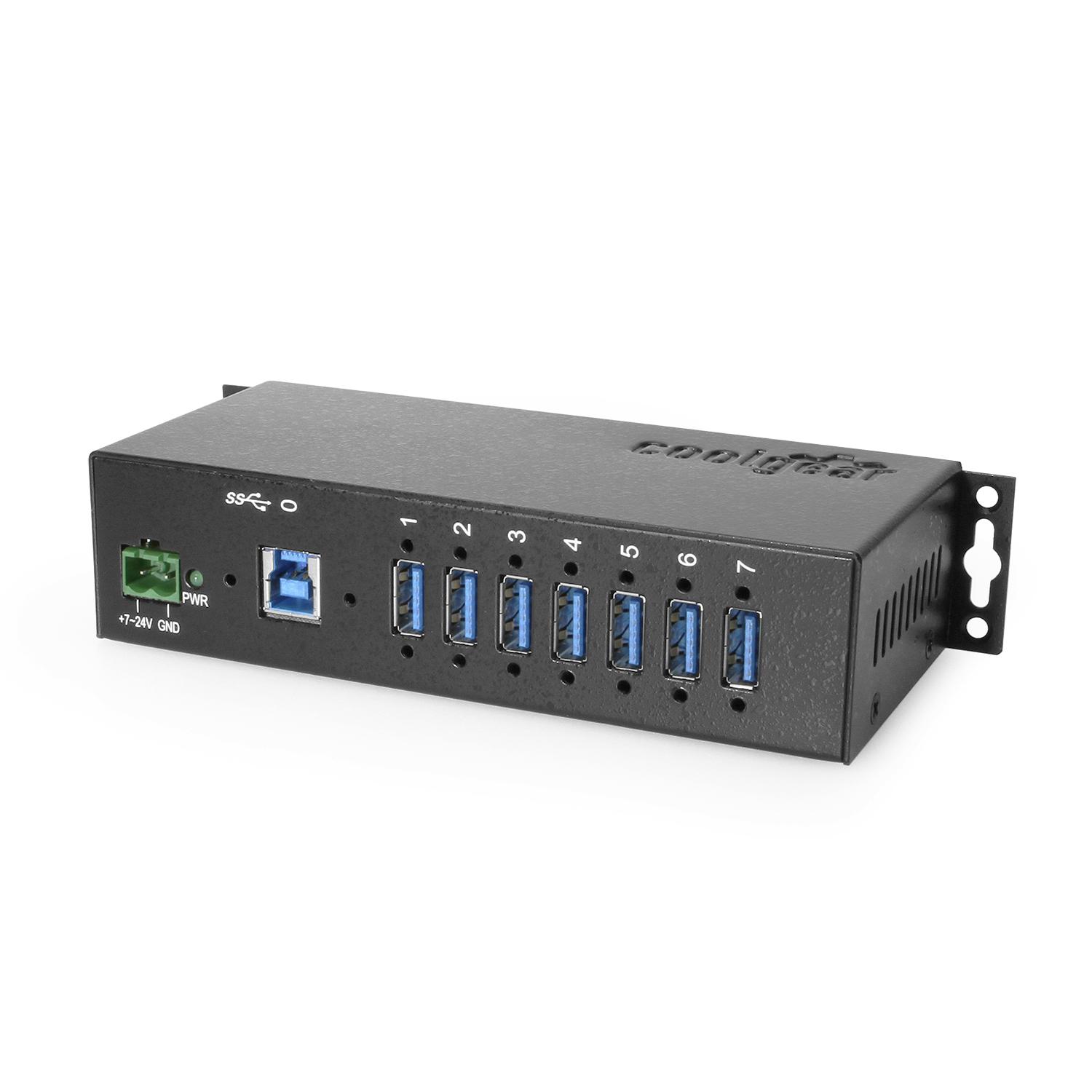

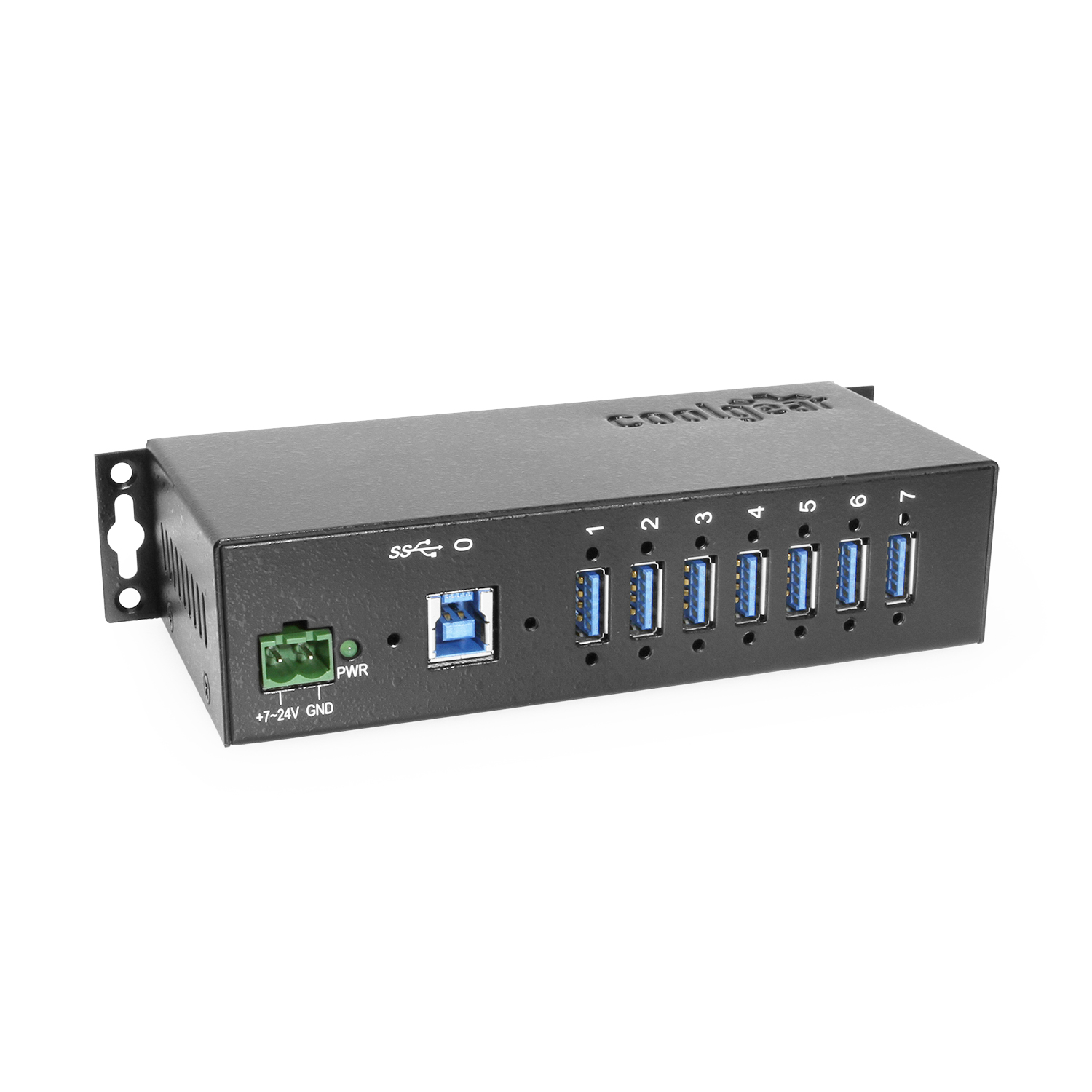

USB 3.0 7-Port Industrial Hub w/Din-Rail Mount and Power Supply

The USBG-7U3ML-PS is an Industrial USB 3.0 7-Port Hub that complies with the Universal Serial Bus 3.0 (USB 3.0) Specifications Revision 1.0 and is capable of up to 5Gbps. It supports voltage of +12V to 24V DC output and provides 7 downstream facing ports with standard Type-A USB 3.0 connectors. The USBG-7U3ML-PS USB 3.0 7-Port Industrial Hub also supports screw lock features for both upstream (USB type B) and downstream (USB type A) connectors with the screw lock USB cables, which prevent accidental disconnection.

With built-in single chip USB 3.0 controller, the USB 3.0 7-Port Hub  is backward compatible either when any one of downstream port is connected to an USB 1.1 or USB 2.0 compliant device, or when the upstream port is connected to a USB 1.1 or USB 3.0 compliant host.

The USBG-7U3ML-PS Industrial USB 3.0 7-Port metal, mountable hub can be bus-powered but also includes an AC power adapter for power hungry devices and applications when needed.

Additional Features:

System:

• For Systems with USB 3.0, USB 2.0 or USB 1.1 Ports
• USB 3.0 ports
• Provides 7 USB 3.0 downstream ports which managing up to 5Gbps:
• Compliant with USB 3.0 Specifications Revision 1.0
• Voltage is +12V to 24V DC output
• Provides 7 Downstream Facing Ports for Super-speed, High-speed, Full-speed and Low-speed traffic
• 1 Upstream Port for Super-speed, High-speed and Full-speed traffic
• Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
• Supports USB Screw-lock Mechanism for Secure Cable Connection
• Supports Self-powered and Bus-powered Mode
• Supports up to 900mA USB Bus Power for Each Down-stream Port
• Dimensions: 5.66″(L)x2.60″(W)x1.42″(H) (16.20×6.60×3.61 cm)(Length with ears 6.44″
• Hub Weight: .775 lbs.
• Supports Downstream Port Status with LED
• Supports Battery Charging Protocol Rev 1.2

USB Devices:

• Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, Pen-drives, SATA enclosures, joystick, virtual reality helmet, modem, PBX and many more

 OS Support:

• Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8
• Linux and Mac OS 10.X

I/O Hardware:

• Supports 7 external USB 3.0 Type-A connectors and 1 Type-B Upstream connector, supports screw lock features with screw lock type cables
• Supports 1 DC Jack and 1 2-pin Terminal Blocks for external power input

• NOTE: CABLES NOT INCLUDED, please see our cable category for Screw Lock USB Cables

External Power supply is included:

Environmental Specifications:

• Operating Temp: 0 to 55°C (32 to 131°F)
• Operating Humidity: 5 to 95% RH

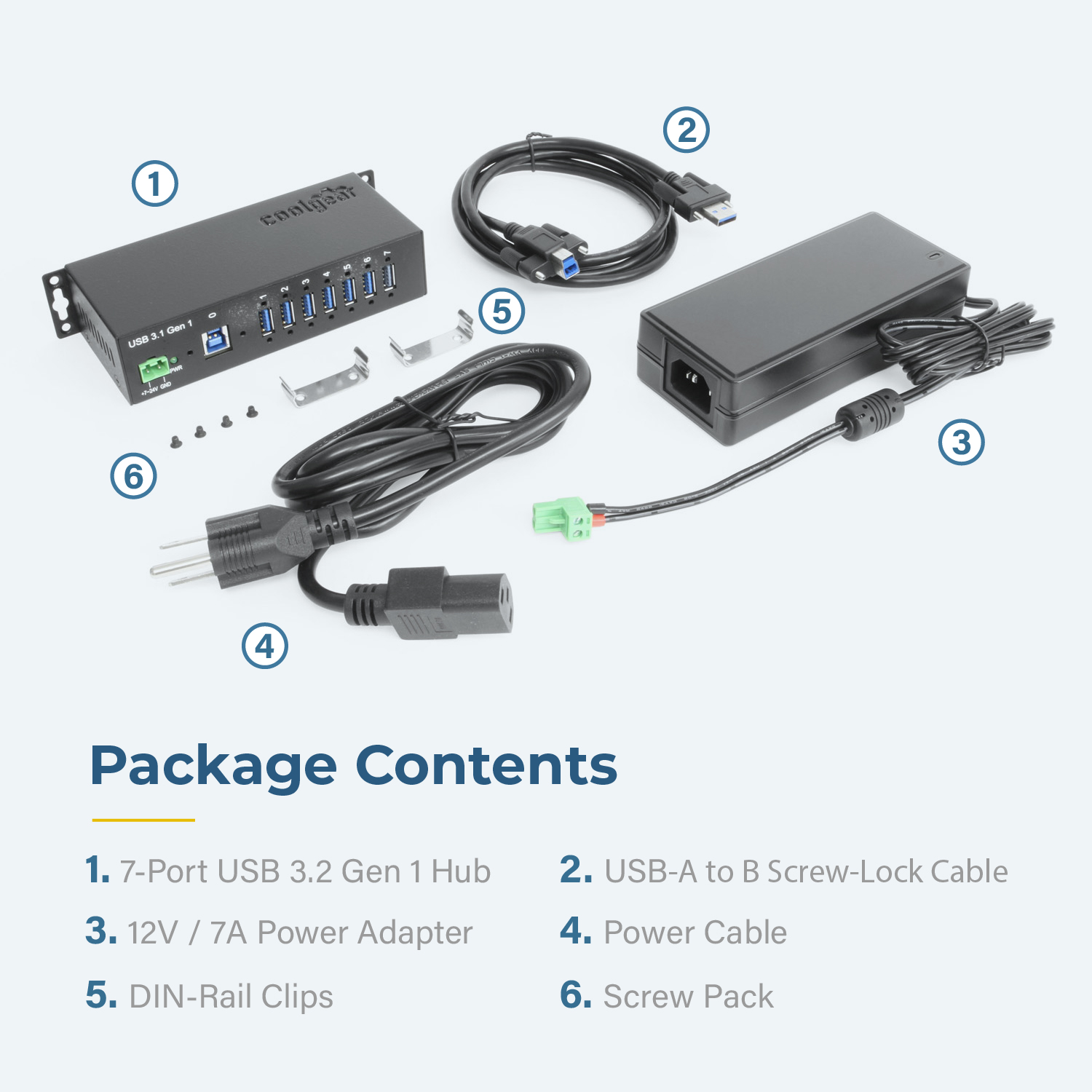

Package Contents

• USB 3.0 7 Port Hub
• Din Rail Clips and screws
• 6ft USB 3.0 A to B screw lock cable
• Paper installation guide
• 12V 7A Power Supply

Product Specifications

Optional Accessories

The 7 port USB 3.0 USB Hub has certain accessories that work with it. These accessories are what you can order if needed.

Out of stock

5ft. USB 3.2 Gen 1 SuperSpeed A Screw Lock to B Screw Lock Cable

USB 3 Cable 5ft. USB 3.0 SuperSpeed cable with type A to B connectors for Desktop, Laptops, and other USB 3.0 devices requiring data transfers of…

Model# ABMSL-USB3-5FT

$10.95

Out of Stock

Replacement Parts

Did you misplace or break a part that came with your hub? Purchase it here!

70w 12V/6A Power Supply for 2 Pin USB Hub Power B Configuration

12V 6A External Power Supply 2 pin configuration A for Coolgear USB 2.0 and USB 3.0 commercial or industrial Metal Hubs. The power supply is…

Model# 12V7A2P-B

$29.95

In stock

2-Pin Power Connector for Industrial Hubs

Replacement 2-Pin Power Connector for CoolGear USB 3.0 Hubs such as USBG-7U3ML.

Model# CG-2PPW

$2.95

In stock

Metal DIN-Rail-Clip Kit

DIN Rail Mount Gives DIN Rail Mounting capabilities to USB hubs, serial adapters, IP Adapters, or Ethernet servers that are designed for mounting applications. For…

Model# DIN-RAIL-MCLIP

$3.95

In stock

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
