Single Port Managed USB-C to C 3.2 Gen 1 Adapter w/ ESD Surge Protection and Software On/Off Control

View Product Documentation, CADs, & Downloads

Single Port Managed USB-C to C 3.2 Gen 1 Adapter w/ ESD Surge Protection and Software On/Off Control

Model No. CG-1MGDUC3C

Industrial Grade | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

Advanced Protection: The single port USB 3.2 Gen 1 adapter protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected device will be protected.
Super Fast Speeds: This USB adapter is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
Port Management Integration: Integrates seamlessly with existing hubs to provide enhanced control and management features. Control the port’s status, turn bus power on/off, and even reset the adapter through the adapter’s management software which supports Windows, Mac, and Linux operating systems

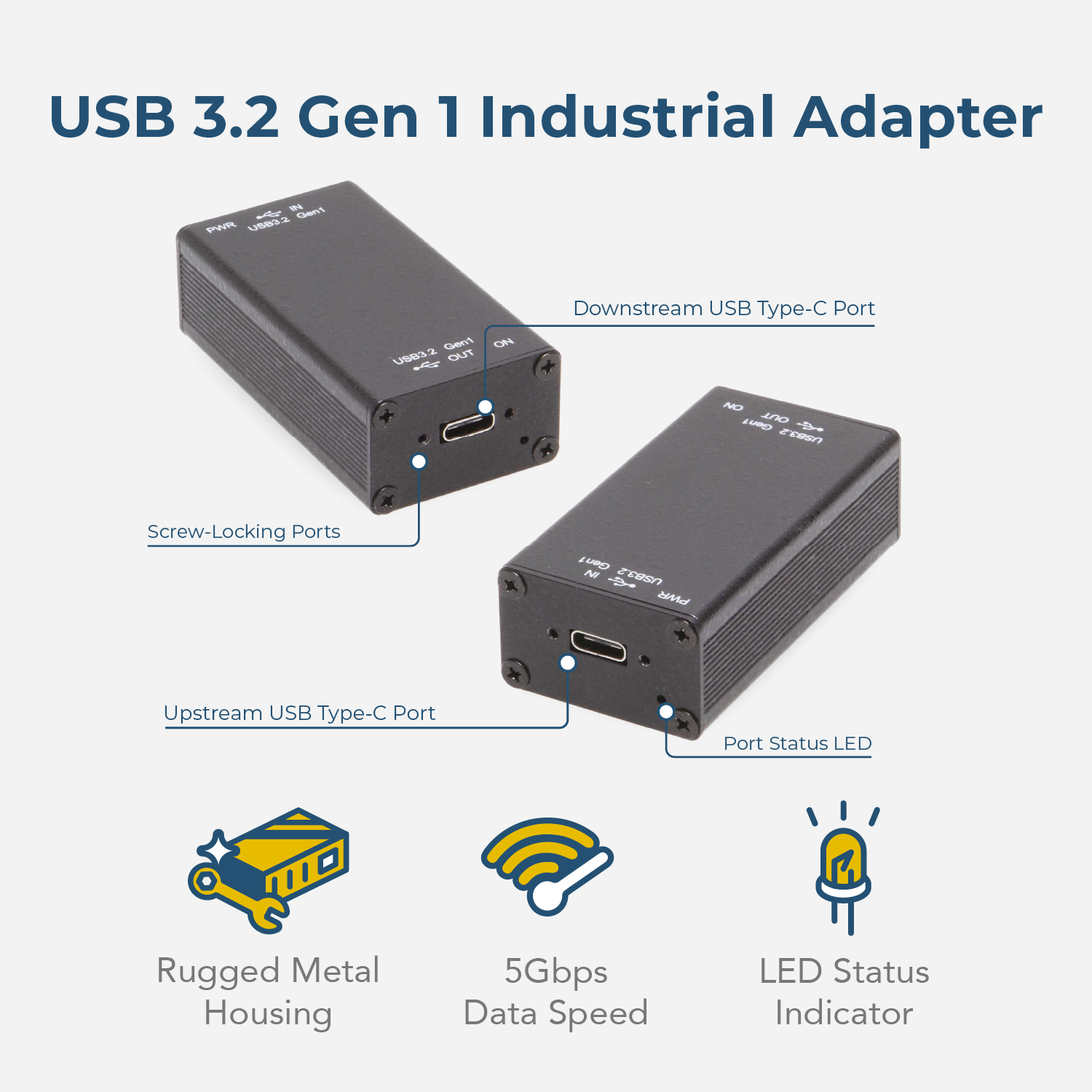

Upstream: 1 USB port, Type C connector, Screw-lock type
Downstream: 1 USB port, Type C connector, Screw-lock type
LED Indicators: LEDs for upstream and downstream port to indicate the current bus

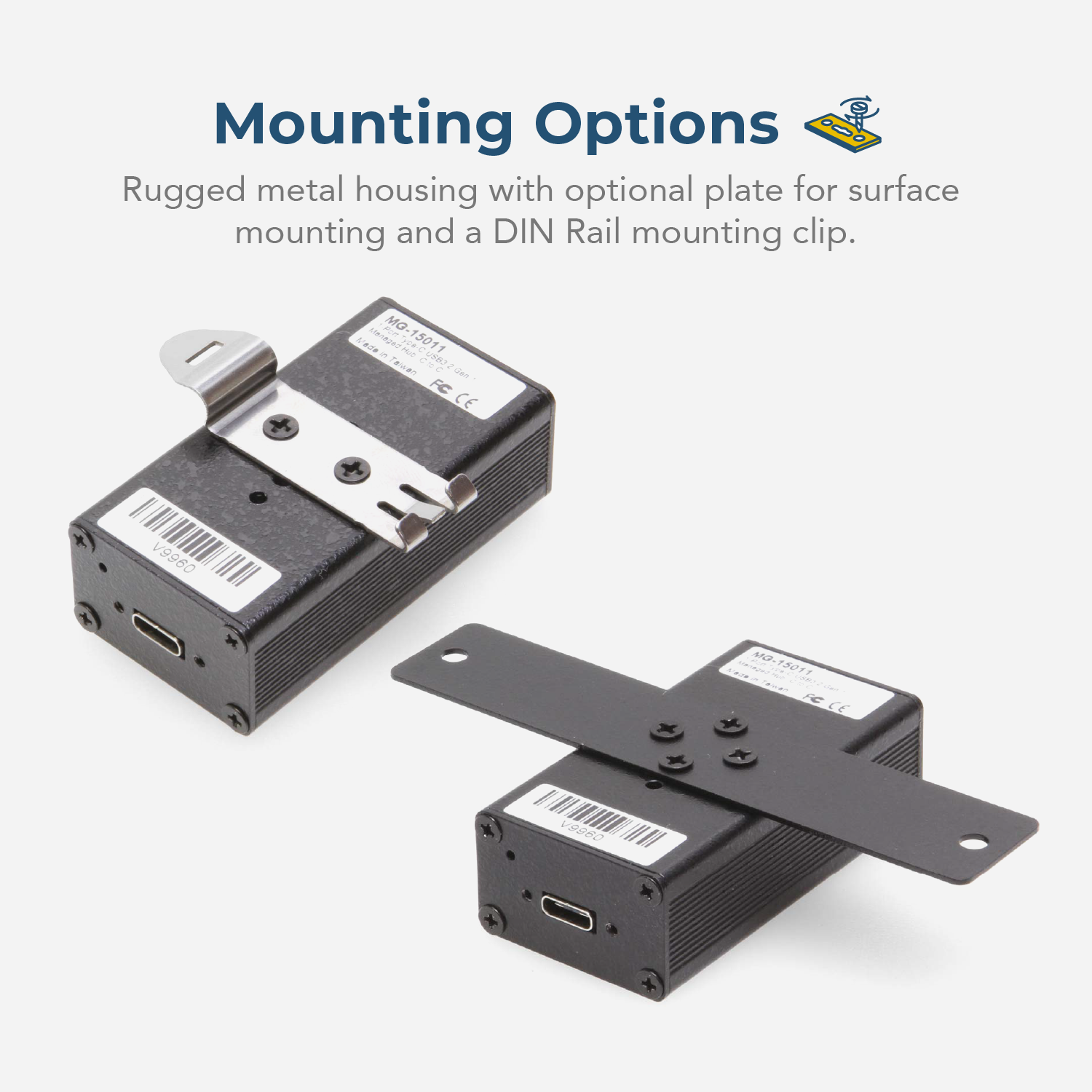

Mounting Options: Wall, Surface, and DIN Rail

$99.95

Bulk Pricing

Model No. CG-1MGDUC3C

In stock

Need some help? Contact us.

Product Documents

CG-1MGDUC3C - Technical Data Sheet

Quick Links:

Description

Introduction

The CG-1MGDUC3C from our MDS-UH Port Management Series is a versatile USB 3.2 Gen 1 adapter designed to bring sophisticated port managing capabilities to any USB hub setup. Unlike traditional hubs, this single-port Type-C adapter integrates seamlessly with existing hubs to provide enhanced control and management features, making it ideal for industrial applications and other demanding environments.

This adapter complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1, ensuring compatibility and reliability with all USB 3.2, USB 2.0, and USB 1.1 devices. It supports data transfer rates up to 5Gbps and features 15kV of ESD protection. The single downstream USB-C port supports the USB Battery Charging Specification v1.2 (SDP, CDP, DCP) and various Vendor Specific Charging Modes, such as Apple 2.4A and Samsung.

The CG-1MGDUC3C comes equipped with comprehensive management software that allows users to control the bus power of connected devices or reset the entire adapter. This software can save designated states to its flash memory, ensuring that the adapter retains its configuration upon the next power cycle. The management utilities are compatible with various operating systems, including Windows, Intel x86-64, and ARM-based Linux.

Given the ubiquity and scalability of USB as an expansion bus for modern computers, the CG-1MGDUC3C is an essential tool for instantly adding value and control to your USB devices, thereby maximizing your investment.

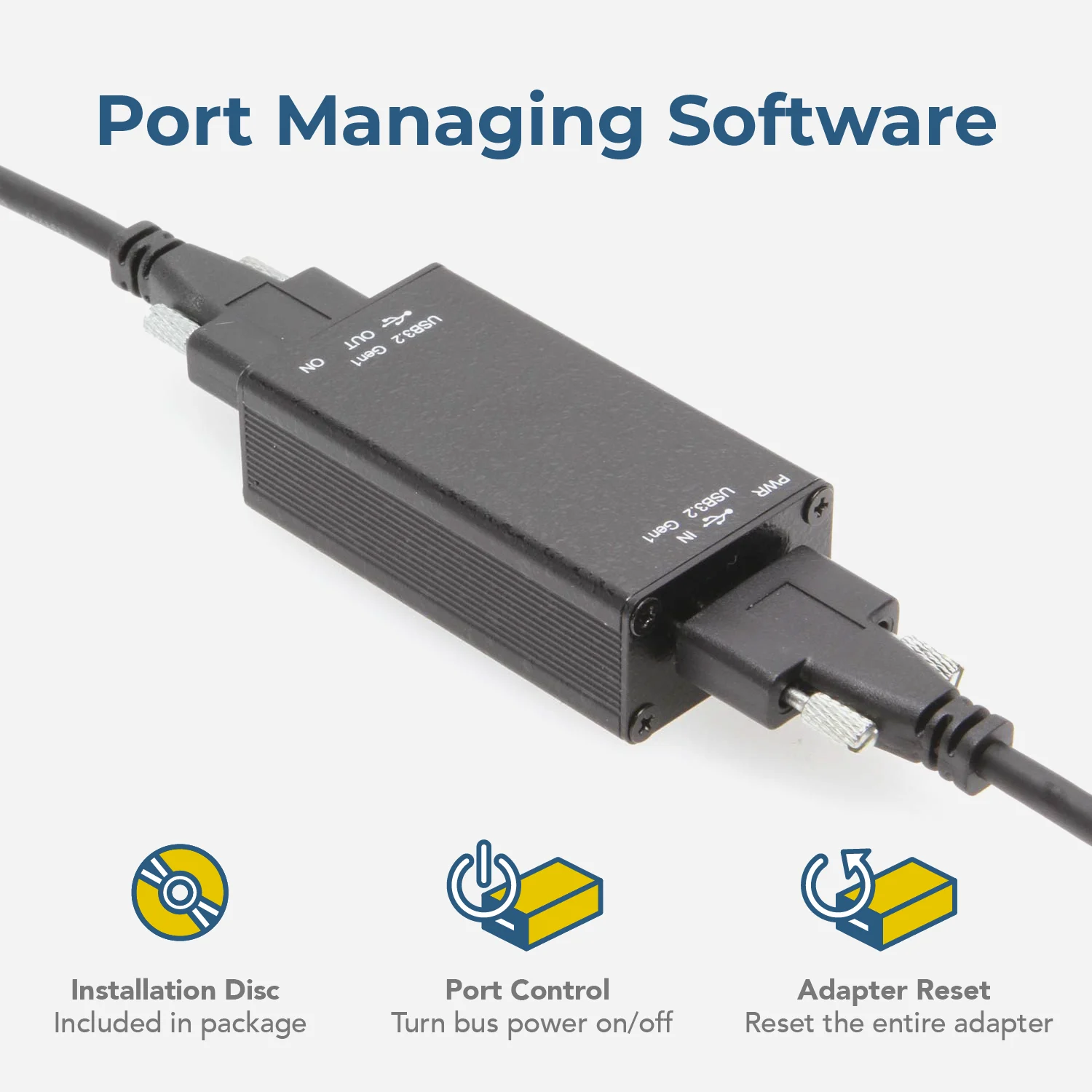

Managing Software

The CG-1MGDUC3C software package contains several managing software utilities which support different platforms allowing better control over each individual ports’ status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows and Mac OS. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python or even a PHP server scripting language.

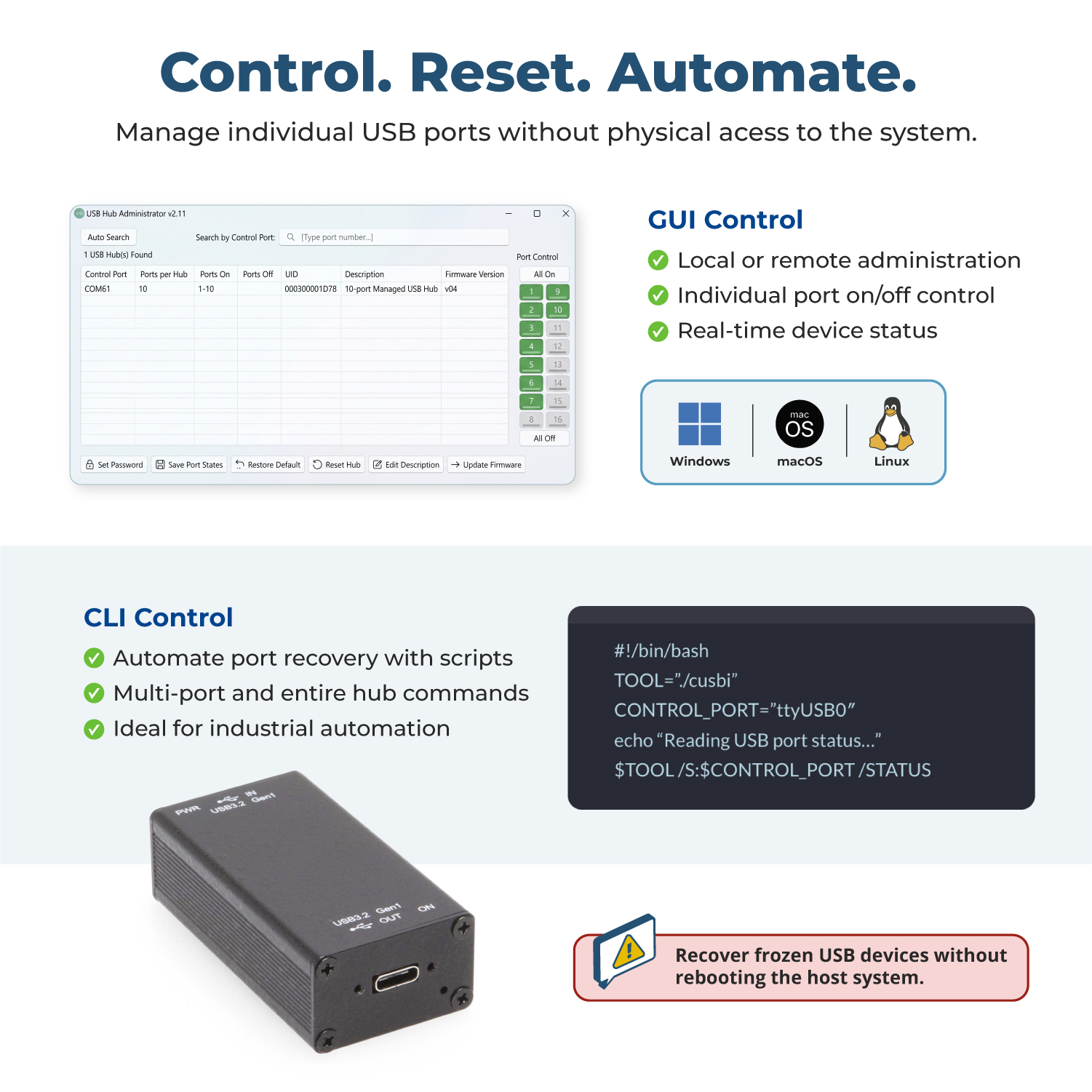

Image: Port managing software displaying the On/Off status of each port.

Features

Compliant with USB Specification 3.2 Gen 1

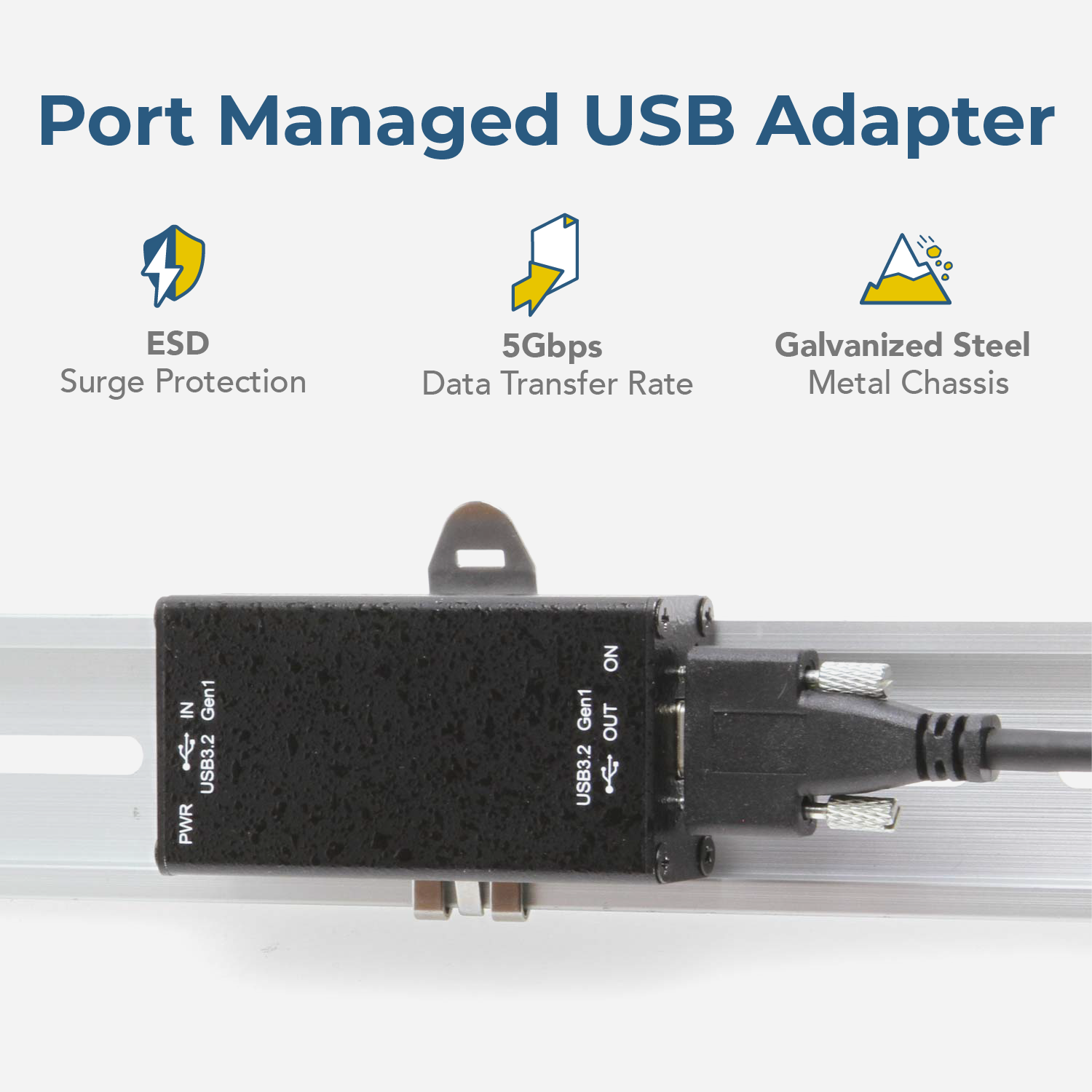

Metal Case, DIN Rail and wall mountable
Offers screw-locking ports for secure connections on both ends
Software Manageable Bus power
Supports software utility for Windows, Linux, and macOS
Provides 1 Upstream and 1 Downstream USB-C 3.2 Gen 1
Supports 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
Supports 15KV ESD Level 4 Protection
Supports USB Battery Charging v1.2: SDP, CDP, DCP modes
Supports Apple 2.4A and Samsung charging

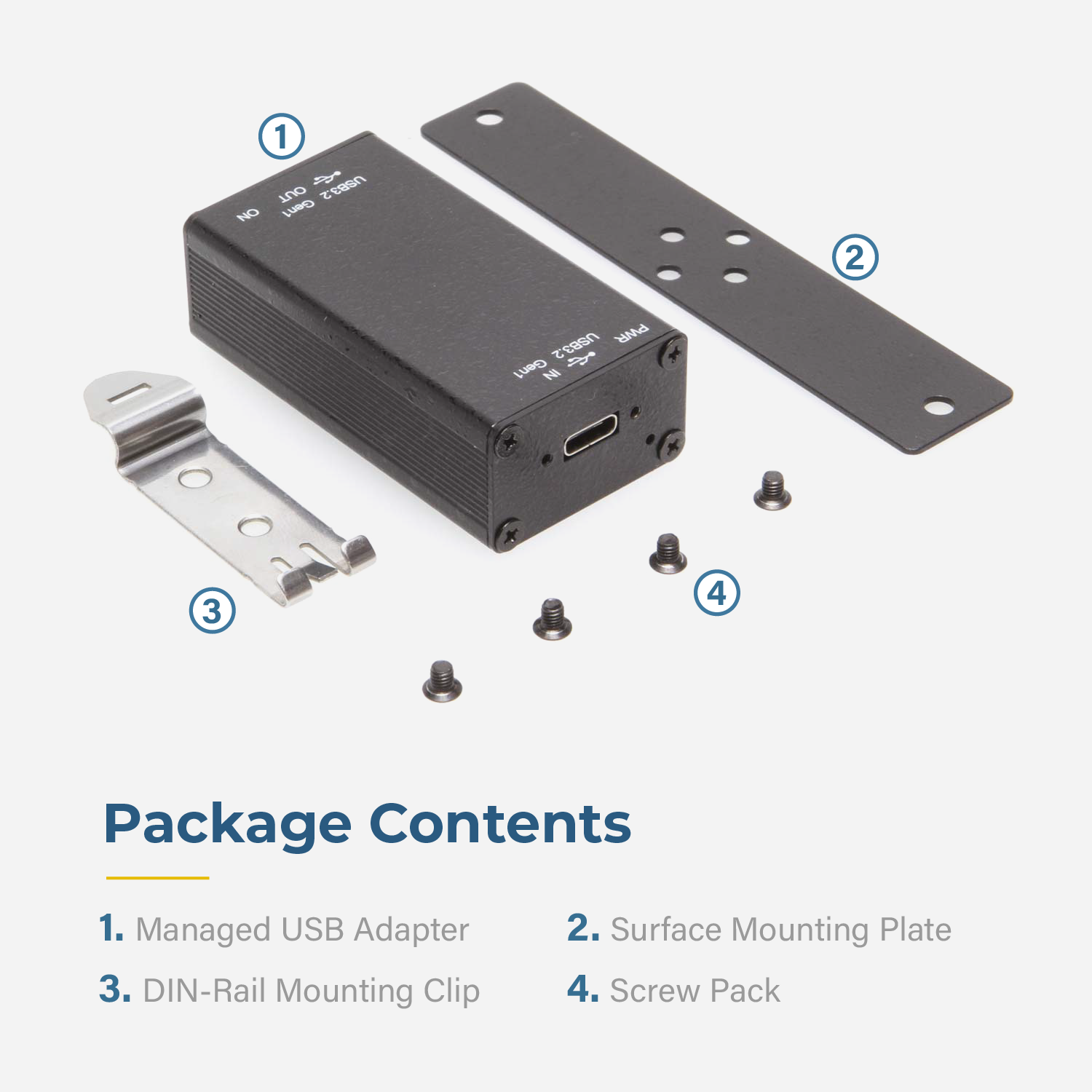

Package Contents

1 Port Managed USB-C to C 3.2 Gen 1 Port Adapter
Management Software Disc
Surface Mounting Plate
DIN Rail Clips
Screw Pack

*Surface Mounting screws not included.

Specifications

Product Specifications

Power

Input Voltage	+5V DC
Charging Protocols	Apple 2.4A, BC 1.2, Charging Downstream Port (CDP), Dedicated Charging Port (DCP), Samsung, Standard Downstream Port (SDP)

Compliance

Country of Origin

Taiwan

Physical Characteristics

Color	Black
Item Dimensions (L × W × H)	2.37 × 1.30 × 0.79 in.
Item Weight	0.15 lbs.
Mounting Style	Din-Rail Mount, Surface Mount, Wall Mount
Material of Construction	Steel
Screw Lock Compatible	Yes

Software

Managing Software Utilities

cusba: ARM Based Linux Controller Utility, CUSBC: Windows Console Command Control Utility, cusbi: Intel x86-64 Based Linux Control Utility, CUSBM_GUI: Mac OS GUI, CUSBM: Mac OS Terminal Script Utility, USBCTL: Windows GUI, cusba 64: ARM AARCH64 Linux Controller Utility

Environmental

Operating Temperature	0°C to 60°C (32 to 140°F)
Storage Temperature	-20 to 75°C (-4 to 167°F)
Humidity	5% ~ 95% (non-condensing)
Altitude	Up to 2000m

Product Information

Warranty

1 year from date of purchase

Hardware

Charging Protocols	Apple 2.4A, BC 1.2, Charging Downstream Port (CDP), Dedicated Charging Port (DCP), Samsung, Standard Downstream Port (SDP)
LED Indicators	Port Status, Power
Downstream USB Ports	1 Type-C Female USB
Upstream USB Ports	1 Type-C Female USB
