Single Port Managed USB 3.2 Gen 1 Adapter w/ ESD Surge Protection and Software On/Off Control

Model No. CG-1MGDU3A

Industrial Grade | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

Port Management Integration: Integrates seamlessly with existing hubs, devices, and host systems to provide enhanced control and management features. Control the port’s status, turn bus power on/off, and even reset connected hubs or devices through the adapter’s management software which supports Windows, Mac, and Linux operating systems

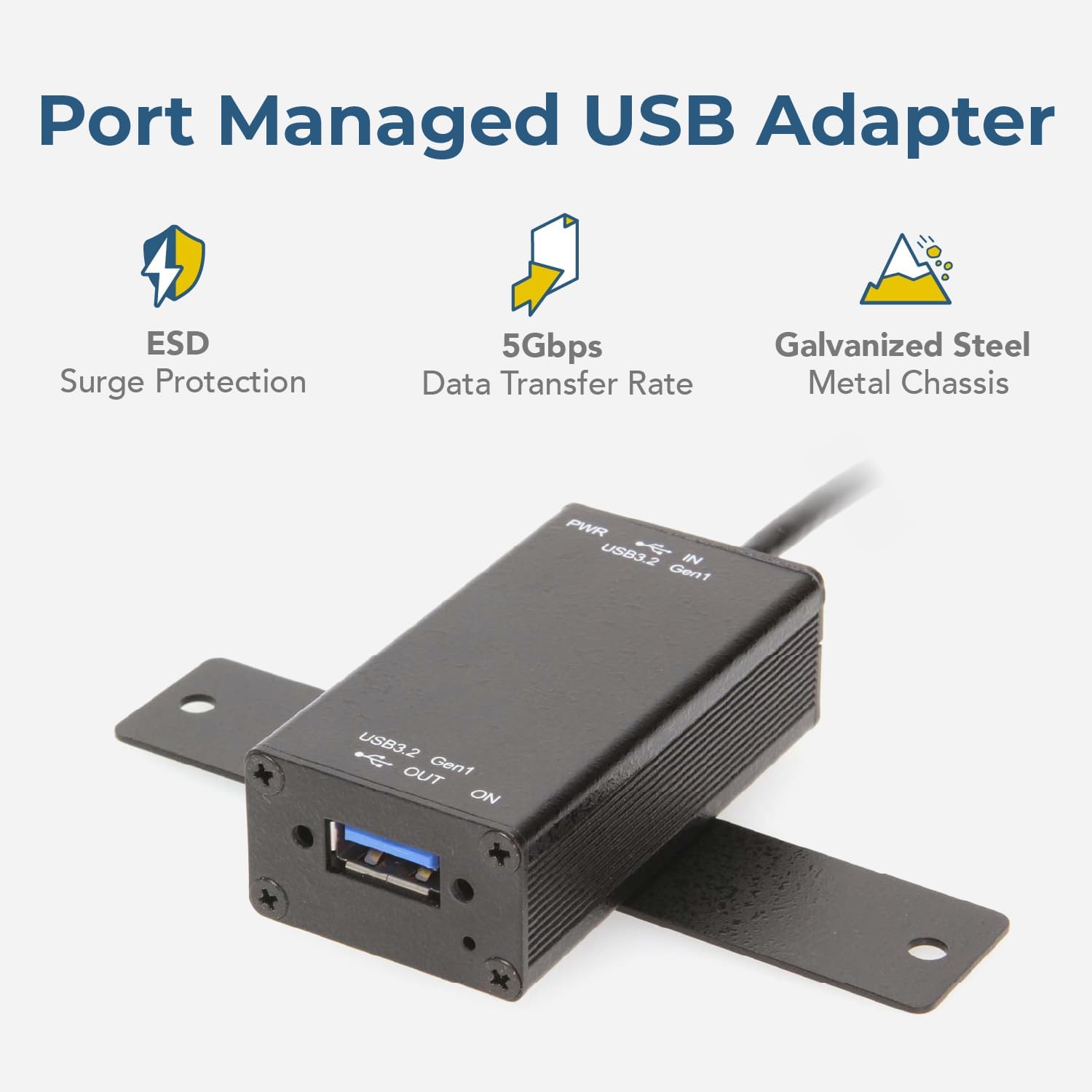

Advanced Protection: The single port USB 3.2 Gen 1 adapter protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected device will be protected.
Super Fast Speeds: This USB adapter is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.

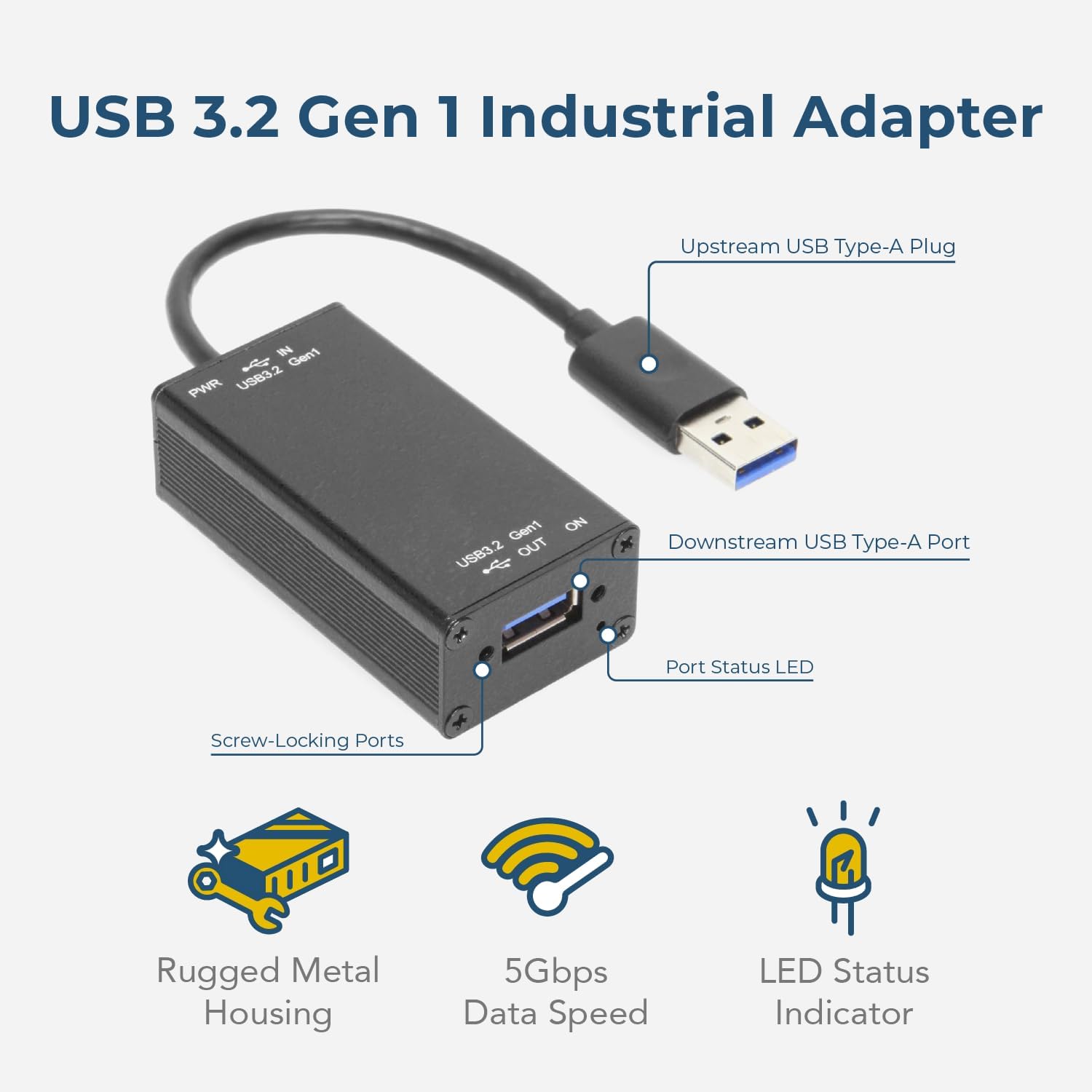

Upstream: 1 USB plug, Type A connector
Downstream: 1 USB port, Type A connector, Screw-lock type
LED Indicators: LEDs for upstream and downstream port to indicate the current bus
Mounting Options: Wall, Surface, and DIN Rail

$69.95

Bulk Pricing

Model No. CG-1MGDU3A

In stock

Need some help? Contact us.

Product Documentation

CG-1MGDU3A - Technical Data Sheet - v05.240619

Quick Links:

Description

Introducing the 1-Port Managed USB 3.2 Gen 1 Port Adapter

The CG-1MGDU3A from Coolgear’s MDS-UH Port Management Series is a versatile single-port USB 3.2 Gen 1 adapter designed for advanced port management in industrial and high-demand environments. Unlike standard USB hubs, this adapter integrates seamlessly with your existing setup to enhance control and provide robust management features, making it an ideal choice for mission-critical applications.

Supporting the latest USB 3.2 Gen 1 specifications, this adapter delivers reliable data transfer rates of up to 5Gbps and offers 15kV ESD protection. With full compatibility across USB 3.2, USB 2.0, and USB 1.1 devices, it is perfect for managing multiple USB peripherals with precision and efficiency. The adapter also supports USB Battery Charging v1.2 and vendor-specific charging modes like Apple 2.4A and Samsung, ensuring versatility in charging and data synchronization.

The CG-1MGDU3A is bundled with comprehensive management software, allowing users to monitor and control bus power and reset connected devices. Its intuitive GUI and command line tools support multiple platforms, including Windows, Linux, and macOS, making it an indispensable tool for system administrators and engineers.

Management Abilities

Device Management

Connect, turn on, turn off, and reset any connected USB devices.

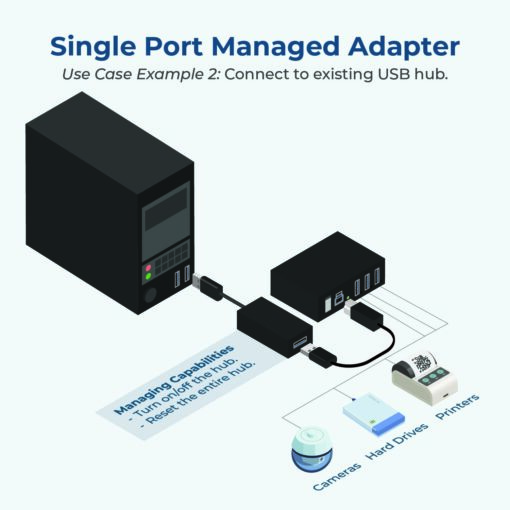

Hub Management

Connect, turn on, turn off, and reset any connected USB hub.

Individual Port Labeling

Digitally label individual ports when connecting multiple adapters.

Managing Software

Implement our management software into any system and leverage it’s functions.

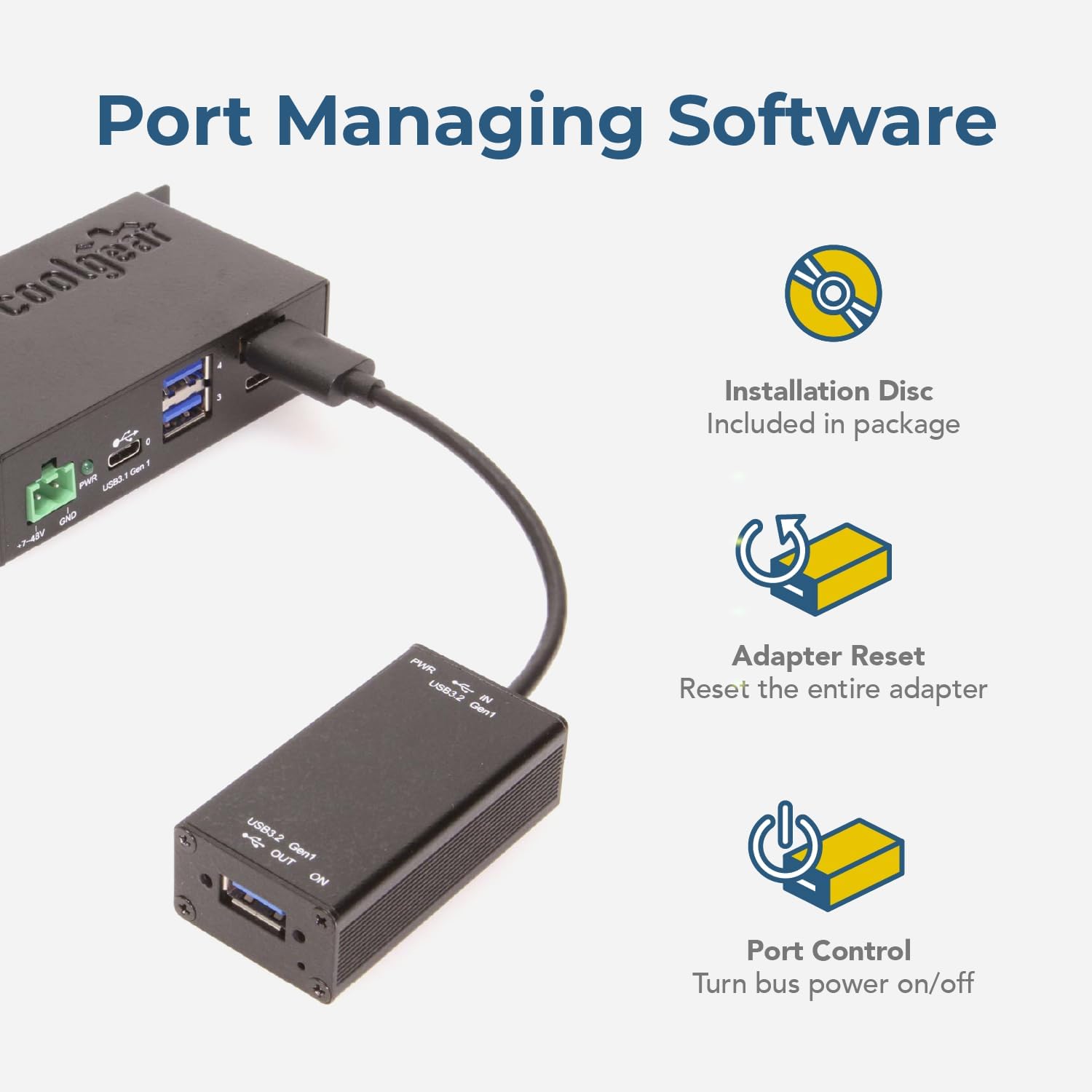

Managing Software

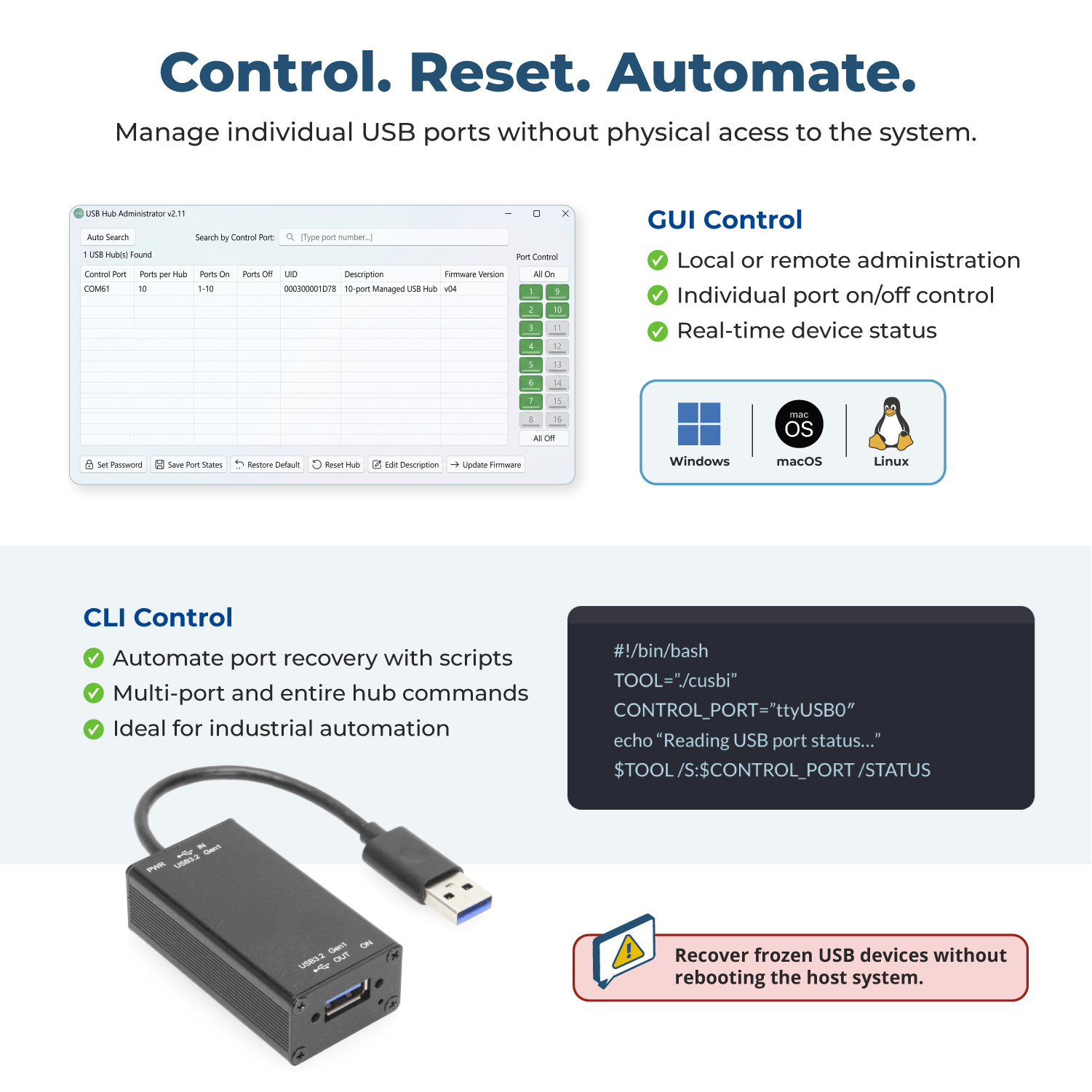

The CG-1MGDU3A software package contains several managing software utilities which support different platforms allowing better control over each individual ports’ status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows and Mac OS. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python or even a PHP server scripting language.

Image: Port managing software displaying the On/Off status of each port.

Key Features and Benefits

USB 3.2 Gen 1 Compliance: Ensures compatibility with all USB 3.2, USB 2.0, and USB 1.1 devices, providing reliable and fast data transfer rates up to 5Gbps.

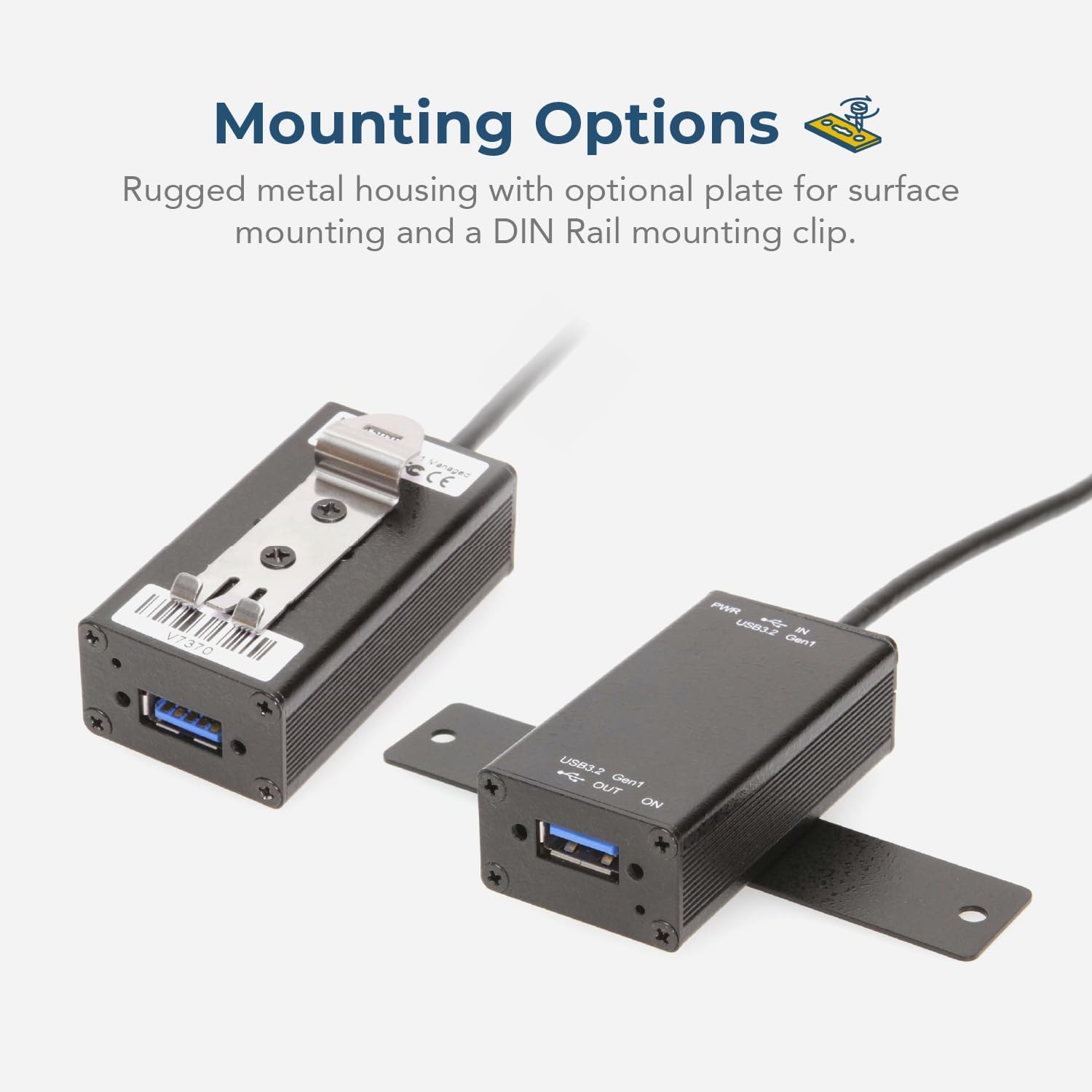

Rugged Design: Housed in a durable metal case, the adapter is DIN Rail and wall-mountable for secure and flexible installation options in industrial settings.
Screw-Locking Port: Equipped with a screw-locking USB-A port for secure connections, preventing accidental disconnection in demanding environments.
Advanced Power Management: Software-manageable bus power allows users to control connected devices or reset the entire adapter remotely.
Cross-Platform Support: The management software includes utilities for Windows, Linux (Intel x86-64 and ARM), and macOS, making it versatile for various setups.
15kV ESD Protection: Provides robust protection against electrostatic discharge, ensuring the safe operation of connected devices.
USB Battery Charging Support: Compatible with Battery Charging v1.2 standards, including SDP, CDP, and DCP modes, as well as vendor-specific modes like Apple 2.4A and Samsung charging.
Multi-Speed Support: Handles multiple USB speeds, including 5Gbps (SuperSpeed), 480Mbps (High-Speed), 12Mbps (Full-Speed), and 1.5Mbps (Low-Speed), making it versatile for a range of devices.

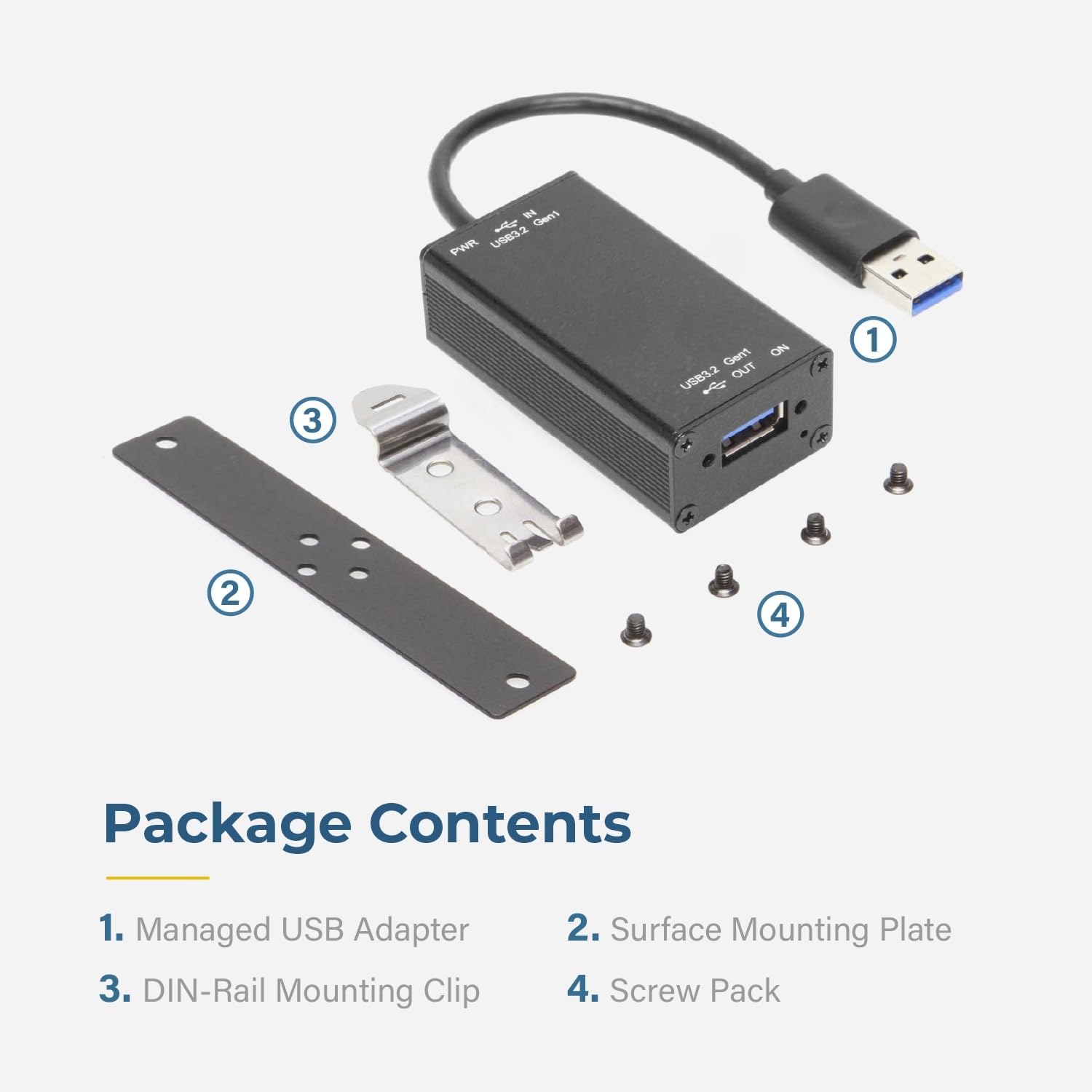

Package Contents

1 Port Managed USB 3.2 Gen 1 Port Adapter
Management Software Disc
Surface Mounting Plate
DIN Rail Clips
Screw Pack

*Surface Mounting screws not included.

Quick Features

Compliant with USB Specification 3.2 Gen 1
Metal Case, DIN Rail and wall mountable
Offers screw-locking port for secure connections
Software Manageable Bus power
Supports software utility for Windows, Linux, and macOS
Provides 1 Downstream USB 3.2 Gen 1
Supports 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
Supports 15KV ESD Level 4 Protection
Supports USB Battery Charging v1.2: SDP, CDP, DCP modes
Supports Apple 2.4A and Samsung charging

Use Cases

Use Cases:

Industrial Automation

Device Reset Control: Remotely reset machines or peripherals to ensure uptime and minimal interruptions.

Data Centers & NOCs

Peripheral Monitoring: Remotely power cycle or reset peripherals in critical data center environments.

Commercial & POS Systems

Remote Peripheral Management: Monitor and manage connected devices like receipt printers, barcode scanners, and payment terminals remotely, reducing the need for on-site technician visits.

Product Video

Product Video:

Specifications

Product Specifications

Power

Charging Protocols

Apple 2.4A, BC 1.2, Charging Downstream Port (CDP), Dedicated Charging Port (DCP), Samsung, Standard Downstream Port (SDP)

Compliance

Country of Origin

Taiwan

Physical Characteristics

Color	Black
Item Dimensions (L × W × H)	2.37 × 1.30 × 0.79 in.
Item Weight	0.15 lbs.
Mounting Style	Din-Rail Mount, Surface Mount, Wall Mount
Material of Construction	Steel
Screw Lock Compatible	Yes

Software

Managing Software Utilities

cusba: ARM Based Linux Controller Utility, CUSBC: Windows Console Command Control Utility, cusbi: Intel x86-64 Based Linux Control Utility, CUSBM_GUI: Mac OS GUI, CUSBM: Mac OS Terminal Script Utility, USBCTL: Windows GUI, cusba 64: ARM AARCH64 Linux Controller Utility
