PoE Voltage Monitor for STD PoE and Non-STD PoE

PoE Voltage Monitoring

Confirm your PoE standard and Non-standard voltages from 36V to 60V applications. Compliant with 802.3 af, at, bt type3 & 4 standard PoE. This is a great diagnostic tool for network installers that work with PoE.

Verifies the presence of proper voltage for bothe active and passive PoE applications.
Voltage range: 36V to 60V for standard PoE and 9V (blue LED) / 12V (red LED) to 60V for Non-standard PoE.
Verifies the PSE is delivering proper power compliant with alternative A or B or both 4-pair mode in 802.3 af or at/bt standard.
Verifies the presence of proper voltage for bothe active and passive PoE applications.

$54.95

EOL - Discontinued

Model No. POEPDPM4

Description

Test and Verify PoE Active and Passive Flow

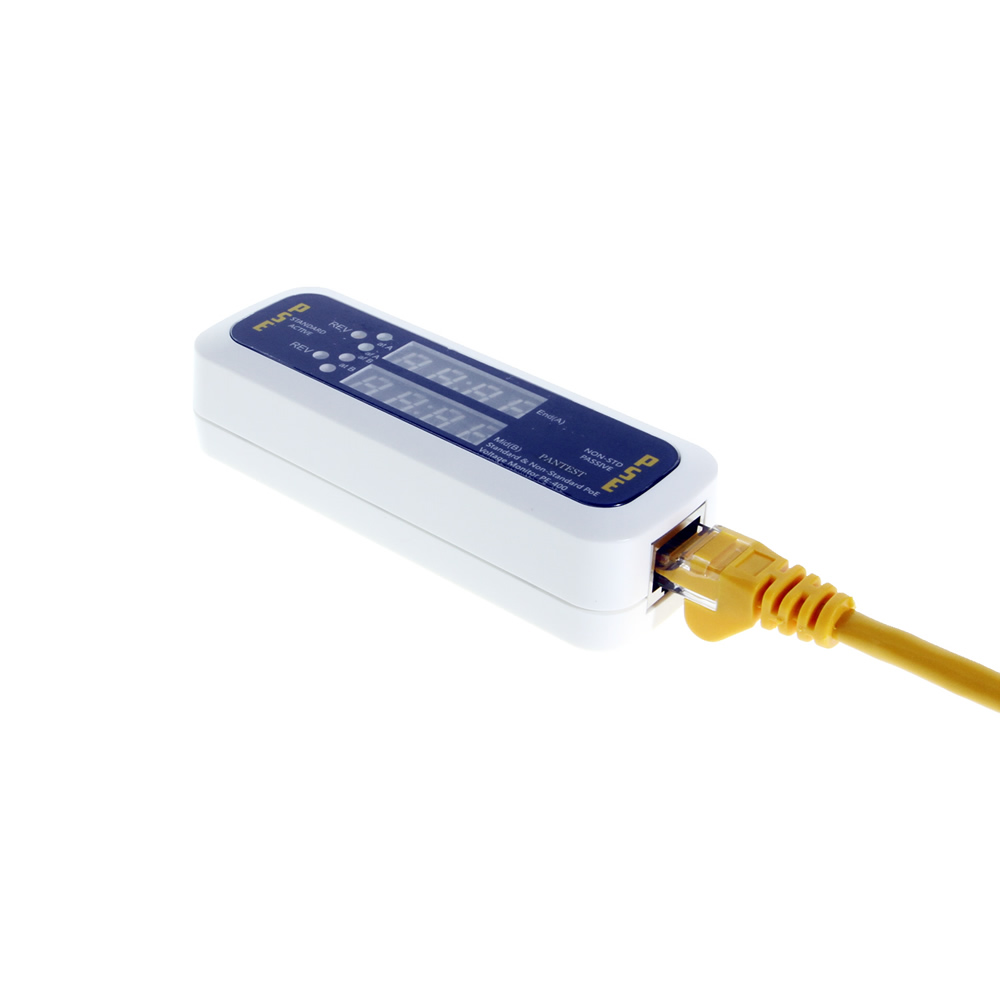

This PoE voltage monitor is specific to monitoring and verifying PSE or Ethernet outlet to either a standard (active) PoE or a non-standard (passive) PoE. It will also monitor and display available voltage simultaneously. The PoE voltage monitor has a built-in PoE interface controller to trigger on 802.3 af, at and bt switch and verify standard PoE type either 802.3 af, at/bt, and power source. The power source can be either end (A) or Mid (B) or both, and power polarity as well as display voltage values.

The operation voltage should be measured when installing a new PoE system or when you’re troubleshooting an existing system. The PoE voltage monitor verifies whether there is sufficient voltage power to ensure your PD can function correctly and help avoid damage to equipment when using Non-standard PSE such as some high power injectors.

A passive PoE device is not compatible with the 802.3 af/at standard due to the difference in voltage rating. Differences in voltage ratings can cause problems that often occur to damage a passive PoE end device.

PoE Voltage Monitor Features

Verifies the presence of proper voltage for both active and passive PoE applications.
Verifies and confirms PSE or Ethernet outlet either Active PoE (standard) or passive PoE (Non-standard)
Detects and displays PoE (af or at/bt) standard, power source (end or mid or both 4-pair), power polarity and voltage values at PSE connected.
Identifies and confirms Non-standard/passive/PoE/injector with voltage values, power source mode and polarity.
Voltage range: 36V to 60V for standard PoE and 9V (blue LED) / 12V (red LED) to 60V for Non-standard PoE.
Supports and is compliant with IEEE 802.3 af, 802.3 at and 802.3 bt type3 and type4 standard PoE.
Verifies the PSE is delivering proper power compliant with alternative A or B or both 4-pair mode in 802.3 af or at/bt standard.
Easy method of testing PoE switch / injectors which are Non-standard passive PoE compliant.
Plug-and-play for ease of use with battery-free operation.

Specifications Table

Connector Interface	2x RJ45 jack (STD PoE, PSE test jack, Non-PoE injector/PSE, test jack))
Display	4 LEDs indicate IEEE 802.3 af or 802.3 at standard. Dual 7-digit LEDs indicate power source either End (A) (1/2, 3/6) or Mid (B) (4/5, 7/8) or both and display voltage values. 2 yellow LEDs indicate reversed polarity for power type.
Voltage Range and Max Current	Standard/Active PoE 36V – 60V Non-STD/Passive PoE 9V/12V – 60V Max current 1 Amps end and mid total 2 Amps.
Standard Compliant	Standard PoE testing – IEEE 802.3 af, 802.3 at, and 802.3bt.
Testing	One-site testing-PSE
Operating Temperature	32°F to 122°F (0°C to 50°C
Storage Temperature	-40°F to 131°F (-20°C to 55°C)
Size	99 x 36 x 26mm / 3.9 x 1.4 x 1 inch
Certification and Compliance	CE, FCC, RoHS
