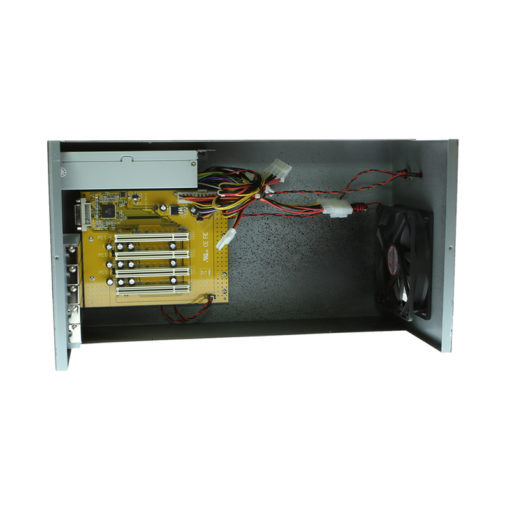

Power supply and PCI board in the expansion enclosure

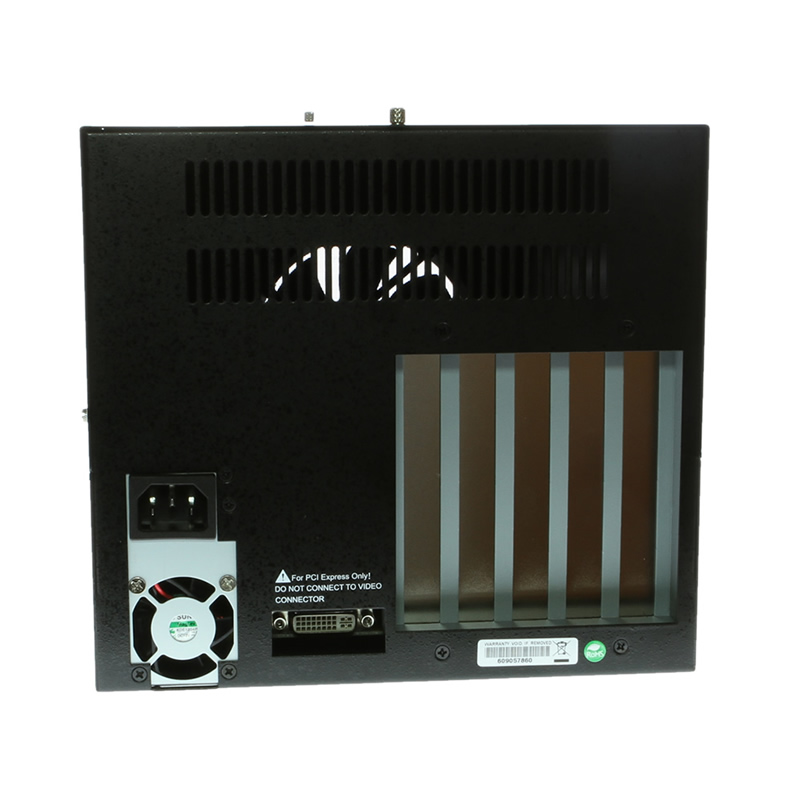

Showing fan, slots, and cable connection port

Find Similar Products

Enclosure Expansion Boxes

PCIe to PCIx4 Expansion Box MX with Internal Power Supply

PCI Expansion Box with Internal Power Supply

This expansion box presents an opportunity to expand PCI/PCIe resources by combining it with a PCIe Host Adapter, a ExperssCard Host Adapter or even a PCI Host Adapter.

Expands the PCI card slot to 4 32-bit/33HMZ PCI Slots.
Supports both 5V and 3.3V Add-in Cards.
PCI Slots are fully Compliant PCI Bus Rev. 2.3.
Full x1 PCI Express Throughput, 250Mbytes/sec.

$329.95

In stock

Product Documentation

CG-PCIePCIX4IPS Data Sheet

Model No. CG-PCIePCIx4IPS

Description

Expansion box with internal power supply

The CG-PCIePCIx4IPS PCI Express to Quad PCI Slots Expansion Box is specially designed to expand 4 extra PCI slots from a PCI Express Slot. It is connected to a host PC with a PCIe adapter card, a cable, an ATX chassis bracket and the slot expansion board. The board is internally powered by the standard ATX power supply within the chassis. It provides instant PCI bus expansion via the PCI Express Bus (PCIe).

PCI Express provides a scalable, high-speed, serial I/O bus that maintains backward compatibility with PCI applications and drivers. Its architecture defines a high-performance, point-to-point, scalable, serial bus at speed of 250Mbytes/sec to 4GBytes/sec (and 8Gbytes/sec in the future).The complete product line offer many choices help you to expand and make your I/O resource grow with your requirements as this expansion box can be combined with a PCIe Host Adapter, a ExperssCard Host Adapter or even a PCI Host Adapter. A slightly smaller enclosure CG-PCIX4IPS is available.

Products Features

Full x1 PCI Express Throughput, 250Mbytes/sec
Fully Compliant with PCI Express Base
Specifications, Revision 1.0a
Expands 4 PCI 32-bit 33MHZ Slots over PCI Express Slot
PCI Slots are fully Compliant PCI Bus Rev. 2.3
Supports both 5V and 3.3V Add-in Cards
Supports Cable Length up to 2 meters
Low Profile Version is Available with Short Bracket
PCI Express card
Builds in 220-Watt Standard ATX Power Supply
Full-Length in Size, Builds in Cooling Fan
Extended Virtual Channel (VC) Support
Includes a Second VC for Quality-of-Service and Isochronous Applications
Active State Link Power Management Support
Form Factor: 15.74 x 8.66 x 7.87 (40 x 22 x 20cm)

Specifications

Expansion Box PCI Slots

Provides four 32-bit/33HMZ PCI Slots
Fully PCI Specifications 2.3 Compliant
Supports both 5V and 3.3V Fault Tolerance Option
Builds in 220-Watt Internal ATX Power
Advanced PCI Isochronous Windows for Memory Space Mapping to a Specified Traffic Class

I/O Hardware

Host connector: One 24-pin connector for PCI Express Host Cable
ATX 2×12 Power Connector: One standard 2x 12 ATX Power Input Connect to be powered by standard ATX PC Power Supply.

Environmental Specifications

Operating Temperature: 0 to 55°C (32 to 131°F), 10% to 90% relative humidity (non-condensing)
Storage Temperature: -40 to 75°C (-40 to 167°F), 5% to 95% relative humidity (non-condensing)

Note:This product includes only the power supply, PCI board, and fan as shown in the pictures above. The PCI, PCIe, and Express cards are sold separately.
