PCIe to PCIx4 Expansion Box Component Kit

The PCIe to PCI x4 Kit is a PCI Bus expansion kit with all the components needed to put into an empty chassis for purposes of PCI/PCIe system expansion.

Included in this kit are the following components:

• 3ft. DVI like cable to connect from PCIe card in Host computer to the PCI port connection of the optional chassis (not included).
• An additional card bracket for PCIe card optional low profile assemble.
• PCIe Card.
• Software driver and utility disc.
• 4 slot PCI expansion board with integrated port connection.

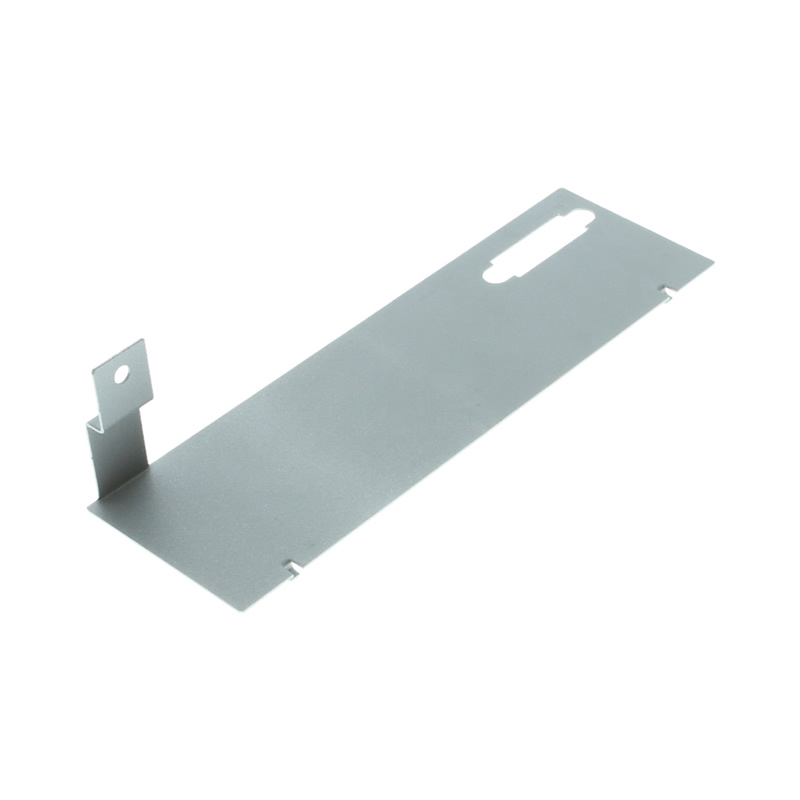

• Chassis bracket for board assembly to chassis.

The PCIe to PCI expansion kit is designed to expand to incorporate an extra 4 PCI slots from your computers PCI Express slot. The PCI Express card can provide a scalable, high-speed serial I/O bus that maintains backward compatibility with PCI applications and drivers, this delivers a high-performance, point-to-point interface with 250Mbytes/sec to 4Gbytes/sec architecture.

Taking advantage of this kit means assuring Plug-and-Play compatibility and no IRQ and I/O address conflict problems allowing you to expand your I/O resource to grow with your requirements.

Note: A supporting chassis is not included as a part of this kit.

Kit Features

• Full x1 PCI Express Throughput, 250Mbytes/sec
• Fully Compliant with PCI Express Base
• Specifications, Revision 1.0a
• PCI Express Advanced Error Reporting
• Capability Including ECRC Support
• Expands 4 PCI 32-bit 33MHZ Slots over PCI Express Slot
• PCI Slots are fully Compliant PCI Bus Rev. 2.3
• Supports both 5V and 3.3V Add-in Cards
• Supports Cable Length up to 2 meters
• Low Profile Version is Available with Short Bracket
• PCI Express card
• Supports Standard ATX Motherboard Form Factor
• Can be Installed in the any Standard ATX Chassis
• Extended Virtual Channel (VC) Support
• Includes a Second VC for Quality-of-Service and Isochronous Applications
• Active State Link Power Management Support

Specifications

PCI Slots

• Provides four 32-bit/33HMZ PCI Slots
• Fully PCI Specifications 2.3 Compliant
• Supports both 5V and 3.3V Fault Tolerance Option
• Advanced PCI Bus Port Arbitration Options Include 128-phase, Weighted Round-Robin Time-Based and 128-phase, Weighted Round-Robin Aggressive Time-Based
• Advanced PCI Isochronous Windows for Memory Space Mapping to a Specified Traffic Class

I/O Hardware

• • Host connector: One 24-pin connector for PCI Express Host Cable.
  • ATX 2×12 Power Connector: One standard 2x 12 ATX Power Input Connect to be powered by standard ATX PC Power Supply.

Environmental Specifications

• Operating Temperature: 0 to 55°C (32 to 131°F), 10% to 90% relative humidity (non-condensing)
• Storage Temperature: -40 to 75°C (-40 to 167°F), 5% to 95% relative humidity (non-condensing)

Form Factor
6.700 x 5.314” (17.01 x 13.50cm)
