12 Port Industrial USB 3.2 Gen 1 Hub w/ Port Status LEDs

Name: 12 Port Industrial USB 3.2 Gen 1 Hub w/ Port Status LEDs
Brand: CoolGear
SKU: USBG-12U3ML
Price: 142.95 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Model No. USBG-12U3ML

Industrial Grade | +9~30V DC Input | Surface Mountable | 5 Gbps | LED Indicators

Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.

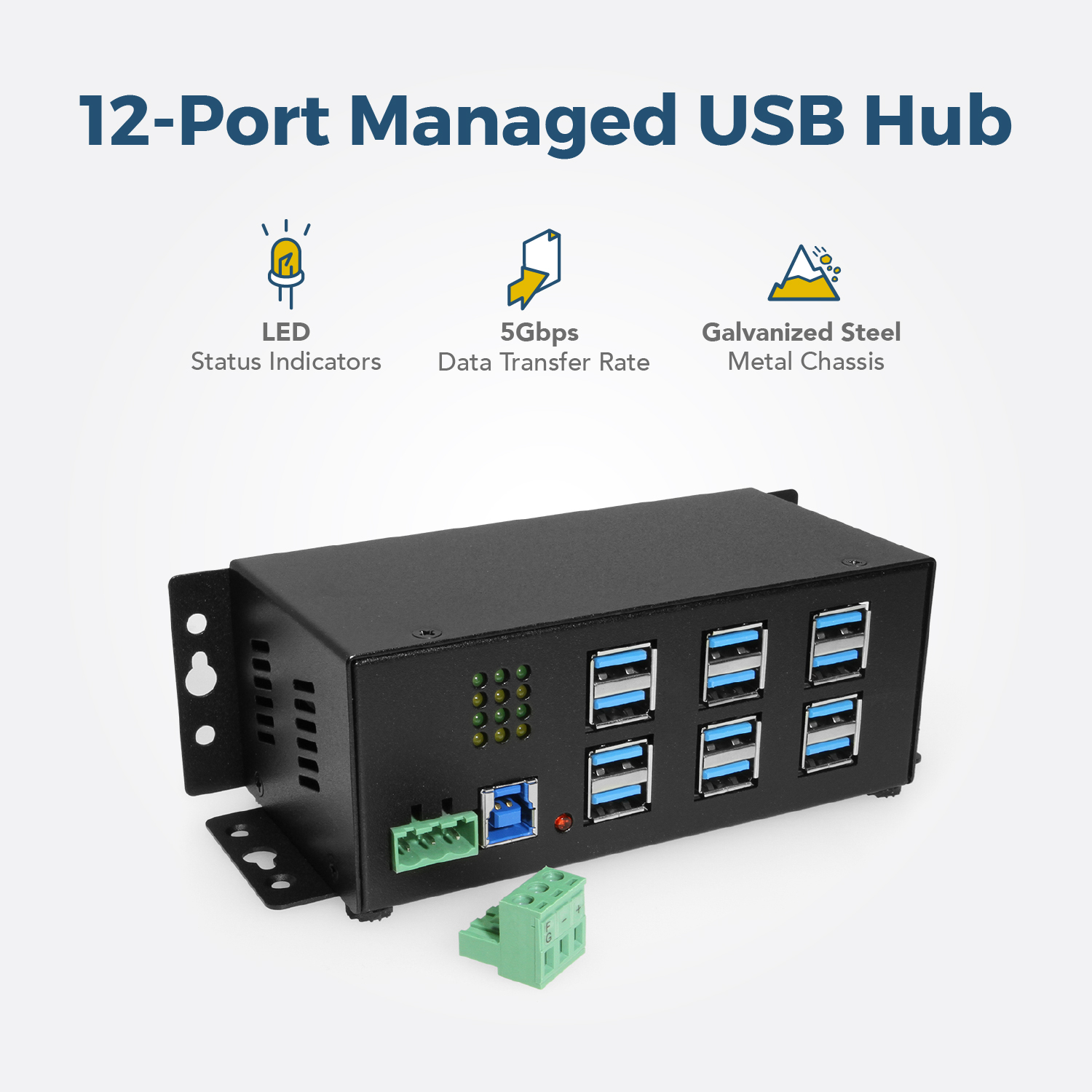

Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 12-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
Check Your Ports’ Status: Quickly check the status of each port individually with built in LED indicators.

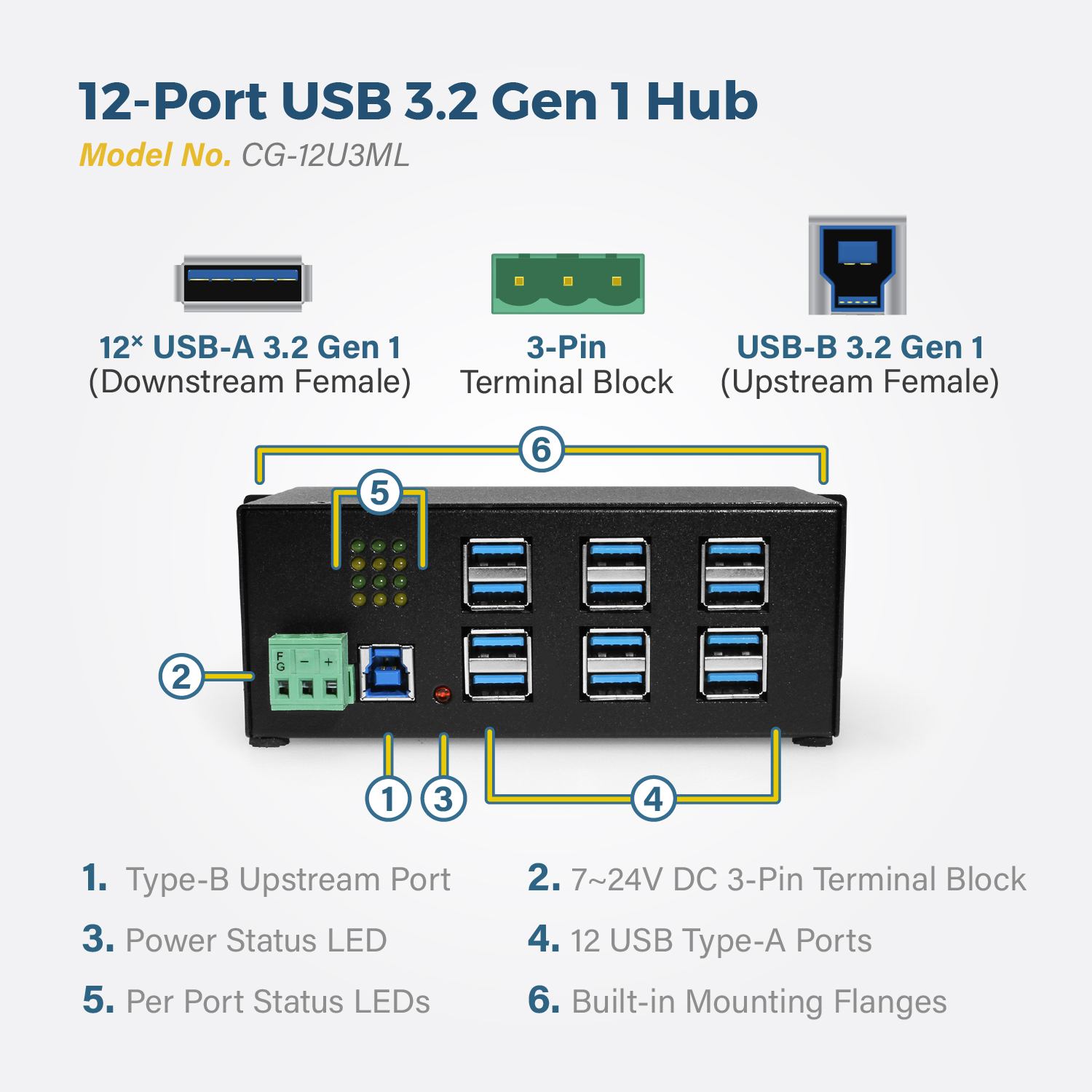

Upstream: 1 USB port, Type B connector
Downstream: 12 USB ports, Type A connectors
Power Connector: 3-Pin Terminal Block
Mounting Options: Wall & Surface
Supply Current: 900mA USB Bus Power for Each Down-stream Port

$142.95

Bulk Pricing

Model No. USBG-12U3ML

In stock

Volume Pricing

Units	Discount	Price
1 - 4	—	$142.95
5 - 11	2 %	$140.09
12 - 24	5 %	$135.80
25 - 49	7 %	$132.94
50+	10 %	$128.66

Need some help? Contact us.

Product Documentation

Quick Links:

Description

Introduction

Designed to provide quick and easy access, the USBG-12U3ML provides twelve type “A” downstream ports for connecting USB peripherals, devices, or other USB hubs. A single type “B” upstream port connects to the host computer or another USB hub, enabling up to 127 devices to be connected by cascading multiple hubs. Configured directly by the operating system, the 12-Port USB 3.0 Powered Hub operates seamlessly with both Microsoft Windows and Apple Macintosh Operating Systems.

The USBG-12U3ML 12-Port USB 3.0 Powered Hub is targeted at Industrial Application users for both PC and Mac that are expanding the number of USB ports on their system. The all metal chassis provides a rugged and durable construction that can withstand operating conditions in both the Automotive and Marine industries. The 12-Port USB 3.0 Powered Hub can be wall-mounted or installed onto a DIN-Rail for convenient access to the port connections.

The USBG-12U3ML USB 3.0 hub can be powered with a three wire terminal block connector (9~30V DC) with AC Adapter Required, the AC adapter is sold separately for peripherals requiring more power consumption (pictured below). The USBG-12U3ML is a Super-Speed USB 3.0 12-port hub that is backward compatible with USB 2.0 and 1.1. It provides an out of the box industry standard that allows connection of up to 12 USB peripherals or devices to your USB ready PC or Mac. External power supplies are sold separately for the USBG-12U3ML Hub.

As a standard USB hub, the USBG-12U3ML buffers USB data from any attached peripheral in compliance with USB specifications to provide an invisible extension of the USB bus. Supporting both low speed (1.5Mbps and 12Mbps), High-Speed (480Mbps), & Super-Speed (5,000 Mbps) devices, each port creates a bridge between the peripheral and host computer.

Key Features and Benefits

12-Port Expansion: Connect up to 12 USB 3.0 peripherals simultaneously, providing greater flexibility in your setup.
SuperSpeed USB 3.0 Performance: Supports data transfer speeds up to 5Gbps, backward compatible with USB 2.0 and 1.1 devices for versatile use with legacy equipment.

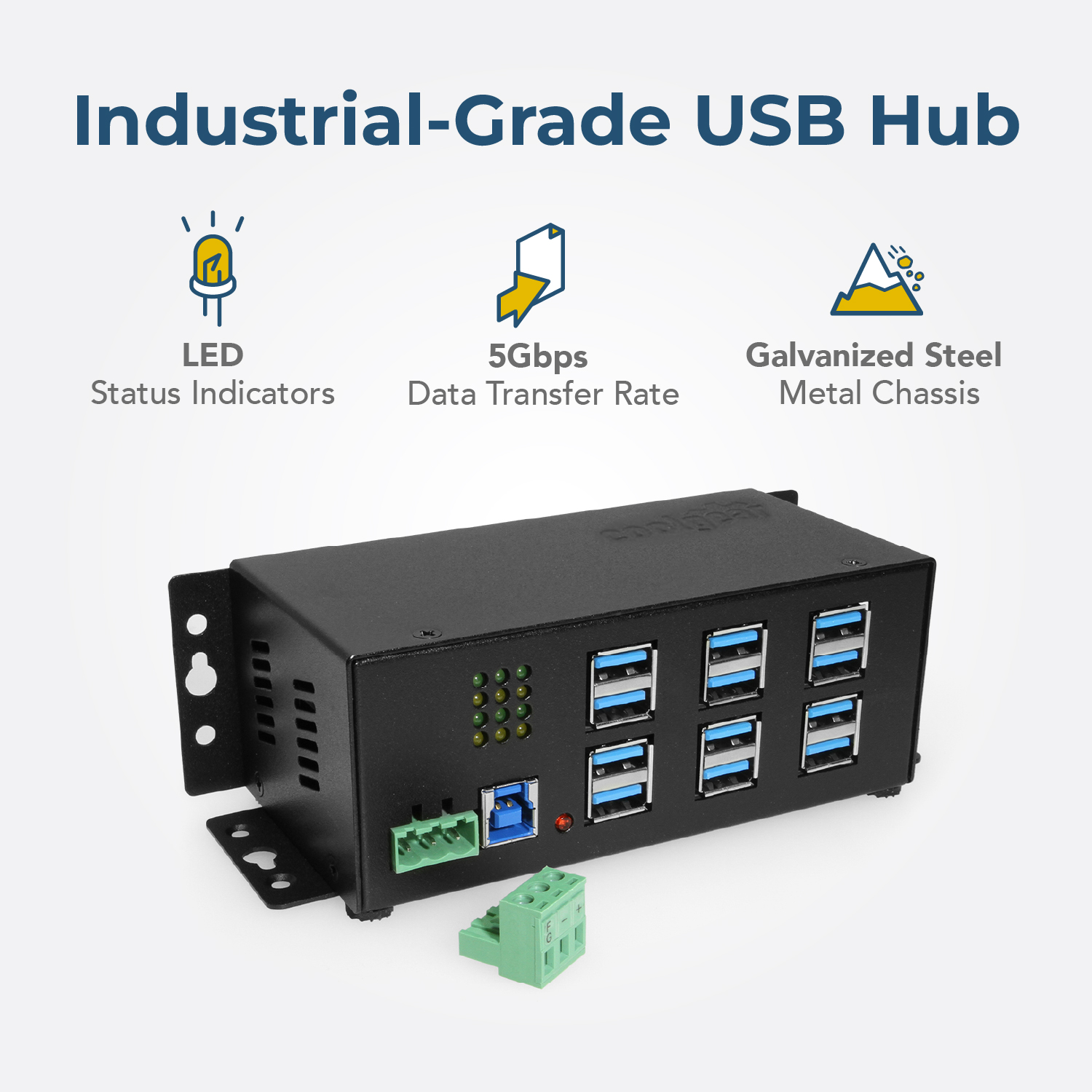

Rugged Industrial Design: Housed in a durable all-metal chassis, this hub is engineered for harsh environments, ensuring reliable operation in demanding industries.
Flexible Power Options: Supports a 9-30V DC terminal block input (power adapter sold separately) to meet higher power consumption needs.
Multi-Device Support: Easily connects keyboards, mice, printers, cameras, scanners, and more, enabling a wide range of peripheral configurations.

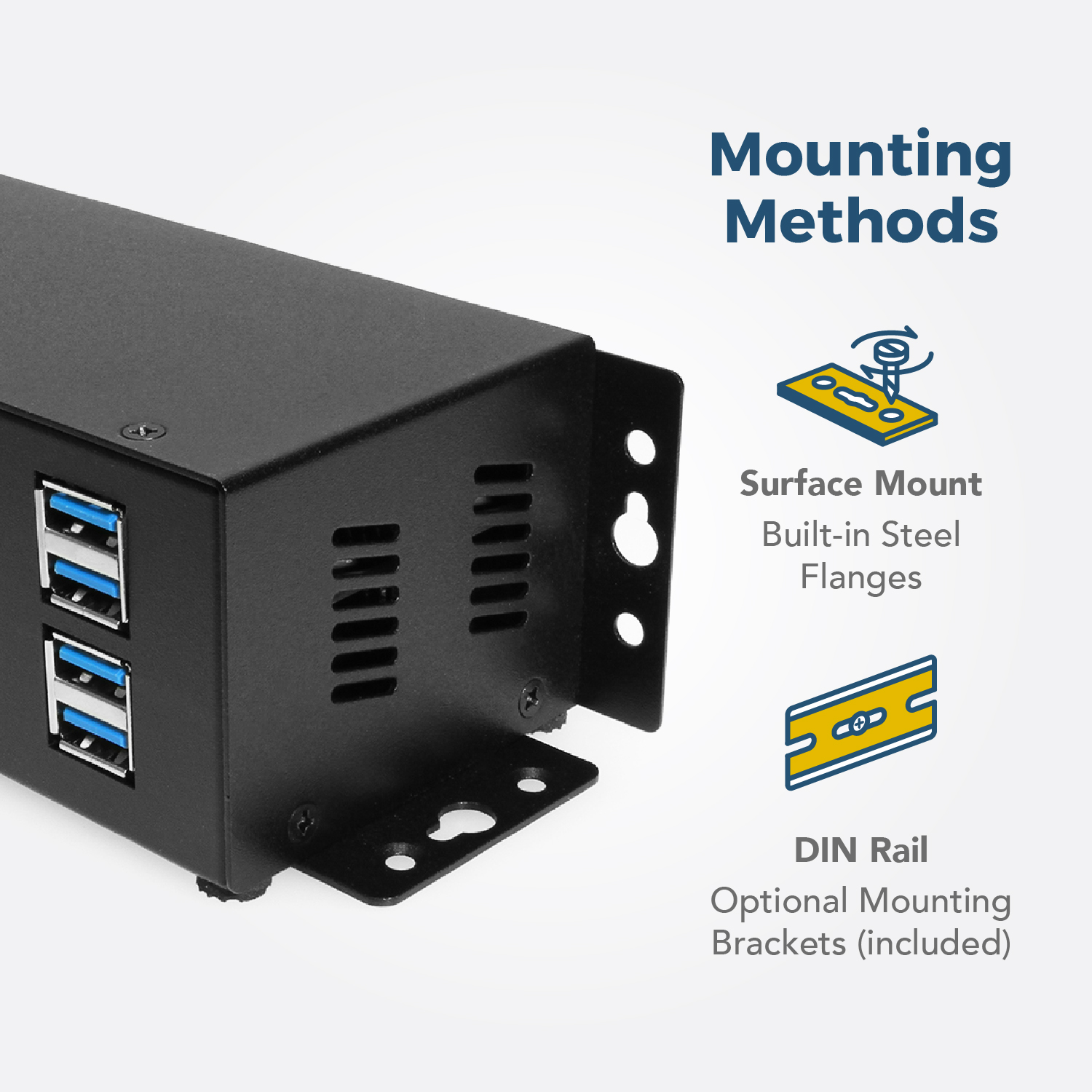

Mounting Versatility: Includes hardware for both surface and DIN-Rail mounting, allowing convenient, secure installation in diverse environments.
Port Status Indicators: Each port features an individual LED to provide clear status visibility for device connections and power.
Full OS Compatibility: Operates seamlessly across Windows (7, 8, 10, 11), Linux, and Mac OS 10.X systems for hassle-free integration.

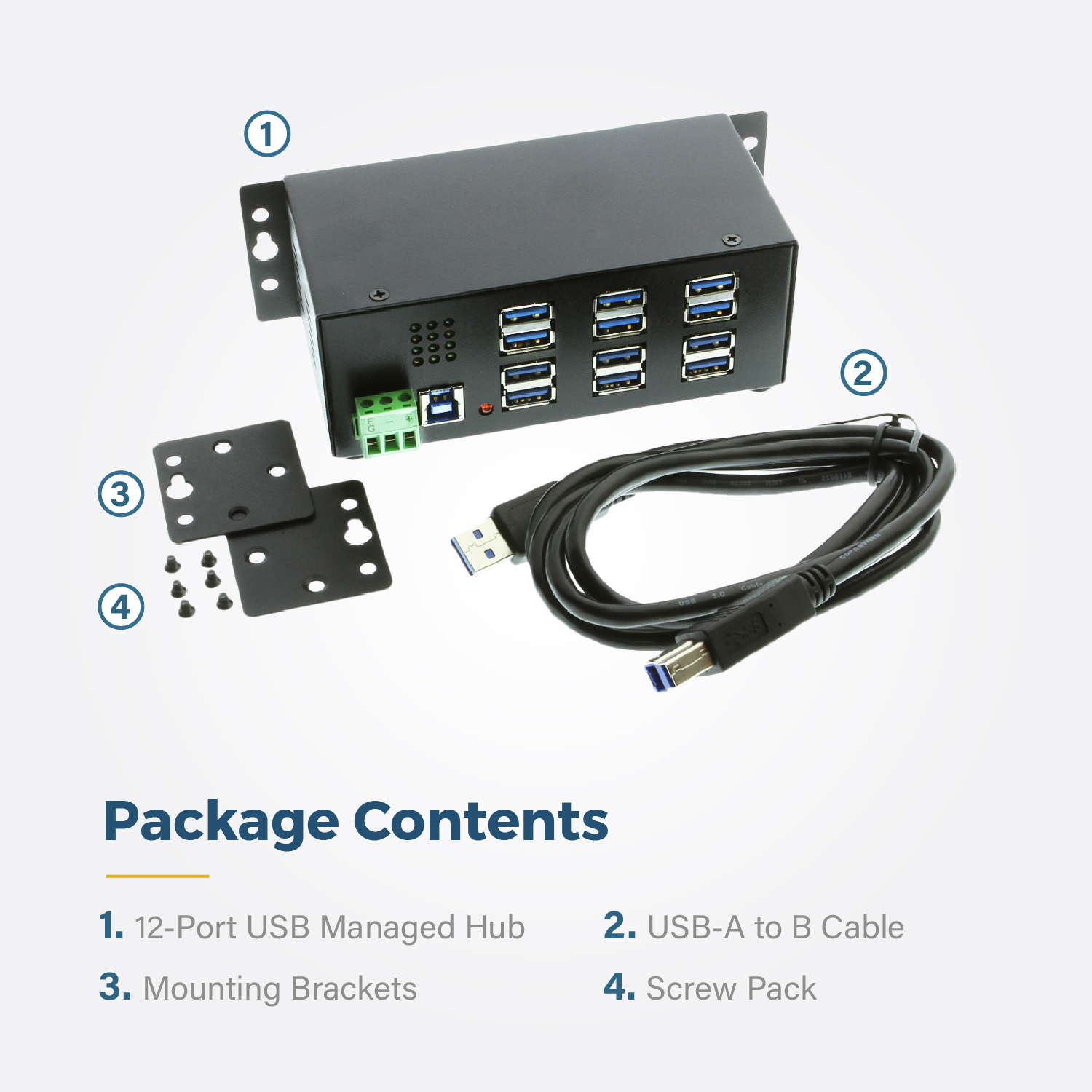

Package Contents:

12 Port USB 3.0 Hub
USB 3.0 A to B cable
Mounting Plates
Screw Pack
3 pin Phoenix power connector

*Power Supply not included; available as an optional accessory: Model No. 12V7A3P-B

*Surface Mounting screws not included.

Use Cases

Use Cases:

Industrial Automation

Centralized Machine Control: Manage and control machinery from a single hub in production lines or factory floors.
Industrial PC Integration: Seamlessly integrate with industrial PCs to ensure secure communication between multiple devices.

Commercial Installations

Kiosks & POS Systems: Support high-demand commercial setups, including kiosks and point-of-sale systems with reliable USB connections.
Digital Signage: Perfect for digital signage setups, providing multiple USB connections for large-scale installations in retail or corporate environments.

Research & Development Labs

Lab Equipment Connectivity: Connect lab equipment such as data loggers, sensors, and instruments for streamlined data collection and analysis.
Testing Environments: Ideal for environments requiring multiple high-speed connections for research and development testing.

Quick Specs

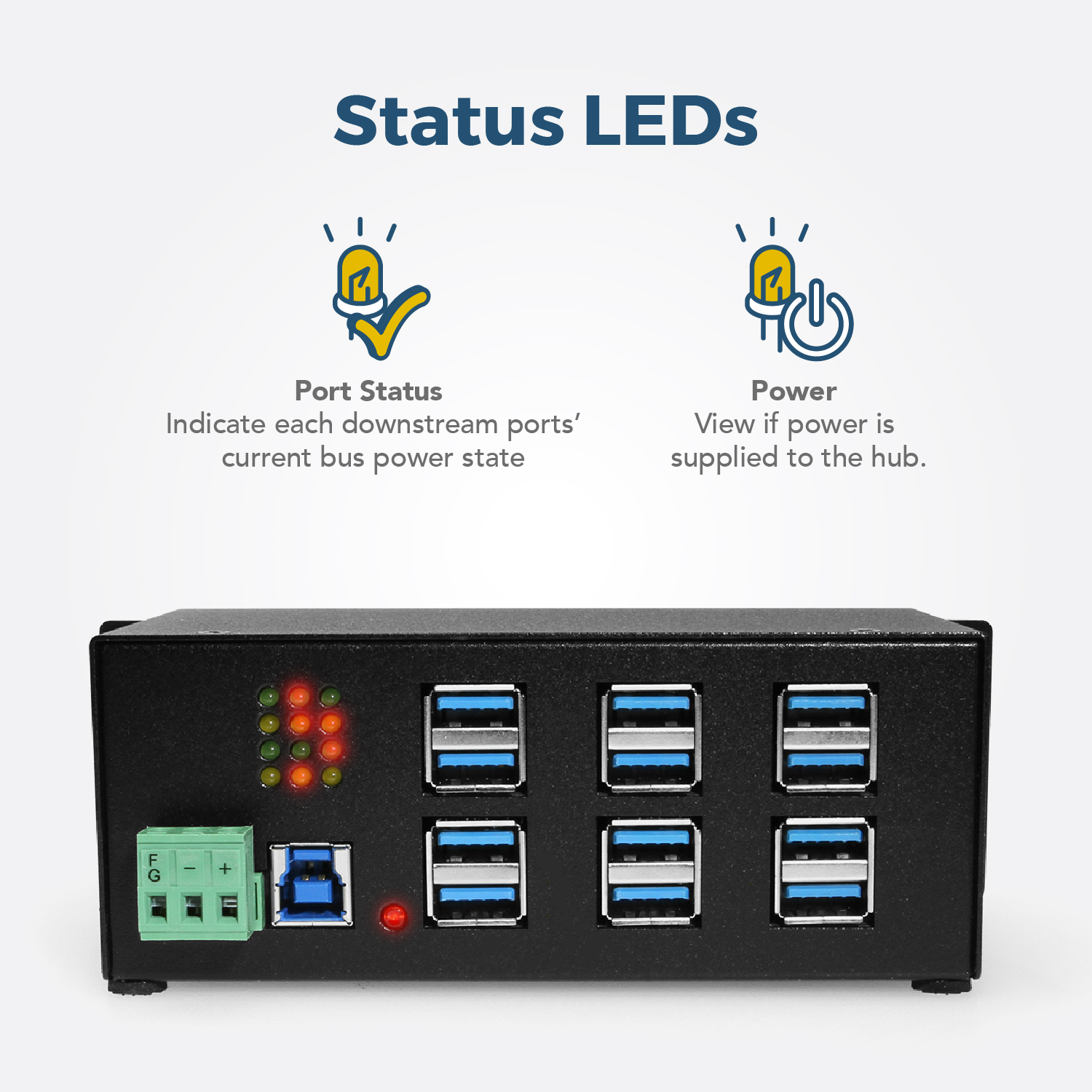

LEDs provide port status for each port and power status.
Compliant with USB Specification Revision 3.0
Backwards compatible with USB Specification Revisions 2.0 & 1.1
Supports High-speed and or Full-speed Packet
Protocol Sequencer for Endpoint 0/1
Provides 12 Downstream Facing USB 3.0 Ports
Supports 5,000Mbps, 480Mbps, 12Mbps and 1.5Mbps Speed
Multi Transaction Translator per Hub and Supports 12 Concurrent Non-periodic Transactions
Supports Self-powered Mode
Supports Downstream Port Status with LED
High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
Product Dimensions: 5.132in(L) (6.132in w/flange) x 2.608in(W) x 2.104in(H)

Device Support:

Supports Downstream Port Status with LED USB Devices Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more USB devices I/O Hardware
Supports 12 external USB 3.0 Type-A connectors and 1 Type-B Upstream connector.
Supports a 3-pin Terminal Block Connector for external power input from AC adapter
Includes USB 3.0 Cable

OS Support:

Windows Windows 7, and Windows 8, 10, 11
Linux and Mac OS 10.X

Environmental:

Operating Temp.: 0 to 55C (32 to 131 F)
Storage Temp: -20C to 85C (-4 to 185 F)
Operating Humidity: 5 to 95% RH

Specifications

Product Specifications

Power

Input Voltage	+9~30V DC
Power Source	3-Pin Terminal Block, AC Adapter Not Included
Idle Consumption	18.72mA @ 12V Terminal Power
External Power Required	Yes
Charging Protocols	Charging Downstream Port (CDP)
Per USB Port Current	900mA maximum

Compliance

Country of Origin	Taiwan
Certifications	TAA Hubs, RoHS

Physical Characteristics

Color	Black
Item Dimensions (L × W × H)	5.13 × 2.61 × 2.03 in.
Item Weight	0.825 lbs.
Mounting Style	Surface / Wall Mount, Din-Rail Mount
Ports	12 USB Ports
Material of Construction	Galvanized Steel

What's in the Box

Package Contents

3-Pin Terminal Block, Hub, Screw Pack, USB-A to USB-B Cable

Software

OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental

Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Humidity	5% ~ 95% (non-condensing)

Product Information

Warranty

1 year from date of purchase

Hardware

Chipset	GL 3522
LED Indicators	Port Status, Power
Downstream USB Ports	12 Type-A Female USB
Upstream USB Ports	1 Type-B Female USB

Performance & Safety

Max Data Transfer Rate	5Gbps
Over Current Protection	Yes
Over Voltage Protection	Yes per buck

Other Data

USB Interface	USB 3.2 Gen 1
UPC	729440692100
Series	DRS-UH (DIN-Rail Series Hubs)
Weight	1.25 lbs
Dimensions	8.5 × 5.5 × 2.5 in

UPC: 729440692100

Reviews (1)

1 review for 12 Port Industrial USB 3.2 Gen 1 Hub w/ Port Status LEDs

Rated 5 out of 5

Pilot D. – August 3, 2018

Good solid construction. You will need to buy the AC adapter to allow powered USB ports (3 pin connector)

Add a review Cancel reply

Support

Product Documentation & Drivers

Product Documentation

Need drawings, CAD files, or other compliance documentation? Click HERE

Hubs F.A.Q.

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

Can the hub be used without a power supply?

View Answer
In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.
After waking up from sleep mode, my computer/host no longer recognizes my USB device.
View Answer
If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

To prevent this, follow the steps below (depending on your operating system).

Windows 10 / 8
1. On your keyboard, press the Windows key + X and select Control Panel.
2. Click Hardware and Sound, then click Power Options.
3. Click Change plan settings for the plan you want to change.
4. Click Change advanced power settings.
5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
6. Click OK to apply the setting.
Note: You may need to disconnect and re-connect your USB device after applying these settings.

Windows 7 / Vista
1. Click the Start button and select Control Panel.
2. Click Hardware and Sound, then click Power Options.
3. Click Change plan settings for the plan you want to change.
4. Click Change advanced power settings.
5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
6. Click OK to apply the setting.
Note: You may need to disconnect and re-connect your USB device after applying these settings.

Windows XP
1. On your desktop, right-click the My Computer icon and select Properties.
2. Click the Device Manager tab.
3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
4. Right-click the first USB Root Hub device and select Properties.
5. Click the Power Management tab.
6. Clear the box next to Allow the computer to turn off this device to save power.
7. Click OK to apply the setting.
8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.
Note: You may need to disconnect and re-connect your USB device after applying these settings.
The hub is properly hooked up, but is not functioning correctly. What can I do?
View Answer
Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:
- USB Cable by using it in another setup, or trying another cable.
- Host USB Port by connecting another device or thumb drive.
- Connected Peripherals by connecting directly to the host.
Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:
- Installing the required drivers for the USB peripheral.
- Install the most recent drivers for the USB controller and/or motherboard chipset.
USB hubs do not require drivers or software.

Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:
- Attaching external power to the peripheral, if required.
- Confirming if the peripheral functions on a standard USB port.
- Testing if basic USB peripherals work, such as keyboards or mice.
How can external power be connected to the industrial USB hub?
External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

How to properly choose a power supply.

To determine the power requirements, the equation to use is P = 5 * I * N, where:

P is the power wattage.

5 is the USB port voltage.

I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

N is the number of USB ports.

As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

I is the current of the power supply.

P is the calculated power of the hub.

V is the chosen voltage of the power supply

Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.

Our full collection of power adapters can be found here.
