ChargeIT! Mini Desktop 75W Dual Port USB-A & USB-C PD Charger w/ PPS & QC4.0 Support

View Product Documentation, CADs, & Downloads

ChargeIT! Mini Desktop 75W Dual Port USB-A & USB-C PD Charger w/ PPS & QC4.0 Support

Model No. CG-CMD60W

Industrial Grade | +9~24V DC Input | Over Voltage & Current Protection

Simultaneous Power: Charge 2 iPads, iPhones or other USB-charged in charge mode devices, while the built in PD chipset dynamically detects devices to deliver optimum power level for maximum battery life and performance.
Quick Charge: Provides up to 75W of combined charging. The USB-A port supports QC 3.0 while the USB-C port supports QC 4.0.

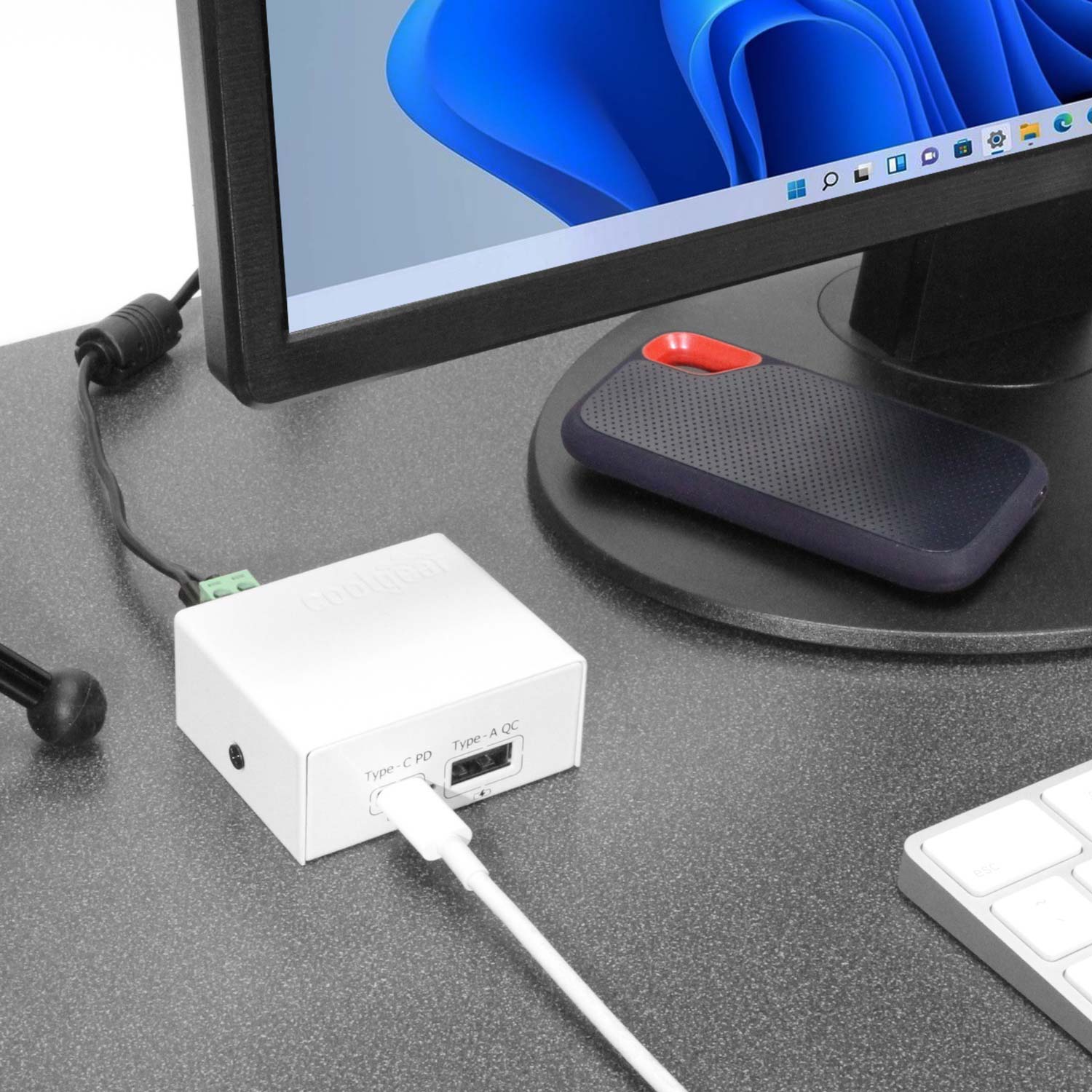

Workstation Charging: Use the optional rubber feet for desktop placement or the included mounting panel for surface mount installs.
Superior Build Quality: Housed in a rugged metal chassis, the 2-port charger hub is perfect for installations on desks, in offices, labs, studios, and classrooms. Perfect for personal workstations.
Downstream: 1 USB Type-A QC Port, 1 USB Type-C PD Port
Power Connector: 2-Pin Terminal Block
Mounting Options: Wall, Surface, & Desktop
LED Indicators: Power

$69.95

Bulk Pricing

Model No. CG-CMD60W

In stock

Volume Pricing

Units	Discount	Price
1 - 4	—	$69.95
5 - 11	2 %	$68.55
12 - 24	3 %	$67.85
25 - 49	5 %	$66.45
50+	7 %	$65.05

Need some help? Contact us.

Product Documents

Product Documentation

Quick Links:

Description

Introduction:

Coolgear’s ChargeIT! Mini Desktop USB PD Charger features a new, white metal chassis with 1 USB Type-A and 1 USB-C charging port. This high-power dual port adapter uses the Cypress CCG3PA, a highly integrated USB C port controller that complies with the latest USB C and PD standards. Intended for use in various workstation installs, your adapter supports one USB Type-C port and one USB QC 4.0 Type-A Charger port for normal charging.

Industry professionals can easily keep their laptops, tablets, and other essential devices charged within their workstations. Housed in a rugged metal chassis, this powerful 75W 2-port charger hub is built for installations on desks, in offices, labs, studios, and classrooms. Perfect for personal workstations, the charger features optional non-skid rubber feet and an optional surface mounting plate to cover your mounting needs.

This Dual Port PD Power Injector Charger adapter with 9~24Volt DC input provides USB Type-A with True support for QC4.0 as well as Samsung/LG/Apple up to 2.4A. Also, the adapter comes equipped with integrated voltage regulation, system-level fault, and ESD protection.

Mount your charger where you want it with the optional rubber feet for desktop placement or the included mounting panel for surface mount installs.

Supports USB PD3.0 including Programmable Power Supply

Programmable Power Supply (PPS) capability allows for small step-wise changes in voltage and current. PPS capability allows for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction).

The USB PD 60W adapter supports full-featured PD profiles on USB 3.2 Gen 1 Type-C Port 60 Watt maximum output. It connects to a standard 12V automotive power input or industrial 24V power input via 2-Pin Phoenix Connector. The USB PD adapter with type C port supports up to 60 Watts of PD Power, 5~20 Volt profiles and compatible with ALL USB power delivery devices.

Features:

Dual Port Charger:

Dual USB Port Industrial Charger PCB: USB C (Type-C) port with power delivery + USB-A QC 4.0 Port
USB-A with Quick Charge 4.0 technology that provides up to 18W of charging power
USB-C with Power Delivery CYPD CCG3PA Chipset enables up to 60W.

Power Output Specifications:

60 Watts USB C PD (5V/3A, 9V/3A, 15V/3A, 20V/3A)
18 Watts USB A QC 3.0 (9V 2A, 6V 3A)
78 Watts Peak Total Combined Power Output (75 Watts Nominal Total Combined Output)

Power Delivery (PD) Integration with Programmable Power Supply: Intelligently detects your device and delivers the optimal voltage/current for a specific device. Meets new energy efficiency requirements of DOE Level VI – the highest energy efficiency rating. Equiped with the advance circuit protections to prevent overcharging and a built-in LED light indicator (up to) helps to signify charge is ready to use.

Package Contents:

75W Dual Port White USB PD Charger
Power Adapter with Power Cord
Surface Mounting Plate
Non-Skid Rubber Feet
Screw Pack

*Surface Mounting screws not included.

Optional Accessories

USB Panel Mount Extension 1 x Type C 3.0 and 1 x USB 3.0 A Male to Female Cable

USB Panel Mount Extension 1 x Type C 3.0 and 1 x USB 3.0 A Male to Female Cable, ideal for RV, Car, Boat, Motorcycle,…

Model# CG-USB3PXAC-3ft

$16.95

In stock

1.5ft (0.5m) USB Single Screw Lock Type-C to C Male Cable 10GB Data 5A Power

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…

Model# CG-G2CCTSSL-05M

$17.95

In stock

3ft (1m) USB Single Screw Lock Type-C to C Male Cable 10GB Data 5A Power

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…

Model# CG-G2CCTSSL-1M

$18.95

In stock

6ft (1.8m) USB Single Screw Lock Type-C to C Male Cable 10GB Data 5A Power

Super Fast Speeds: This USB cable is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, super speed, high…

Model# CG-G2CCTSSL-1.8M

$19.95

In stock

Specifications

Product Specifications

Power

Input Voltage	+9~24V DC
Power Source	2-Pin Terminal Block
Adapter Input Current	1.5A
Adapter Input Voltage	100~240V AC
Adapter Output Current	6A
Adapter Output Voltage	12V DC
External Power Required	Yes
Charging Protocols	Apple 2.4A, Dedicated Charging Port (DCP), QC3.0, QC4.0, Samsung
Voltage Profiles	5V/3A, 7V/2.5A, 9V/3A, 12V/3A, 15V/3A, 20V/2.99A

Compliance

Country of Origin

China

Physical Characteristics

Color	White
Item Dimensions (L × W × H)	2.38 × 1.97 × 1.03 in.
Item Weight	0.281 lbs.
Mounting Style	Desktop, Surface / Wall Mount
Ports	2 USB Ports
Material of Construction	Steel

What's in the Box

Package Contents

Mounting Plate, Power Adapter, Power Cable, Rubber Feet, Screw Pack, USB Charger

Environmental

Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20 to 75°C (-4 to 167°F)
Humidity	5% ~ 95% (non-condensing)

Product Information

Warranty

1 year from date of purchase

Hardware

Charging Protocols	Apple 2.4A, Dedicated Charging Port (DCP), QC3.0, QC4.0, Samsung
LED Indicators	Power
Downstream USB Ports	1 Type-A Female USB, 1 Type-C Female USB
