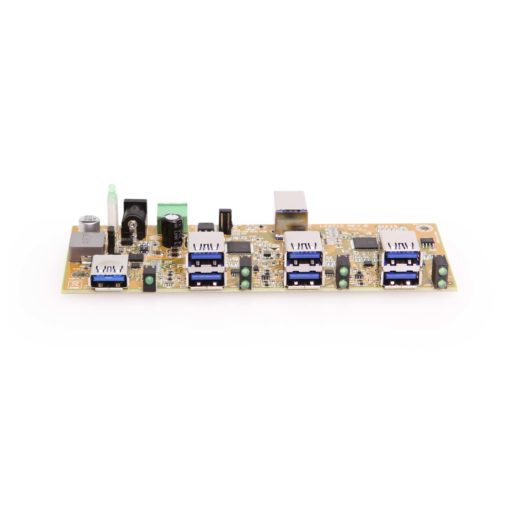

7 Port USB 3.2 Gen 1 Hub PCBA w/ 15KV ESD Surge Protection & Port Status LEDs

Model No. CG-7PU31HB-PCBA

+7~24V DC Input | 5 Gbps

Protect Your Equipment: The 7-port hub supports 15KV ESD surge protection for each port to keep your connected peripherals safe from harm.
Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with 2.0 / 1.1.
Upstream: 1 USB port, Type B connector
Downstream: 7 USB ports, Type A connectors
Power Connector: 2-Pin Terminal Block, DC Barrel 2.5mm ID × 5.5mm OD
LED Indicators: 7 LEDs for each downstream port to indicate the current bus

$104.95

Bulk Pricing

Model No. CG-7PU31HB-PCBA

In stock

Need some help? Contact us.

Product Documentation

Quick Links:

Description

Introduction:

Coolgear’s 7 Port USB 3.2 Gen 1 PCBA is a compact solution using the newest technology. It expands your USB port usage by 7 from your USB 3.2 Gen1 host port. This is a self powered hub board uses a +7~24V DC 2-pin terminal block power connector.

The 7-Port USB 3.2 Gen 1 hub board supports up to 5Gbps of data transfer but is backward compatible with legacy USB 2.0/1.1/1.0 speeds. This USB 3.2 Gen 1 hub is in compliance with USB battery charging for CDP and DCP modes. The hub supports 1.5A per port with a safety of 2A Thermal Shutdown protection.

Features:

Compliant with USB 3.2 Gen1 Specifications
1 USB-B Upstream and 7 USB-A Downstream USB 3.2 Gen1 Facing Ports
Supports 5Gbps (Super-speed), 480Mbps (High-speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
Supports 15KV ESD Surge Protection for Each Port
Multi Transaction Translators (TT) per Hub
Support USB Battery Charging: CDP and DCP Modes
1.5A per USB port with thermal shutdown at 2A per port

Environmental Specifications:

Operating Temperature: 0 to 55°C (32 to 131°F
Operating Humidity: 5 to 95% RH

Package Contents:

7-Port USB 3.2 Gen 1 Hub PCBA

Specifications

Product Specifications

Power

Input Voltage	+7~24V DC
Power Source	2-Pin Terminal Block, AC Adapter Not Included, DC Barrel Jack 2.5mm ID × 5.5mm OD
Idle Consumption	37.67mA Bus Powered, 68.2mA @ 12V Terminal Power
External Power Required	No
Charging Protocols	Charging Downstream Port (CDP), Dedicated Charging Port (DCP)
Per USB Port Current	1.5 A

Compliance

Country of Origin	Taiwan
Certifications	REACH, TAA Hubs, RoHS

Physical Characteristics

Item Dimensions (L × W × H)	6.03 × 2.34 × 1.05 in.
Item Weight	0.04 lbs.
Ports	7 USB Ports

Software

OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental

Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20 to 75°C (-4 to 167°F)
Humidity	5% ~ 95% (non-condensing)

Product Information

Warranty

1 year from date of purchase

Hardware

Chipset	GL 3522
LED Indicators	Port Status, Power
Downstream USB Ports	7 Type-A Female USB
Upstream USB Ports	1 Type-B Female USB

Performance & Safety

ESD Protection	15KV Surge Protection for Each Port
Isolated/Surge Protected	Yes
Max Data Transfer Rate	5Gbps
Over Current Protection	Yes
Over Voltage Protection	Yes per buck

Other Data

USB Interface	USB 3.2 Gen 1
Connector	2-Pin Terminal Block, USB 3.0 Type-B Female, USB Type-A Female
UPC	045079163546
Weight	0.1375 lbs
Dimensions	7 × 4.75 × 0.8 in
