USB-C PD from DC PoE with 2.1mm Jack – With ESD Protection

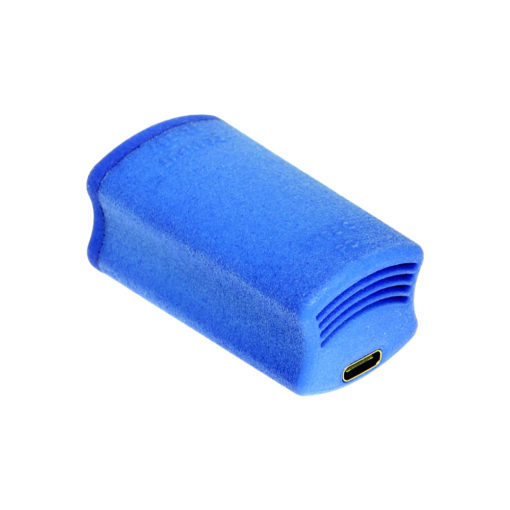

Use the 45W DC to USB-PD Power Pod adapter with an existing POE Network. Connect the POE injector to a splitter by any type of Ethernet patch cable i.e. cat 5/6. The splitter’s barrel connector (2.1mm) is attached to the Power Pod’s input allowing a USB PD connection through the Type-C port on the other end.

The USB-PD cable from the Power Pod can be connected to any USB Type-C device to power and charge that device. The splitter feeds up to 24V of power to the Power Pod, providing USB C PD at various profiles including; 5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A.

The application flexibility is incredible as the Power Pod allows an installation where only one power source is needed at the POE injector point. There is NO NEED to have additional power outlets installed in the home, office, or warehouse setting.

Testing

iPhone 8, Pixel and Pixel 2, Google Wifi, Nest Cam, iPad Pro 12.9”, Samsung S8, Eero Pro, and many others to confirm full compatibility.

The PoE injector’s RJ45 Ethernet port connects to the splitter, the Ethernet patch cable allows you to make your Power Pod connection up to 100 meters away without any problems. Your USB C PD application can literally be run anywhere you want with only one power outlet.

Advantages

• Introduces cost effectiveness by eliminating the need for additional electronics to power the device, or devices connected to it. Additional power outlets do not have to be installed.
• Great for security camera applications such as Nest Camera installation or POS Terminal.
• It can operate any USB C device that accepts power delivery through its USB Type-C port.
• Allows phenomenal operating distances (100 meters or more) from the POE injector’s RJ45 connection.
• Makes use of Cat 5, Cat 5e, Cat 6, Cat 6a. STP or UTP cables

45W Type-C USB-PD Power Pod Specifications

• SB Type-C PD Profiles: 5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A
• Type-C port ESD Protection
• Input: 5.5 x 2.1mm Barrel 18-24V DC, Output: USB-C Female
• Operating Temperature: 10 to 60°C
• Humidity: 5-90%
• 5.5 x 2.1mm Barrel Connector at 12-24V DC

High efficiency and good thermal Characteristics

• Small size adapter
• support output CV/CC
• Very High Efficiency up to 97%
• Variable voltage input :20 – 28V
• Over Voltage Protection
• Under Voltage Protection
• Over Temperature Protection
• Support BC1.2, Apple, Samsung
• Support Qualcomm QC2.0, QC3.0 (Certificate No.: 4787930010-2)
• Support MTK PE+1.1 and MTK PE+2.0
• Support Huawei Fast charge: FCP and SCP
• Support Samsung fast charge : AFC
• Support Spreadtrum fast charge : SFCP
