4-Port 320W USB 3.2 Gen 2 PD 3.1 EPR Hub w/ 140W PD EPR Upstream & ESD Surge Protection

View Product Documentation, CADs, & Downloads

4-Port 320W USB 3.2 Gen 2 PD 3.1 EPR Hub w/ 140W PD EPR Upstream & ESD Surge Protection

Model No. CG-5PDU3EPR-4PH

Upstream Female Port: 1x USB-C PD 3.1 EPR Connector
Downstream Female Port: 3x 60W USB-C Power Delivery Spec 3.0 Connectors, 1x USB-C Power Delivery Spec 3.1 EPR Connector
Compatible with single and double screw locking USB-C cables
Supply 140W (EPR) of power to one connected peripheral as well as 140W (EPR) to the host computer
Supply 60W of power to three connected peripherals
USB 3.2 Compliant to Gen 2 Specifications, offering 10Gbps data transfer rates
Variable Voltage Input of +24V DC
Built-in surface & wall mounting flanges

**Notice: This product is currently under development and is only available for purchase in limited quantities to ensure availability for all customers wishing to evaluate the product. Development products are intended for evaluation and testing purposes only and are not meant to be treated as full, finished products. Designs may change at any time. For more information please refer to the Development Product Terms. Read our full DEVELOPMENT PRODUCT TERMS here.

$219.95

Bulk Pricing

Model No. CG-5PDU3EPR-4PH

In stock

Need some help? Contact us.

Product Documents

CG-5PDU3EPR-4PH - Technical Data Sheet

Quick Links:

Description

Introduction:

Coolgear’s CG-5PDU3EPR-4PH USB 3.2 Gen 2 USB hub features ESD protection, 1 Upstream EPR port supplying 140W, 1 Downstream EPR port supplying 140W, and 3 Downstream ports offering 60 Watts of power. The CG-5PDU3EPR-4PH features a voltage input of 24V DC supplied through a 6-Pin Molex Connector. Each port is individually protected to help protect your peripheral investments.

Features:

Upstream Female Port: 1x USB-C PD 3.1 EPR Connector
Downstream Female Port: 3x 60W USB-C PD 3.0 Connectors, 1x USB-C PD 3.1 EPR Connector
Supply 140W (EPR) of power to one connected peripheral as well as 140W (EPR) to the host computer
Supply 60W of power to three connected peripherals
Power Delivery Spec 3.0 present on 3 downstream ports
Power Delivery Spec 3.1 Extended Power Range present on 1 downstream port and the upstream port
USB 3.2 Compliant to Gen 2 Specifications
Compatible with single and double screw locking USB-C cables
Multi-platform compatible with a wide range of laptops that use USB-C
Supports 10Gbps, 5Gbps, 480Mbps, 12Mbps, and 1.5Mbps speeds
ESD protection per port: ±15 kV(Air), ±15 kV(Contact)
Input Voltage of +24V DC

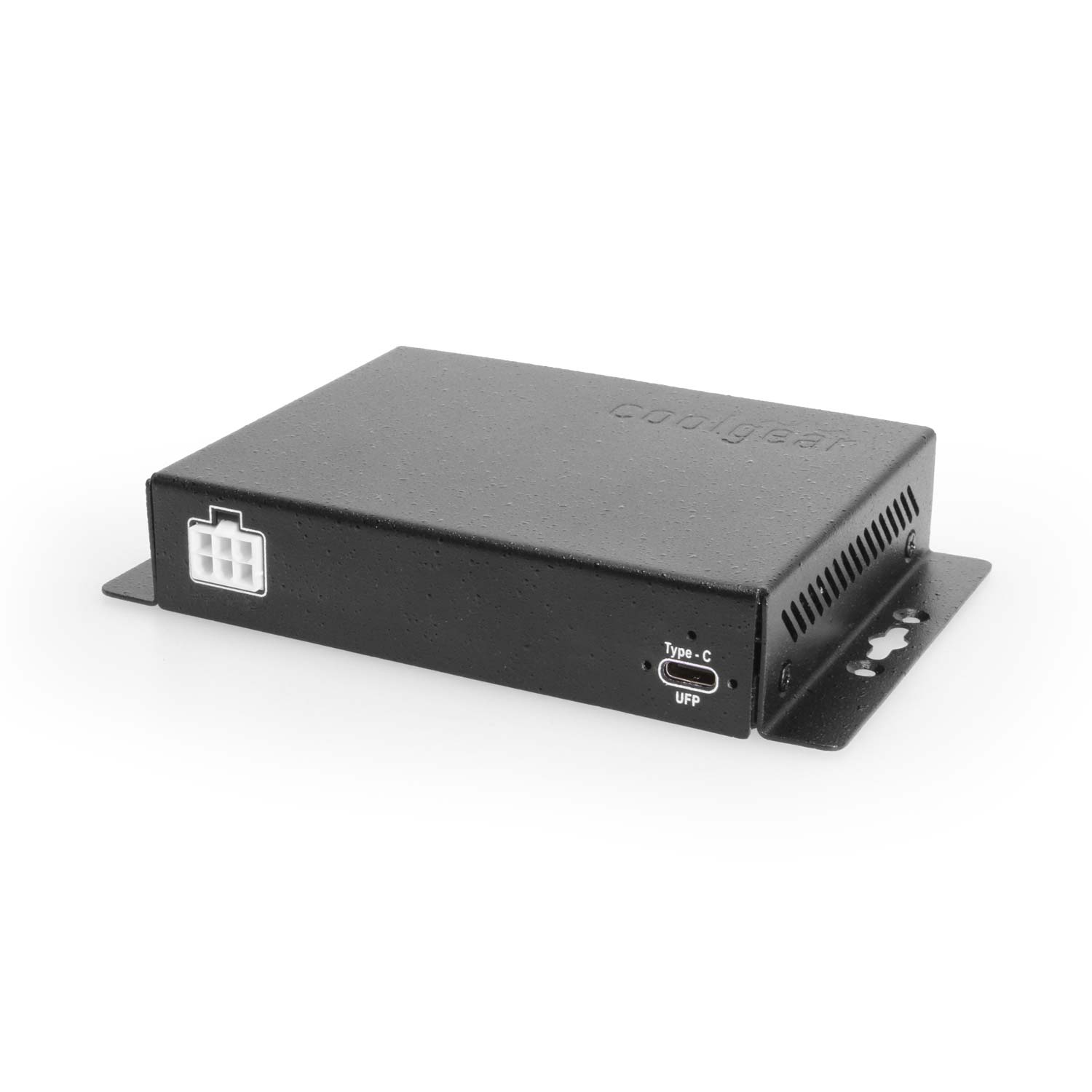

DC Input through 6-Pin Molex Mini-Fit Jr. connector
Built-in surface & wall mounting flanges
Quickly check your ports’ status with built in LED indicators

Package Contents:

4-Port 320W USB 3.2 Gen 2 PD 3.1 EPR Hub
