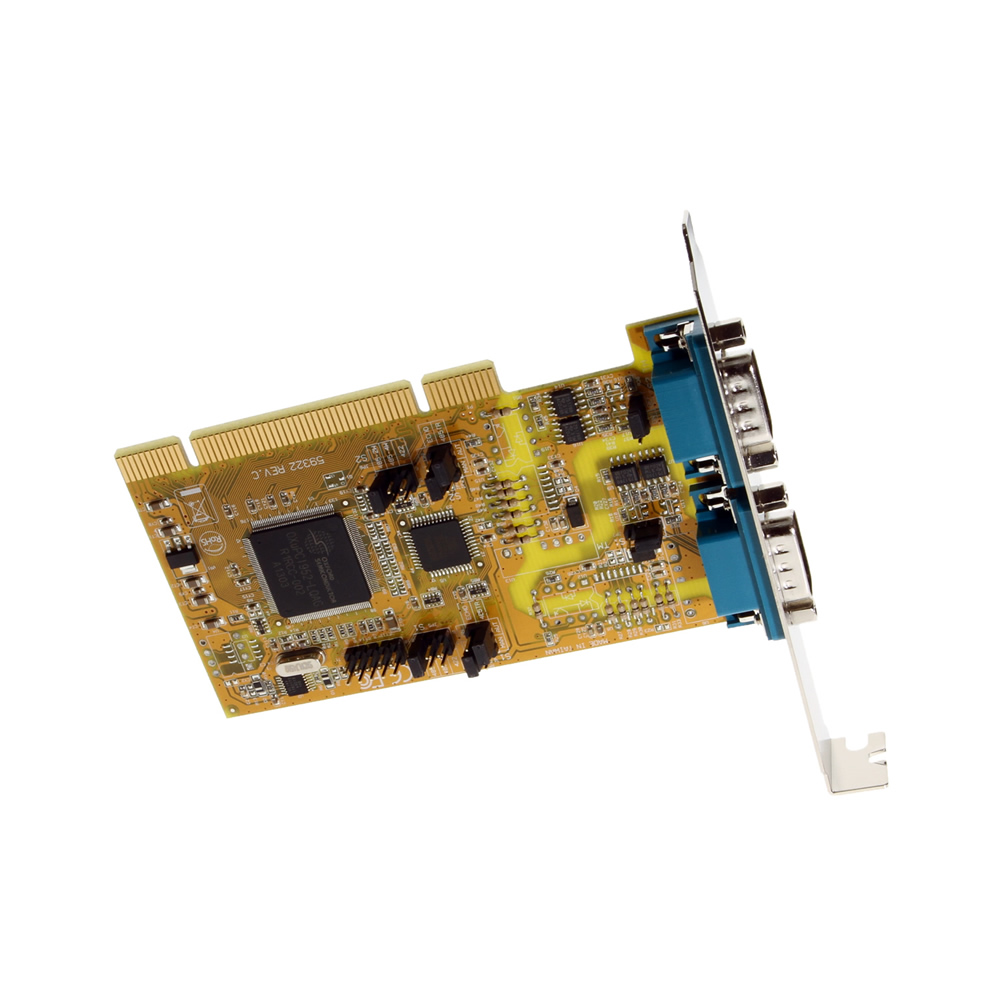

2 Port PCI RS422/485

The SG-PCI2S422485 to PCI RS422 /485  card is designed for your PC, workstation, thin client, or server to provide instant 2 Port PCI RS422 /485 Serial port expansion via the PCI bus once installed. The 2 Port PCI RS422 /485 card can be installed in any available PCI Bus slot in your system.

Also available from the following online retailers:

The SG-PCI2S422485 is compatible with new and legacy RS422 /485 devices. It is easy to install and use with its plug-and-play feature. It provides the scalability to quickly adapt to new serial technologies. The complete product line offers many choices to help you to expand and allow your network to grow with your requirements.

With the 2 Port PCI RS422 /485 card Plug-and-Play feature and drivers, simply follow the instructions of the Installation Wizard, then you are done. You don’t have to deal with I/O address, IRQ jumpers, DMA and others when you are connecting devices to your computer. The System will recognize the PCI device and install the drivers automatically. The SG-PCI2S422485 is an ideal solution for your expanding hardware applications.

 Additional Features & Specifications:

System

• For 32-bit 33/66MHZ PCI Bus Systems

PCI Interface

• Fully PCI Bus Specification 3.0 compliant

 Serial Ports

Two DB9-male RS422 / 485 Connectors, the key benefits are:

• Connector: 2 DB9 Male Connectors
• Interface: 3 modes are selectable: 4-wire RS-422 (TXD+/-, RxD+/-). 4-wire RS-485 (TxD+/-, RxD+/-). 2-wire RS-485 (Data+/-)
• Parity: None, Even, Odd
• Data bits: 5,67,8,9 bits Data Frames
• Speed: up to 921.6Kbps
• Terminator: 120 OHM, can be Enabled/Disabled by Jumpers
• ATTA^TM: Auto RS485 Transmitter buffer direction control by the ATTA^TM Hardware. Guarantee Fast Turn Around the Transceiver.

I/O Hardware

• Two DB9-male Connectors

OS Support

• Windows 10, 8, 7, Vista, 2008, 2003, 2000, XP, NT, Me, 95/98, and Linux

Environmental Specifications

Operating Temperature: 0 to 55°C (32 to 131°F), 10% to 90% relative humidity (non-condensing)

Storage Temperature: -40 to 75°C (-40 to 167°F), 5% to 95% relative humidity (non-condensing)

Form Factor

• 4.72” x 2.53” (12.00cm x 6.45cm)

Product Specifications
