12 Port USB 2.0 Type C Charging Hub 3 Amp Per Port

Introducing the 12-Port USB Type-C Charging Hub

Maximize your efficiency with Coolgear’s 12-Port USB Type-C Hi-Power Charging Hub, designed to charge and sync up to 12 Type-C devices simultaneously. Perfect for high-demand environments like classrooms, business offices, or even emergency management centers, this hub ensures a smooth, reliable charge for Chromebooks, tablets, and smartphones. Its robust design and advanced safety features make it a dependable solution for large-scale charging stations.

A similar charging hub was previously utilized by the Pennington County Emergency Management Center in South Dakota, where it played a critical role in device management for rapid response scenarios. Read more here.

Key Features and Benefits

• Versatile Device Support: Charges and syncs USB Type-C devices including Chromebooks, tablets, and smartphones.
• High Power Output: Each port delivers up to 5V 3A, ensuring efficient charging for a variety of devices.
• Expandable Connectivity: Connect up to 48 devices by cascading three additional units for large-scale operations.
• Sync/Charge Mode Switching: Switch modes easily by connecting or disconnecting the host port.
• Green Energy Function: Automatically powers down when all devices are fully charged, helping conserve energy.
• Advanced Protection: Equipped with over-current, short circuit, and over-temperature protection to ensure safe operation.
• Efficient Cooling System: Auto Start/Stop cooling fans activate when temperatures rise and shut down when conditions normalize, ensuring optimal performance.
• Surge and ESD Protection: Each port features ±15kV ESD and surge protection to safeguard connected devices.

Quick Specs

• Supports Downstream Facing Ports (DFP).
• Compliant with USB Spec. 2.0 / USB Type C Spec 1.2 & USB Battery Charging Spec 1.2.
• Provides up to 5V 3A output current on each port; Supports iOS, Android devices.
• Can act as a laptop or Chromebook charging station with a slower charging rate than smaller devices.
• Charging Chromebooks, Tablets, and Cell phones from 0%–100% will take on average 2-4 hours.
• Extends up to 48 USB Type C devices by connecting cascading ports with another 3 units.
• Enables Sync/Charge mode switching upon manually connecting or disconnecting the host port.
• Enables Green Energy function (ECO Mode) automatically shutdown the hub when all devices are fully charged at Charge mode.
• Supports Over-Current Protection & Short Circuit Protection on each port.
• Over Temperature Protection: if the unit’s temperature exceeds safe operating conditions, it will cut off output current immediately. As a visual indicator, all 12 LED ports will start blinking.
• Enables auto Start/Stop function for cooling fans. If the board’s temperature reaches high-temperature settings, the cooling fans will start up automatically. Once the board’s temperature has reduced below the threshold, the unit will turn off the fans automatically.
• Supports ±15kV (air), ±8kV (contact) ESD protection on each port.
• Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port.
• The rear fans spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours.

Package Contents:

• USB 2.0 12-Port Type C Hi-Power Charging Hub

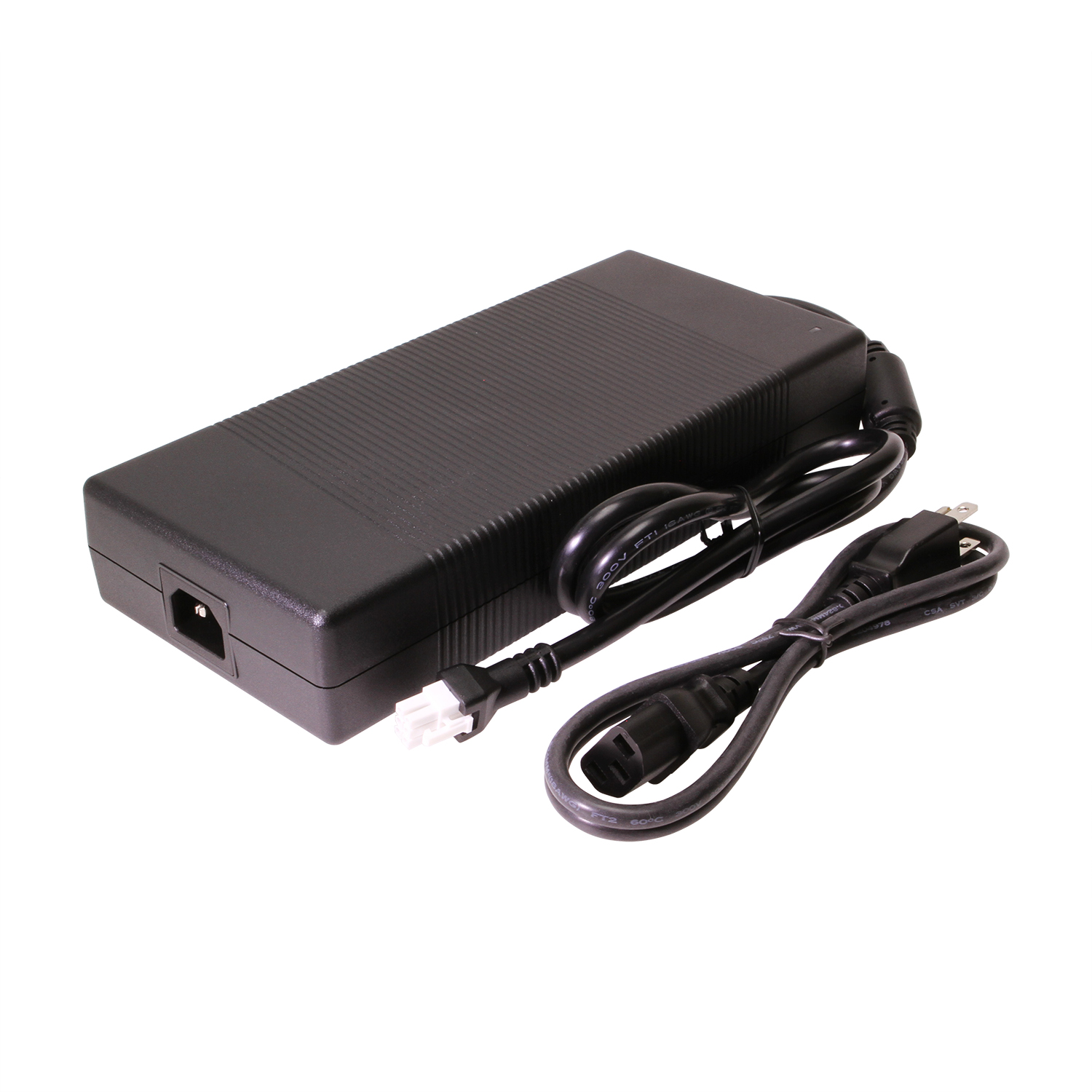

• Power supply with power cord
• USB 2.0 Type C male to male cable
• Mounting brackets with screws
• User manual

*Surface Mounting screws not included.

Use Cases:

Product Specifications

Optional Accessories

The 12 port USB-C Charging Hub has certain accessories that work with it. These accessories are what you can order if needed.

USB 3.1 Type C to Type C 3A 1 Meter Power Delivery Cable

3FT. Type-C Power Delivery Cable USB Type-C to C power delivery cable for USB-C devices requiring a power delivery method through USB Type C ports…

Model# CM-CC1M3A

$9.95

In stock

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
