Nest Cam IQ Active POE to USB Type C PD adapter -extend up to 100M with 22 watts of power

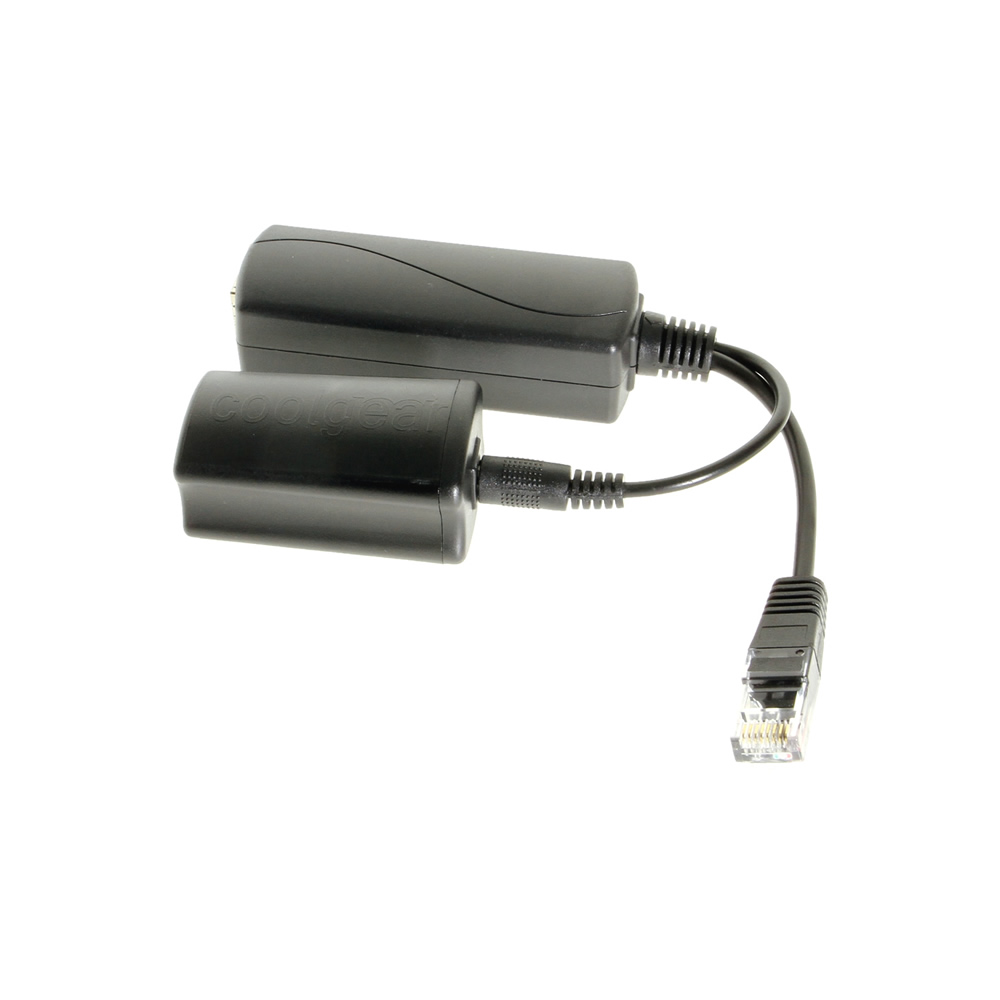

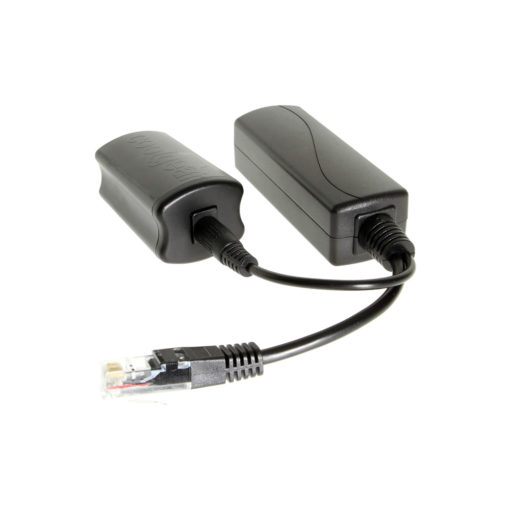

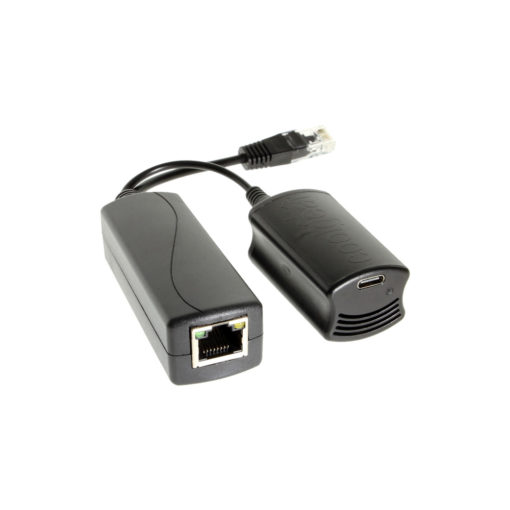

PoE Splitter to 22W Type-C Output

An easy way to achieve power output through to USB Type-C devices. This PoE splitter to 22W power pod kit is simple to use with your PoE injector power source. Connects to any USB-C device requiring up to 22W of power for charging or powering up for use.

Simple integration with USb type-C devices
Carries power through PoE up to 100 meters (Cat6 cable not included)
Apply to security cameras such as Nest Cam IQ / Outdoor and other devices
Can be used with iPhone 8, Pixel and Pixel 2, Google Wifi, Nestcam, iPad Pro 12.9”, Samsung S8, Eero Pro, and many others.

$43.95

EOL - Discontinued

Model No. CG-UCPASSPL

Description

This product is no longer available. It has been replaced by the CG-POE15VPDv2.

Power over Ethernet (PoE) to Type-C Devices with True AC/DC Conversion

Power over Ethernet is the process of passing electrical power along an Ethernet cable to a device needing power. Used with the PoE Splitter is a true AC to DC converter adapter, Coolgear’s 22W DC to USB PD Power Pod adapter. When an Ethernet cable is connected from its power source, then to the PoE Splitter, it forms an electrical flow.

The output of the splitter is connected to the 22W AC to DC USB-PD Power Pod. The AC to DC converted flow can now continue to the USB-C device. The PoE Splitter allows up to a 100 meter connection from its source. The USB-PD Power Pod supports PD profiles; 5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A.

Together, this PoE system lets you power USB-C devices from over 300ft. away without the need for modification to your infrastructure. The PoE Splitter & power delivery system will work with any device that excepts power through a Type-C port.

PoE Power Delivery System Features

Works with Cat 5, Cat 5e, Cat 6, Cat 6a. STP or UTP cables.
True AC to DC conversion power conversion.
Powers USB devices from up to 100 meters away.
Supports PD Profiles 5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A.
Very easy to travel with where USB PD is needed.
Can be used with iPhone 8, Pixel and Pixel 2, Google Wifi, Nestcam, iPad Pro 12.9”, Samsung S8, Eero Pro, and many others.
Supports Over Voltage Protection, Under Voltage Protection, Over Temperature Protection.
Support BC1.2, Apple, Samsung.
Power Pod 18-24V DC, Output: USB-C Female.
Kit Supports IEEE802.3af PoE with Active Splitter (included)
