10 Port USB 2.0 Hub w/ ESD Surge Protection Screw Locking Ports

Model No. CG-10U2AML

Industrial Grade | +5~24V DC Input | Surge Protection | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

  • Protect Your Equipment: The 10-port USB 2.0 features 15kV ESD protection to keep your connected peripherals safe.
  • Fast Speeds: This USB hub is 2.0 compliant, ensuring fast 480Mbps data transfer speeds. It supports high speed and full speed which enables it to be compatible with USB 1.1.
  • Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 10-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
  • Secure Connections: Screw locking ports help ensure reliable connections.

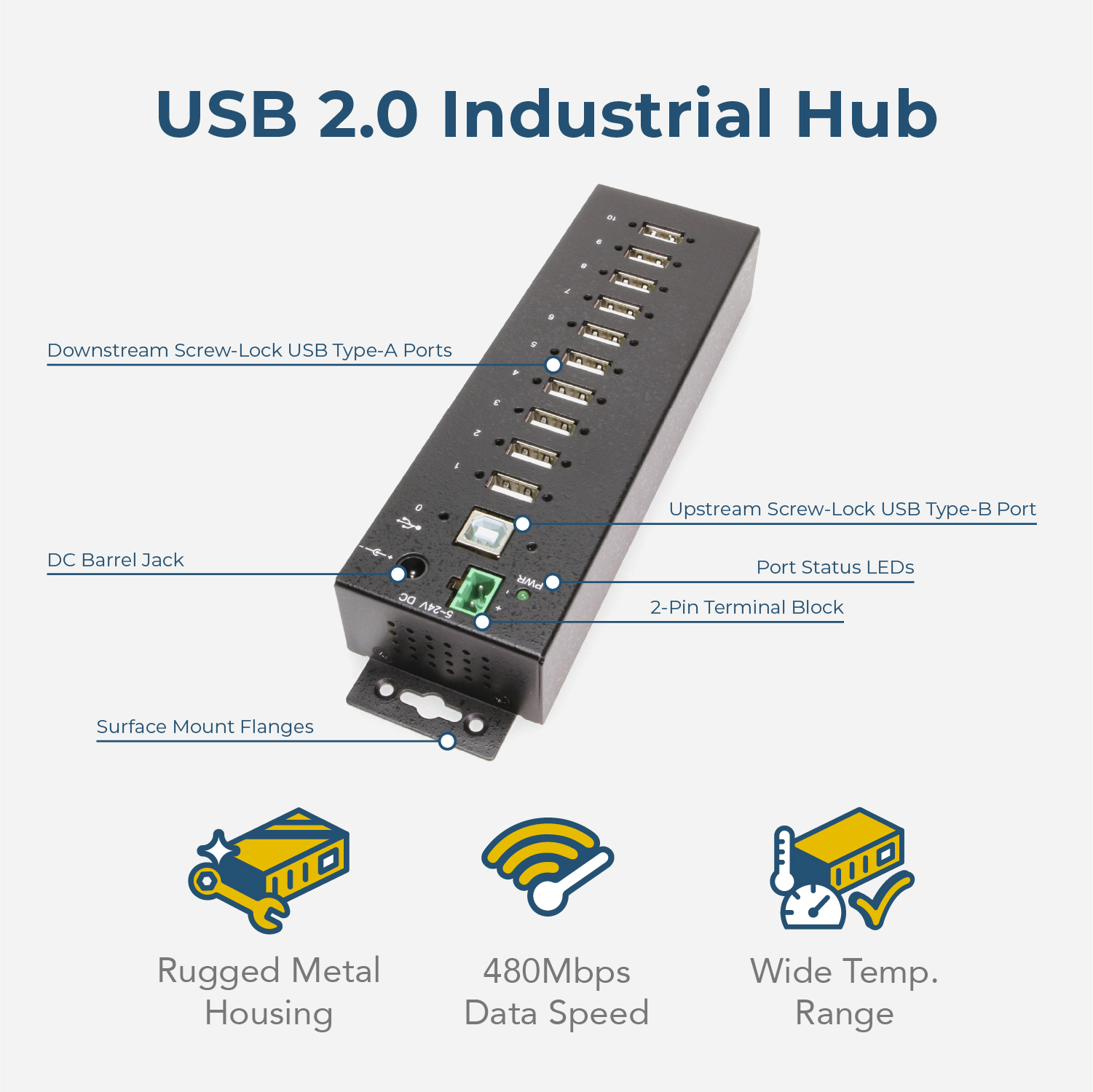

  • Upstream: 1 USB port, Type B connector, Screw-lock type
  • Downstream: 10 USB ports, Type A connectors, Screw-lock type
  • Power Connector: 2-Pin Terminal Block, DC Barrel

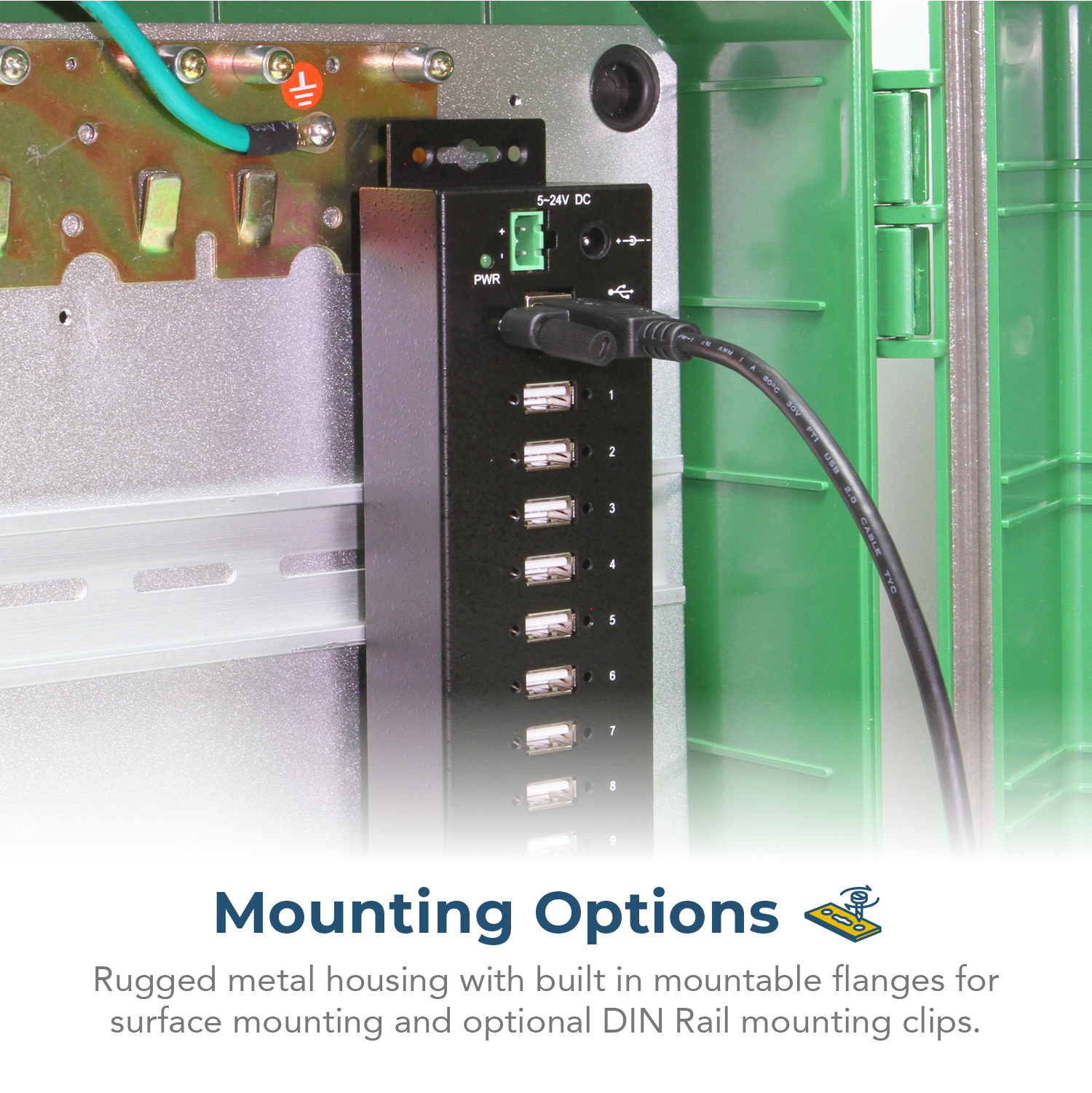

  • Mounting Options: Wall, Surface, and DIN Rail

$89.99

Bulk Pricing

Model No. CG-10U2AML

In stock

Also available from:

Volume Pricing

Units Discount Price
1 - 4 $89.99
5 - 11 2 % $88.19
12 - 24 5 % $85.49
25 - 49 7 % $83.69
50+ 10 % $80.99
Need some help? Contact us.

Product Documents

Quick Links:

Description

Introduction

Introducing the CG-10U2AML, a versatile 10-port USB hub built for industrial and commercial environments. This industrial USB hub expands your USB connectivity with 10 downstream USB 2.0 ports, offering reliable performance at speeds of up to 480Mbps. Designed for durability and flexibility, this mountable USB hub features screw-lock connectors for secure connections and multiple mounting options, including wall and DIN rail mounts. With a wide +5~24V DC input range, it ensures dependable power delivery in demanding settings, making it an ideal solution for USB expansion in critical applications.

Key Features and Benefits

  • USB 2.0 Compliance: Supports data transfer rates of 480Mbps, 12Mbps, and 1.5Mbps, compatible with both USB 2.0 and legacy USB 1.1 devices.
  • 10-Port USB Expansion: Provides 10 downstream Type-A ports with individual Transaction Translators (TT) for seamless connectivity with modern and legacy peripherals.
  • Industrial-Grade Design: Rugged construction with 15KV ESD protection ensures reliable operation in challenging environments.
  • Flexible Power Options: Operates in self-power mode with a wide +5~24V DC input via 2-pin terminal blocks, accommodating various industrial setups.
  • Secure Connections: Equipped with USB screw-lock mechanisms on each port to maintain stable connections under vibration or movement.
  • Mountable USB Hub: Offers wall and DIN rail mounting options for versatile installation in industrial and commercial spaces.
  • Broad Peripheral Support: Compatible with keyboards, mice, monitors, scanners, printers, and more for efficient device management.

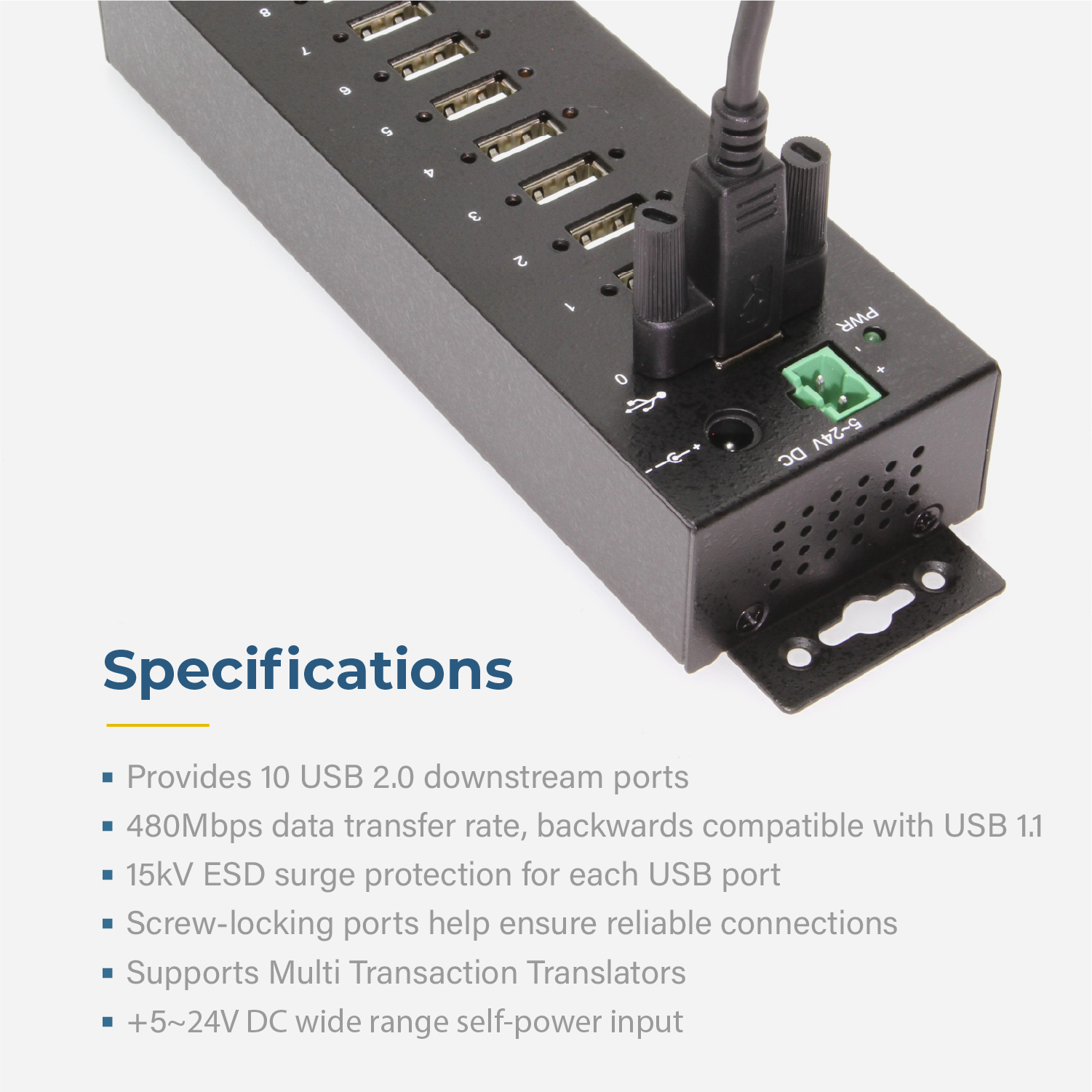

Specifications

  • System Compatibility: Works with USB 2.0 and USB 1.1 ports.
  • Connectors: 10 external USB 2.0 Type-A ports and one USB 2.0 Type-B upstream port.
  • Power Input: Supports a 2-pin terminal block for external power input from +5~24V DC sources.
  • Environmental: Operates within 0 to 60°C (32 to 140°F) and 5-95% humidity.
  • Dimensions: 7.78”(L) x 2.18”(W) x 1.22”(H) (197.7 x 55.5 x 31.0 mm).

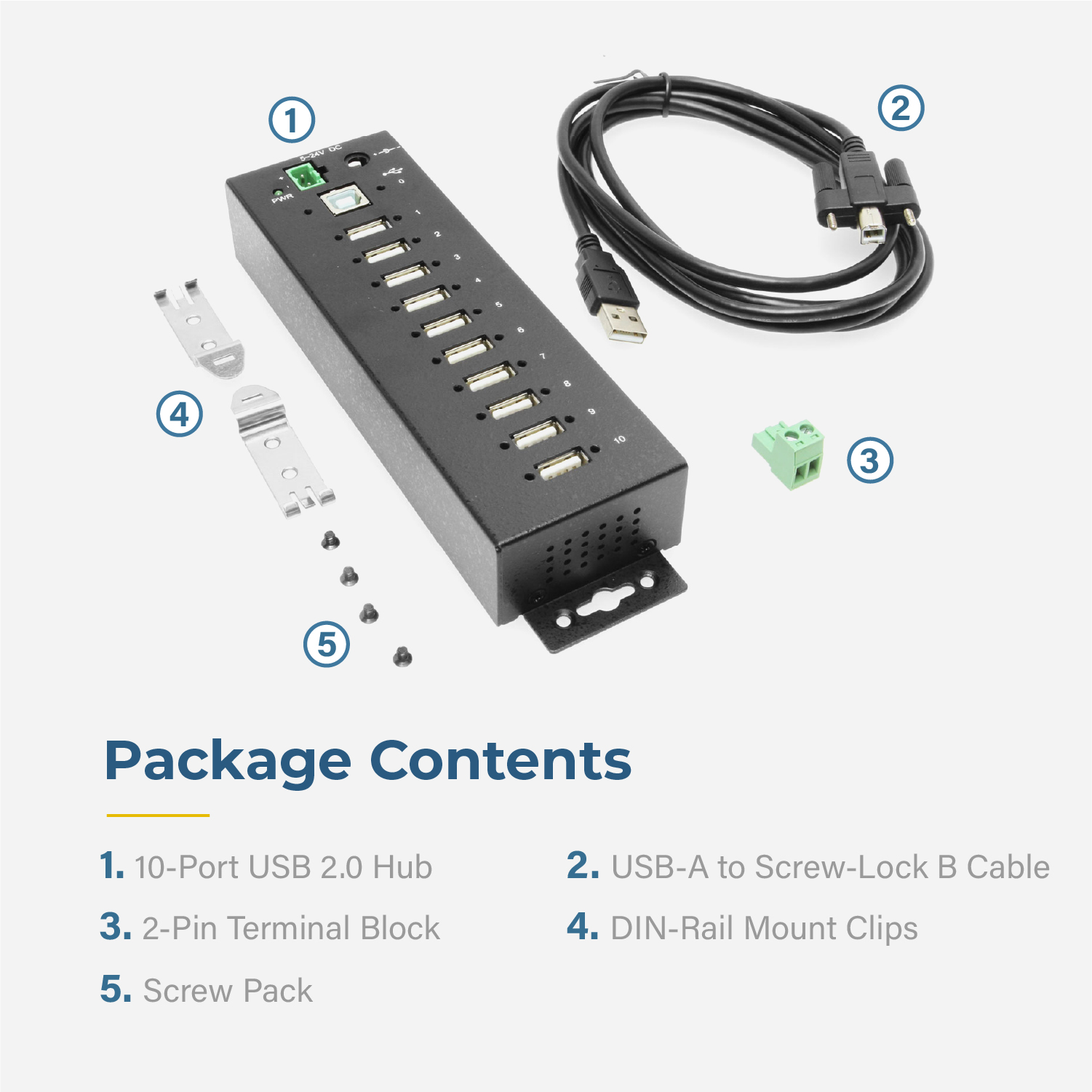

Package Contents

  • CG-10U2AML 10-Port USB 2.0 Hub
  • USB-A to screw-lock USB-B cable
  • 2-pin terminal block

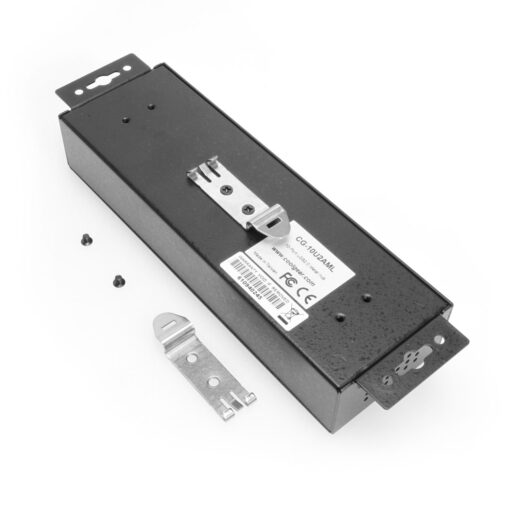

  • DIN rail mounting clips
  • Screw pack

Note: Surface mounting screws not included.

Accessories & Replacement Parts

Accessories & Replacement Parts

12V – 4A External Power Supply with DC Barrel for Coolgear USB 2.0 and USB 3.0 commercial or industrial Metal Hubs (find a full compatibility…

Model# CG-12V4A-PS

$29.99

In stock

Specifications

Product Specifications

Power
Input Voltage

+5~24V DC

Power Source

2-Pin Terminal Block, AC Adapter Not Included, DC Barrel Jack 2.5mm ID × 5.5mm OD

Idle Consumption

0.75mA @ 12V Terminal Power, 0.76mA @ 24V Terminal Power, 46.42mA – Bus Power

External Power Required

No

Compliance
Country of Origin

Taiwan

Physical Characteristics
Color

Black

Item Dimensions (L × W × H)

7.78 × 2.18 × 1.22 in.

Item Weight

0.731 lbs.

Mounting Style

Surface / Wall Mount, Din-Rail Mount

Ports

10 USB Ports

Material of Construction

Galvanized Steel

Screw Lock Compatible

Yes

What's in the Box
Package Contents

2-Pin Terminal Block, DIN Rail Clip(s), Hub, Screw Pack, USB-A to Screw Lock USB-B Cable

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Environmental
Operating Temperature

0°C to 60°C (32 to 140°F)

Humidity

5% ~ 95% (non-condensing)

Product Information
Warranty

1 year from date of purchase

Hardware
LED Indicators

Power

Downstream USB Ports

10 Type-A Female USB

Upstream USB Ports

1 Type-B Female USB

Performance & Safety
ESD Protection

15KV Surge Protection for Each Port

Max Data Transfer Rate

480Mbps

Other Data
UPC

045079163997

USB Interface

USB 2.0

Series

Weight

1.20625 lbs

Dimensions

9.583 × 6.605 × 2.448 in

UPC: 045079163997
Relevant Articles & F.A.Q.

Relevant Articles

Product F.A.Q.

View frequently asked product questions below. Still need help? Reach out!

  • Can the hub be used without a power supply?
    In some cases, yes. USB peripherals that only require low power (i.e. keyboards & mice) can be used without a power adapter. Power in this case is drawn from the host’s USB port.

    When high-power USB peripherals are used, a power supply for the USB hub may be required. In other cases, the USB peripheral may require their own power adapters, in this case, a power supply for the hub may not be required. Without ample power though, the USB hub or connected peripherals may not operate correctly. It is recommended to use an included power supply when possible.

  • After waking up from sleep mode, my computer/host no longer recognizes my USB device.
    If the USB device does not function properly after your computer or host has been in sleep mode, it is likely that Windows turned off the USB Root hub in order to save power.

    To prevent this, follow the steps below (depending on your operating system).

    Windows 10 / 8

    1. On your keyboard, press the Windows key + X and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows 7 / Vista

    1. Click the Start button and select Control Panel.
    2. Click Hardware and Sound, then click Power Options.
    3. Click Change plan settings for the plan you want to change.
    4. Click Change advanced power settings.
    5. Click the plus sign (+) next to “USB settings” and “USB selective suspend setting” to expand the options and change the setting to Disabled.
    6. Click OK to apply the setting.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

    Windows XP

    1. On your desktop, right-click the My Computer icon and select Properties.
    2. Click the Device Manager tab.
    3. Expand Universal Serial Bus controllers by clicking the arrow to the left of it.
    4. Right-click the first USB Root Hub device and select Properties.
    5. Click the Power Management tab.
    6. Clear the box next to Allow the computer to turn off this device to save power.
    7. Click OK to apply the setting.
    8. Repeat steps 4-7 for any remaining devices in the Universal Serial Bus Controllers section with “Root Hub” in the name.

    Note: You may need to disconnect and re-connect your USB device after applying these settings.

  • The hub is properly hooked up, but is not functioning correctly. What can I do?
    Testing all setup components is the best place to begin troubleshooting. To determine the source of the issue, individually test your:

    • USB Cable by using it in another setup, or trying another cable.
    • Host USB Port by connecting another device or thumb drive.
    • Connected Peripherals by connecting directly to the host.

    Moving on to troubleshooting the hub itself. Attach a USB peripheral. The USB hub itself will not appear in hardware listings on your host’s system. USB devices connected however, will appear when connected. If the connected device is still not being found, try:

    • Installing the required drivers for the USB peripheral.
    • Install the most recent drivers for the USB controller and/or motherboard chipset.

    USB hubs do not require drivers or software.

    Troubleshooting the desired USB peripheral may be in order. If the peripheral is still not being recognized, attempt:

    • Attaching external power to the peripheral, if required.
    • Confirming if the peripheral functions on a standard USB port.
    • Testing if basic USB peripherals work, such as keyboards or mice.
  • How can external power be connected to the industrial USB hub?

    External power is supplied by connecting to the terminal block located on the hub. For when an external power adapter is required check out the Accessories & Replacement Parts section on this product page. To view all of our hub accessories and power supplies, visit the category here.

    To determine the power requirements, the equation to use is P = 5 * I * N, where:

    P is the power wattage.

    is the USB port voltage.

    I is the current of the USB port in Amps (USB 2.0 is 0.5A, USB 3.0 is 0.9A.

    N is the number of USB ports.



    As an example using the equation, a 4 port hub would reflect a minimum wattage of 18 watts.

    Knowing the minimum requirement, a proper power adapter can be chosen. In this case the voltage of a power supply should be within 7 to 24 or 7 to 40 Volts DC, depending on the specifications of the USB hub. Also, the power supply must convert AC to DC (no AC output).

    Power supplies often come with a voltage (V) rating and an amperage (A) rating. To determine the current in amps, use I = P / V, where the following is true:

    I is the current of the power supply.

    P is the calculated power of the hub.

    V is the chosen voltage of the power supply

    Continuing the example, the 4 port hub requires 18 W and the power supply you choose is 12V, the current of the power supply would be I = 18/12, I = 1.5A.



    Our full collection of power adapters can be found here.
